Division V3.2 Full CAD Assembly (July 2022)

DIGITAL DOWNLOAD CAD + BOM + DXF FILES

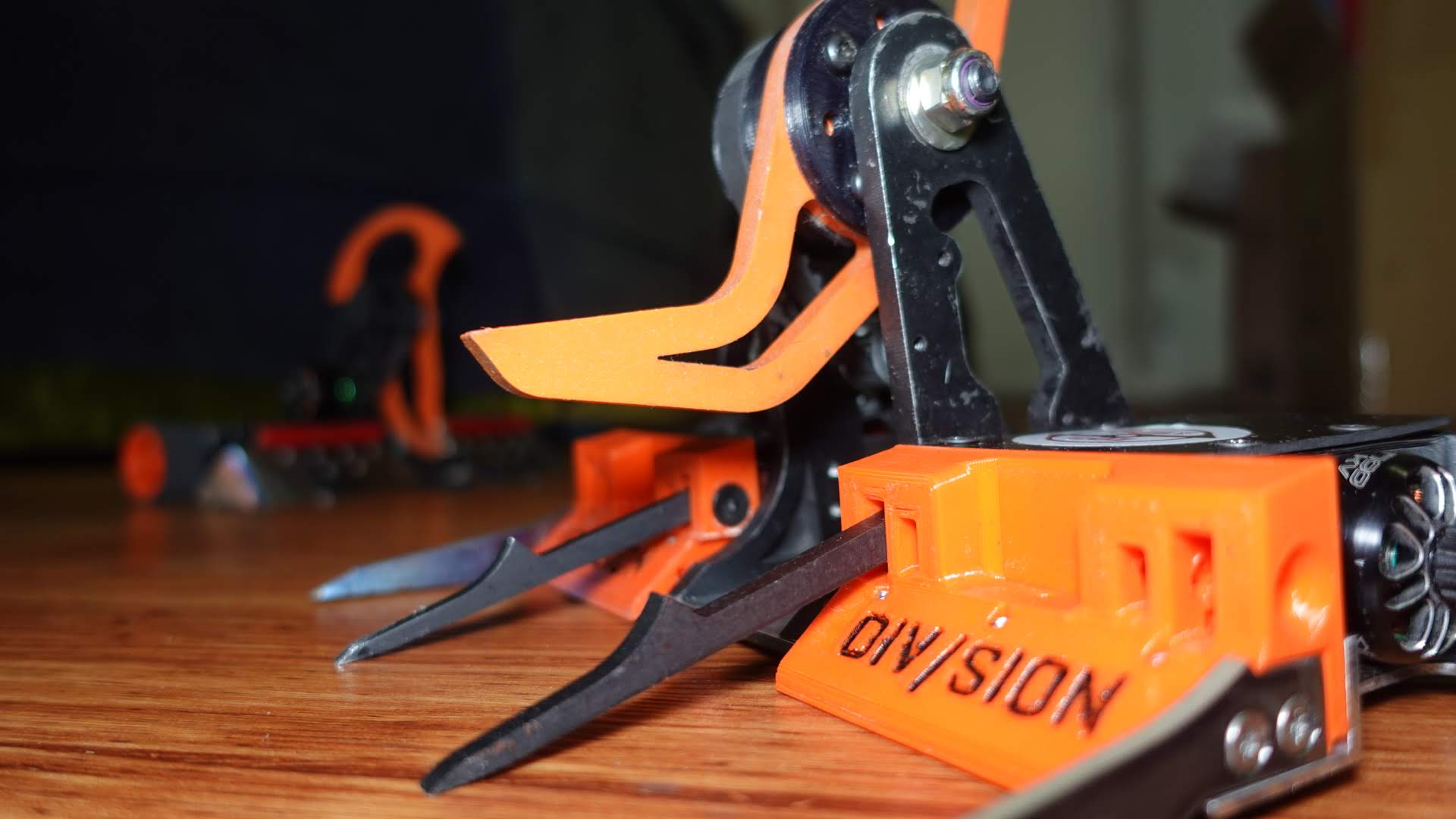

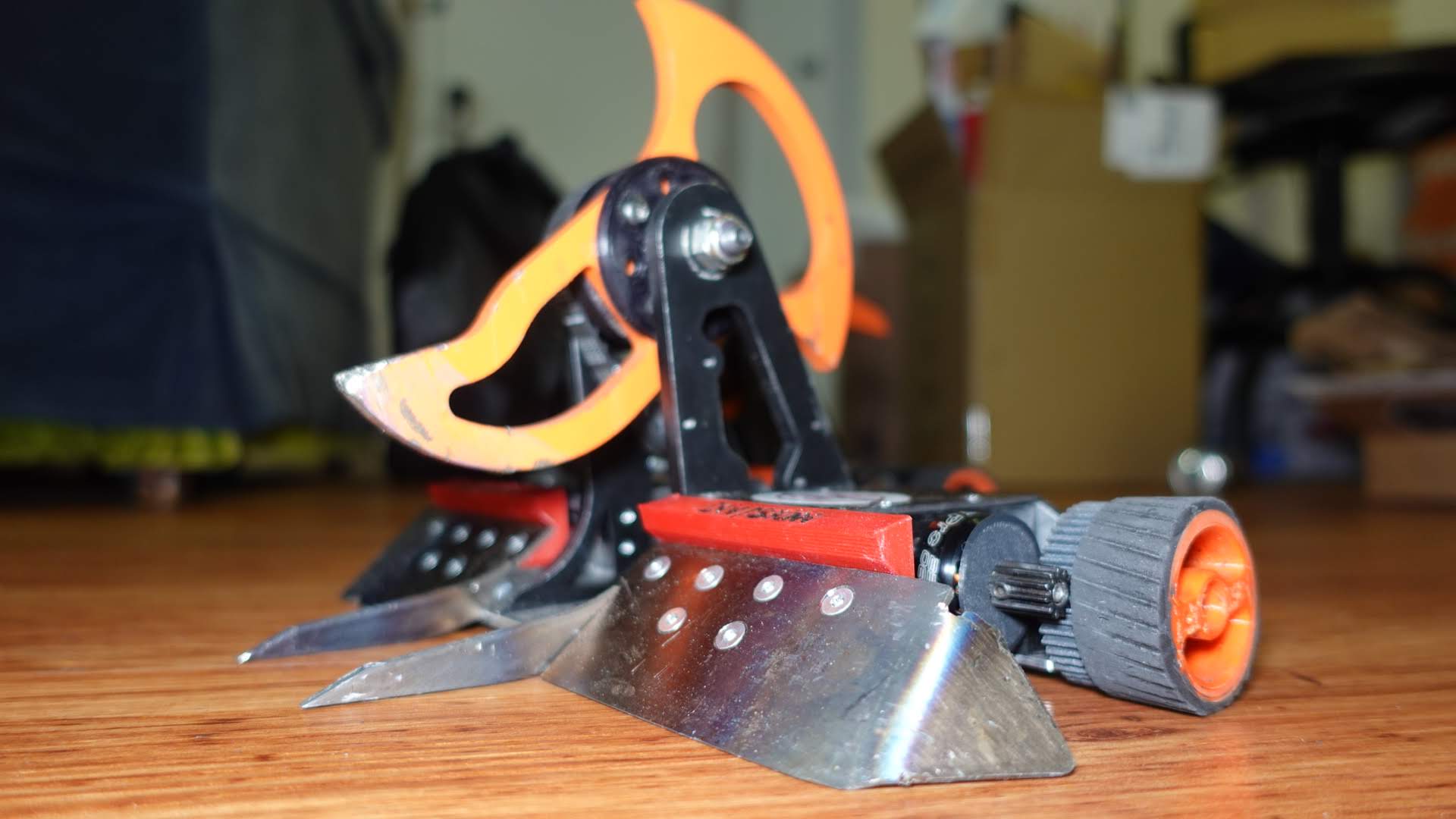

This is a full CAD assembly (not a physical product) for Division V3.2. The prior version of the robot fought at the April 2022 Norwalk Havoc with 6 wins, placing 7th overall out of 60 beetleweight robots. The upgraded V3.2 (July NHRL) has a much more robust drivetrain design that is more mechanically durable and more consistent.

WARNING: This robot is incredibly dangerous and difficult to drive.

I strongly recommend using this as a learning tool to help inform design choices for your own design. If cloned outright you must take extreme safety precautions when testing the robot, and never spin up the weapon outside of a suitable test box or enclosure.

This is not a kit. There are no instructions provided. This should absolutely not be your first-ever combat robot. This is intended to be a learning tool to show proper CAD/mechanical design techniques.

Details

If you need substantial help putting this design together, you may want to start with something simpler first!

Take a look at every single part of the bot! Detailed BOM is available for free here.

Your purchase will grant you:

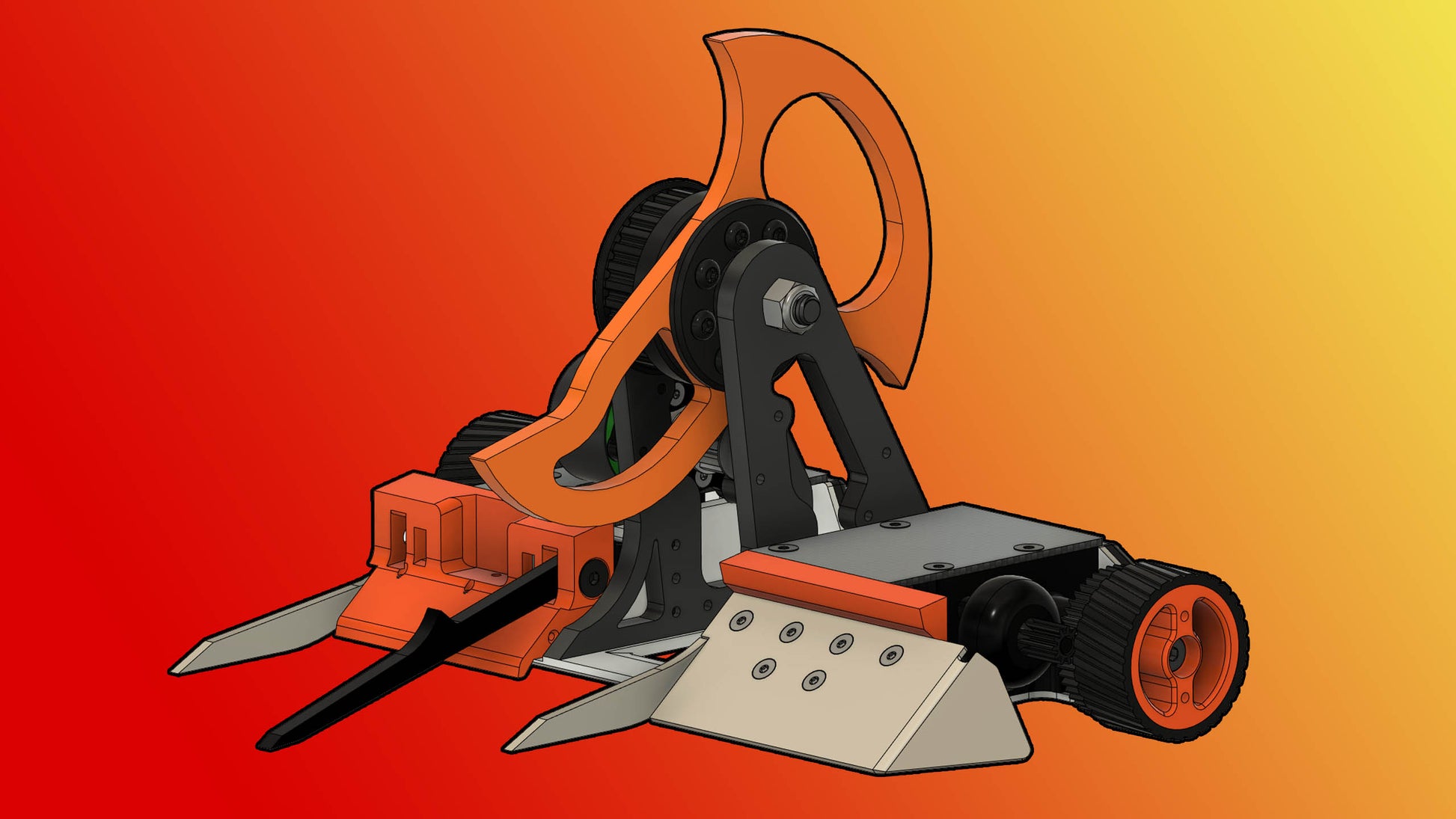

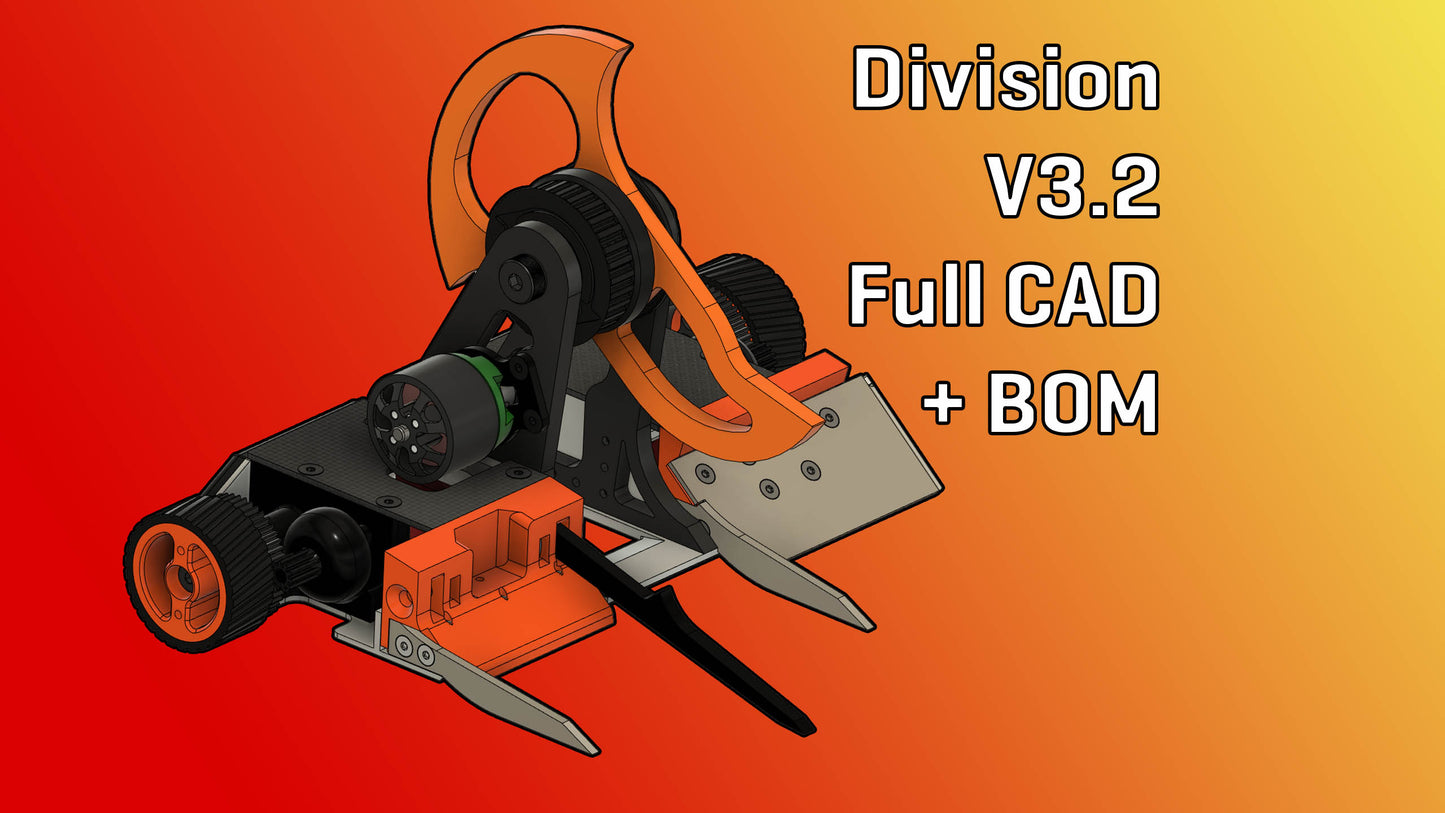

1. Access to the full CAD assembly of the robot
2. Lasercutting DXF files ready to shoot off to Send Cut Send
3. Billet chassis STEP file and drawing ready to send off to a CNC fabricator
4. Eternal thanks for supporting Just ‘Cuz Robotics!

If you build a copy of this robot, choose a different name for it! I have intentionally removed DIV/SION from the 3D-printed parts in this assembly for a reason!

The bot is available in pretty much every CAD format under the sun and will work with any CAD program that accepts the universal STEP or SAT filetypes (including Solidworks), plus it is native in Autodesk Fusion 360.

This product is just a CAD model (Computer-Aided Design) - 3D design files that can aid in constructing a robot or part - and not an actual physical product. Nothing will be shipped to you after your purchase.

You may not redistribute this model!

This design/item by Seth Schaffer is not allowed to be redistributed, resold, or re-uploaded by the buyer, regardless of whether or not it has been modified in any way. By purchasing this model you agree that it will not be redistributed or shared for free or for profit by any entity other than Just 'Cuz Robotics.

Disclaimer

Warning: combat robots are not toys! They are extremely dangerous. Click here for a safety video.

Testing a robot with an active spinning weapon should never be done while maintaining a line of sight with the robot. Ideally, you should be testing inside an enclosed box or arena with at least 1/4" thick polycarbonate windows or top to see through, and 1/2” or thicker plywood or MDF construction. Operation (Including testing) outside of a suitable arena or test box could cause serious injury. By purchasing this product you acknowledge that you are responsible for the safe use of this product and that Team Just ‘Cuz Robotics or its employees are not liable for any injuries or damages.
