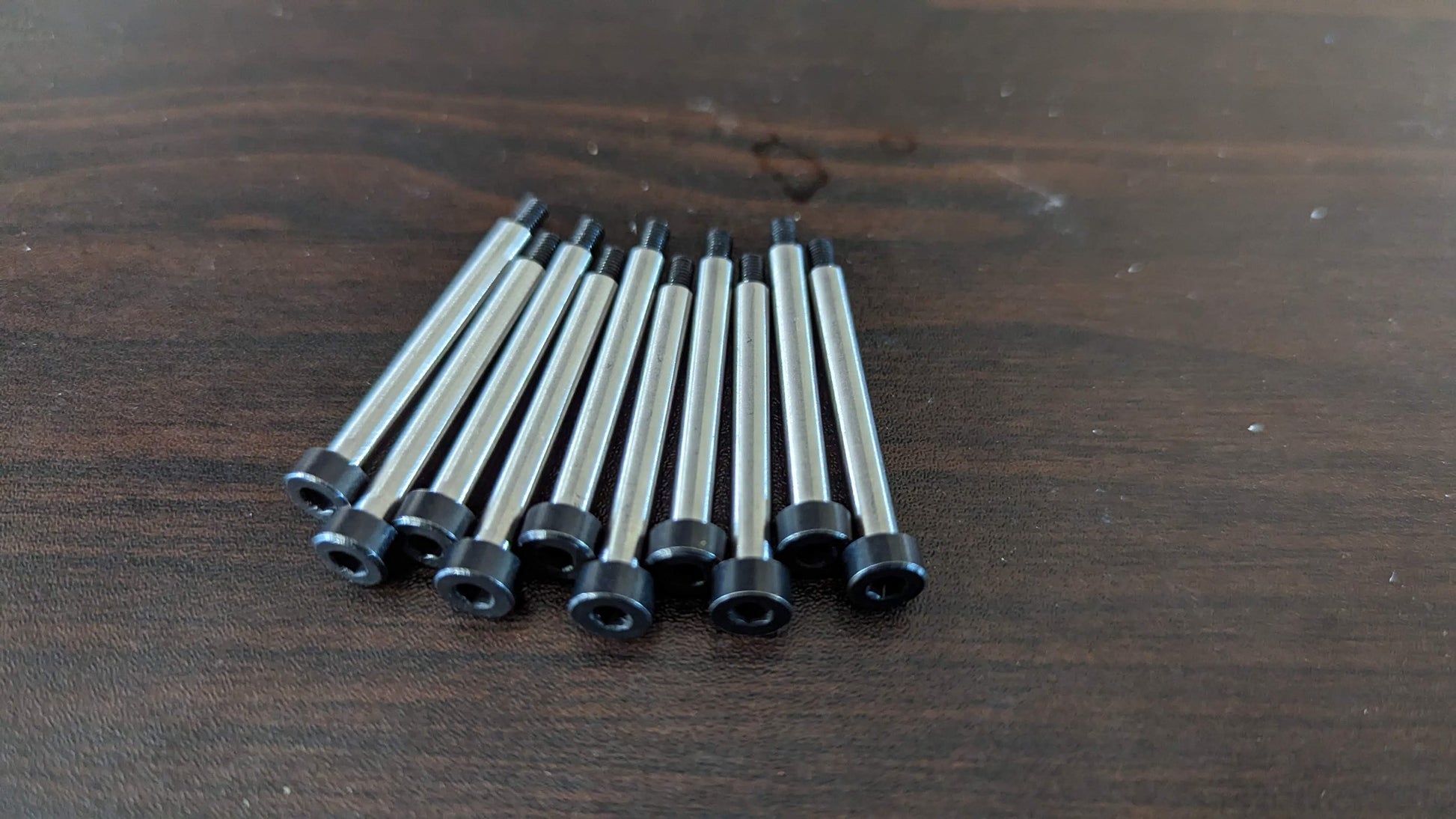

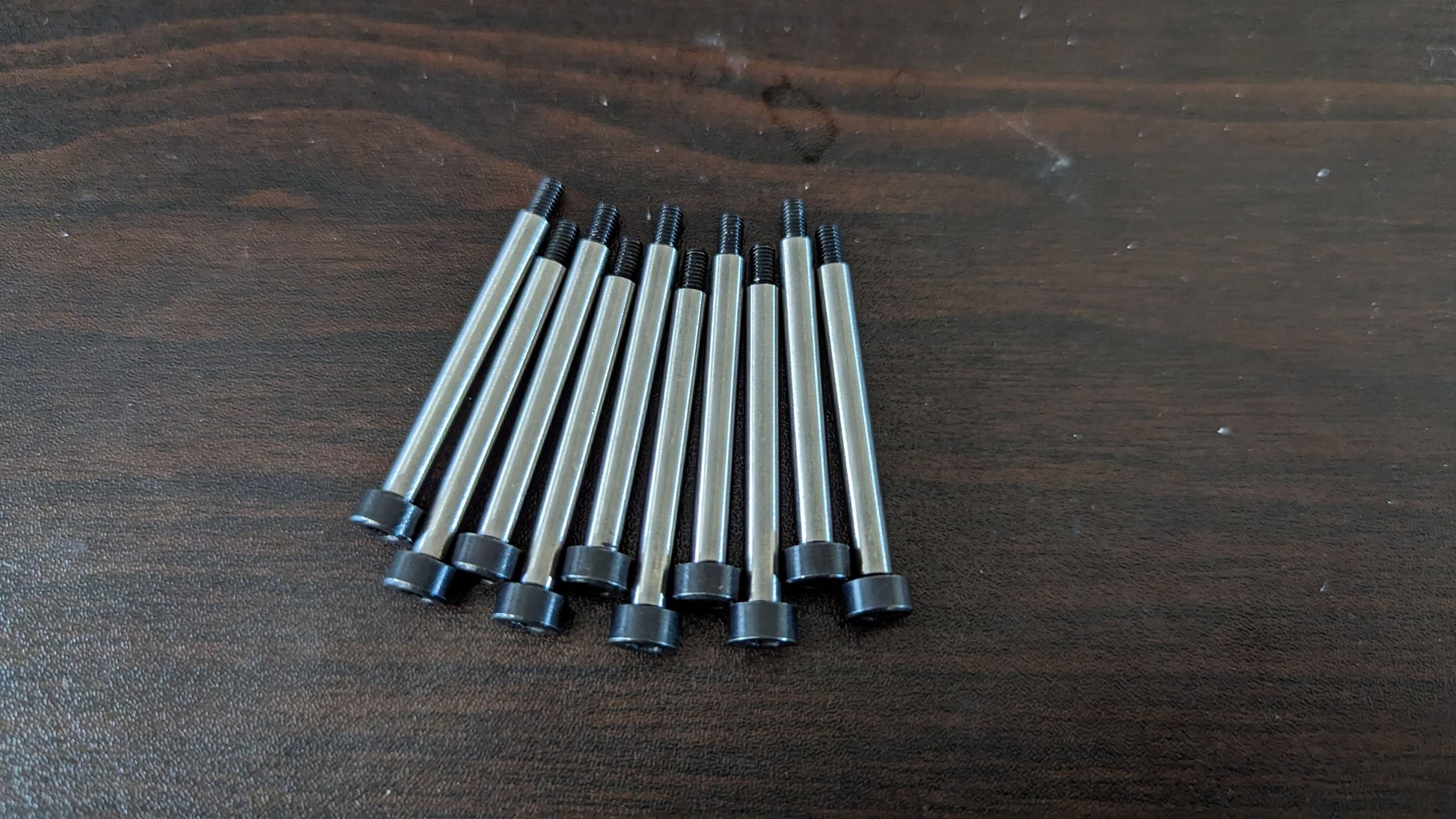

4mm x 35mm Alloy Steel Class 12.9 Shoulder Bolts, 10 Pack
4mm x 35mm Alloy Steel Class 12.9 Shoulder Bolts, 10 Pack
Share
Couldn't load pickup availability
The minimum ultimate tensile strength of the Grade 12.9 Metric Bolts is about 1242 Mpa or 180,000 PSI, making them the highest grade of bolts produced.

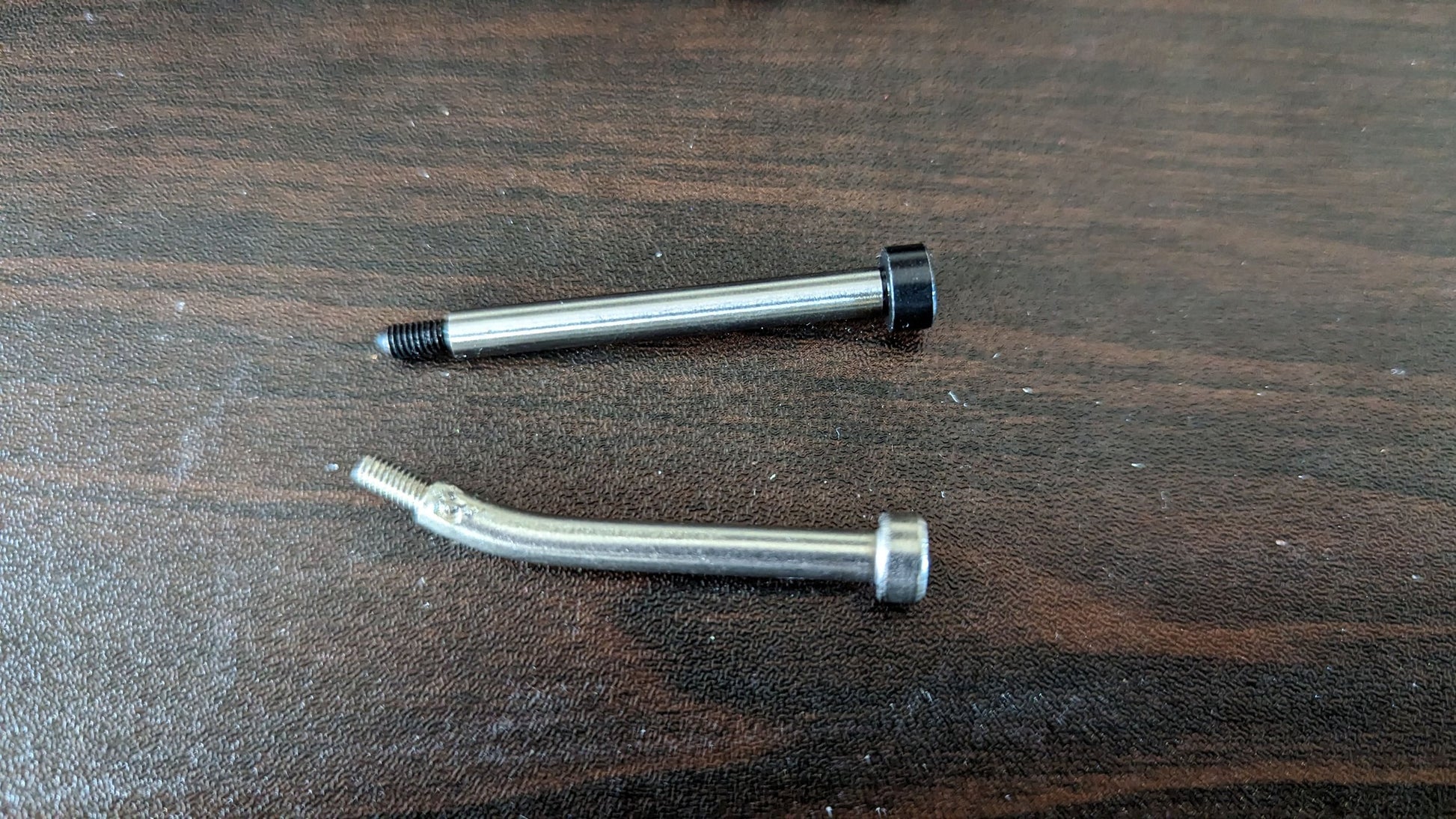

These bolts are a major upgrade compared to the common stainless steel ones you’ll find in this size. They had to be custom ordered in batches of at least 500 as this length is a bit unusual, but the cost is well worth it! These should be about 2.5 times stronger than stainless steel. CAD Here.
These shoulder bolts have a precision ground bearing surface hardened to 39-44 HRC and are perfect for use with 4mm inner diameter bushings, bearings, and more.
- Shoulder Diameter: 4mm (actual 3.95-3.98mm)
- Shoulder Length: 35mm
- Shoulder Surface Roughness: 0.8 micro-meter (32 micro-inch) Ra
- Head Diameter: 7mm max, 6.78mm min
- Head Height 3.5mm max
- Thread: M3x0.5, 6mm length max
- Drive: 3mm Hex
- Weight: ~4.4g (0.156oz) each
I've been using these in my antweights for about a year and they're great! I've never experienced meaningful damage to one. I give them to friends regularly to help beef up their designs.
These shoulder bolts were going to cost $120ish from McMaster Carr for a quantity of 10… they work perfectly
as dead shafts for my antweight shuffler, and I cannot recommend these enough.
Amazingly resilient. I use those for most of my builds and I've only had one bend one me and my bot took quite a a hit to do that.
This was a no brainer, bought these steel shoulder screws right before a tournament to replace 18-8 Stainless Steel shoulder screws. More than double the tensile strength, higher hardness rating, and precision ground to fit in my servo arm these steel shoulder bolts should be a necessity. I managed to last five fights with a single should screw and only left with a negligible bend in the threaded section; screw is still functional.
