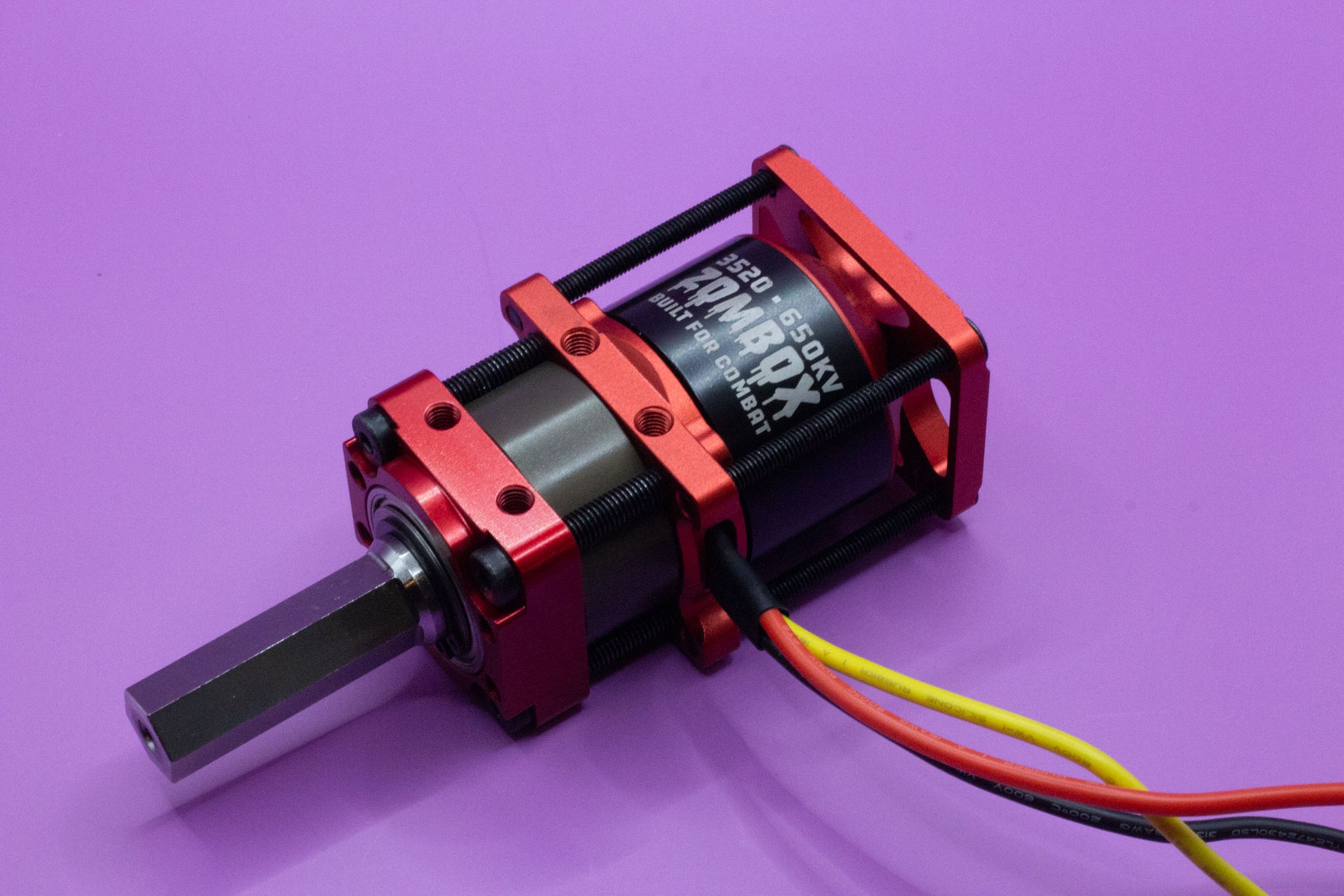

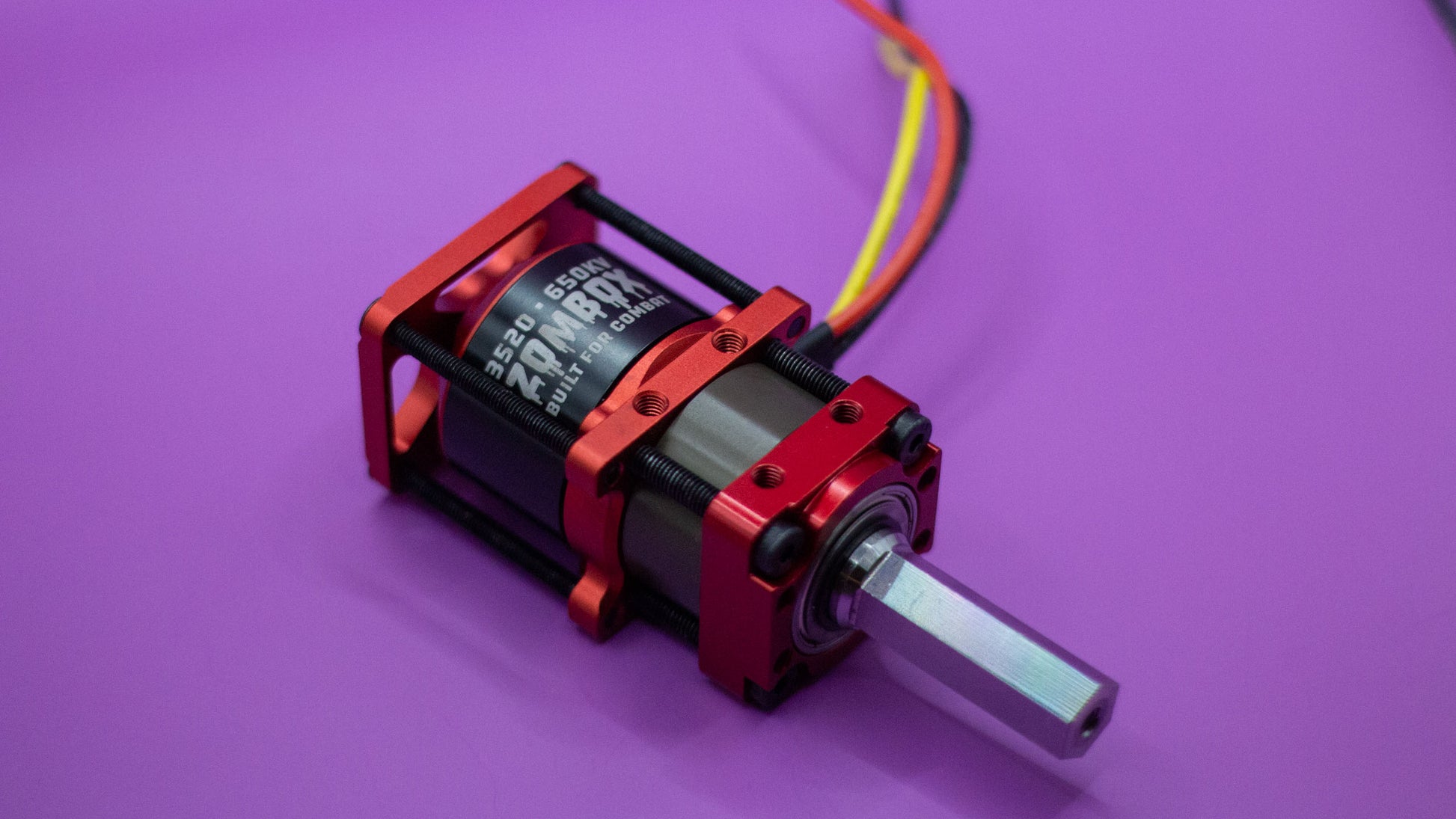

ZomBox - 30lb/12lb 5.8:1 Gearbox & Custom 3520 Motor

Peak Durability for 30lb/12lb Bots!

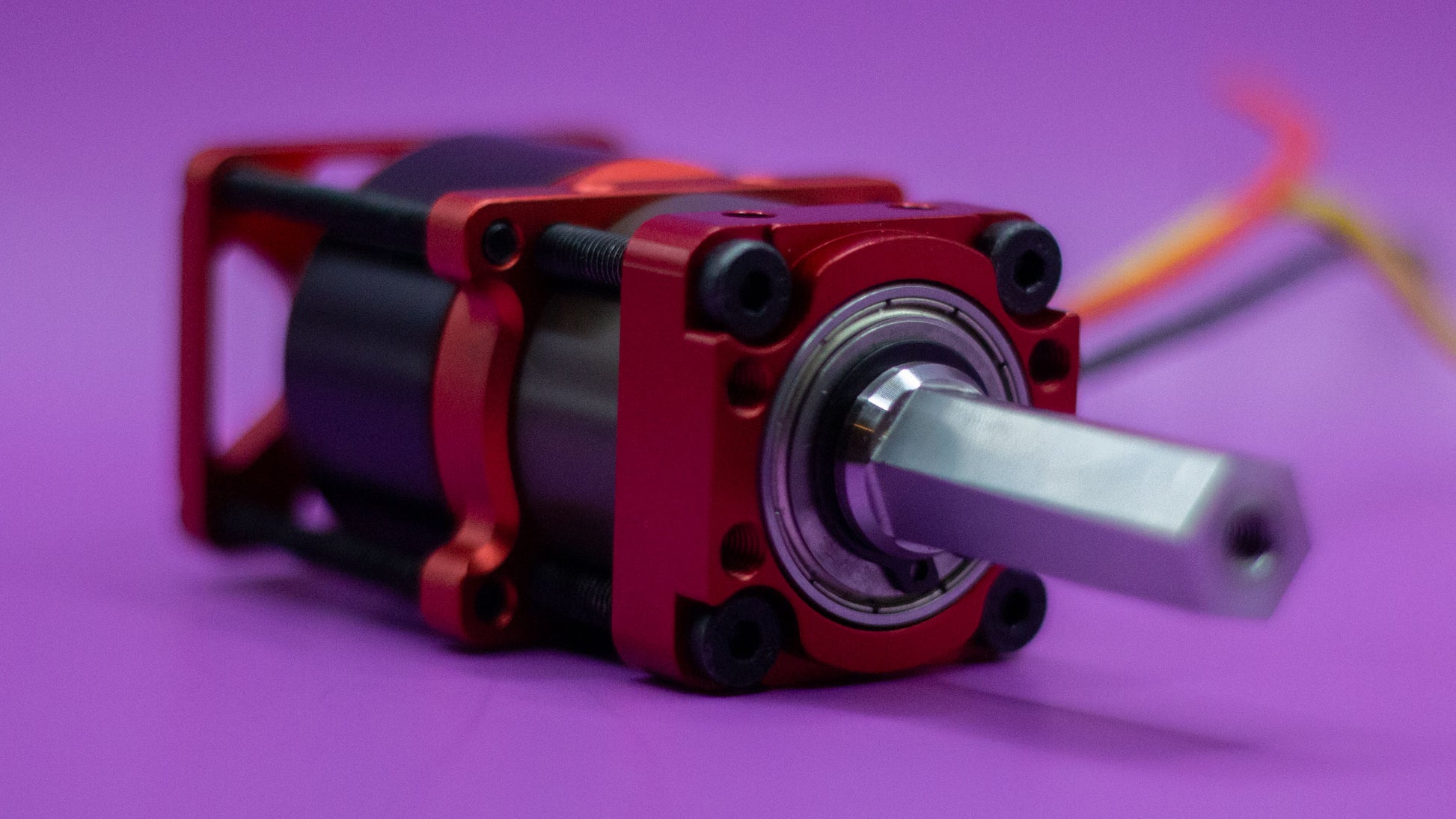

ZomBox is an evolution on our previous BoneBox design, now with a kickass motor that has a rear bearing support, all for the price of a standard high-quality outrunner. ZomBox features huge, solid steel 9mm thick planet gears, mod 0.7, a hard coat anodized aluminum ring gear for maximum strength to weight, and massive 17mm ID dual ball bearings. All supporting a billet carrier 1/2" hex 4140 output shaft. All this under 240 grams. Find a more indestructible drive gearbox, we'll wait...

Designed in collaboration with Brandon from Bone Dead Robotics, this product was essentially born from asking, “What is your dream gearbox for Vorion and Phenomenon?” The result is the most durable drive gearbox on the market for combat.
CAD Model Here.

Replacement motors, planet gears, and output shafts are also for sale!

Replacement motors come with the pinion pressed on.

Specs

• Single stage 5.8:1 reduction, basically a Blitz Pro for featherweight bots.

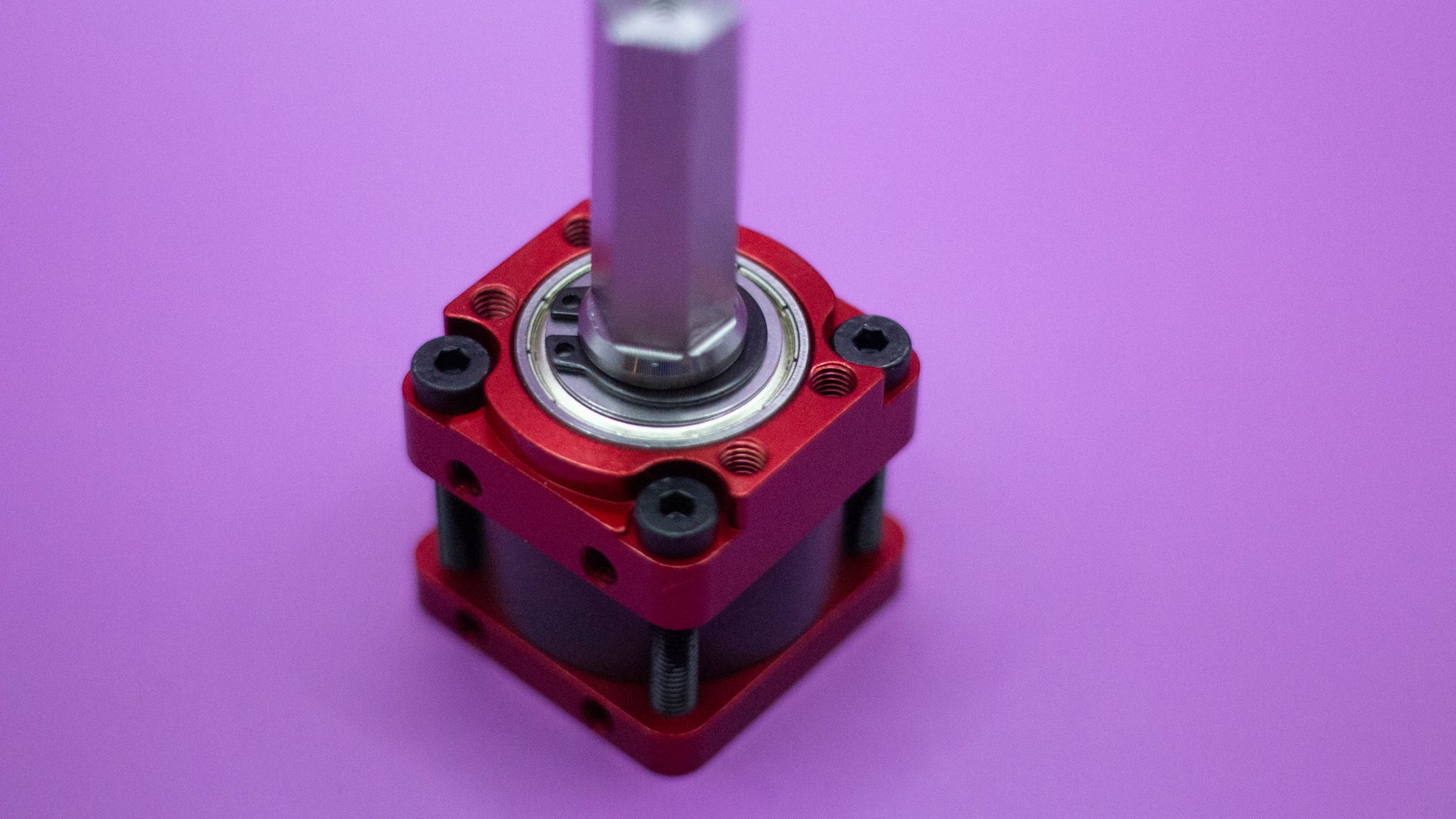

• Gigantic 17mm ID dual ball bearings support the shaft

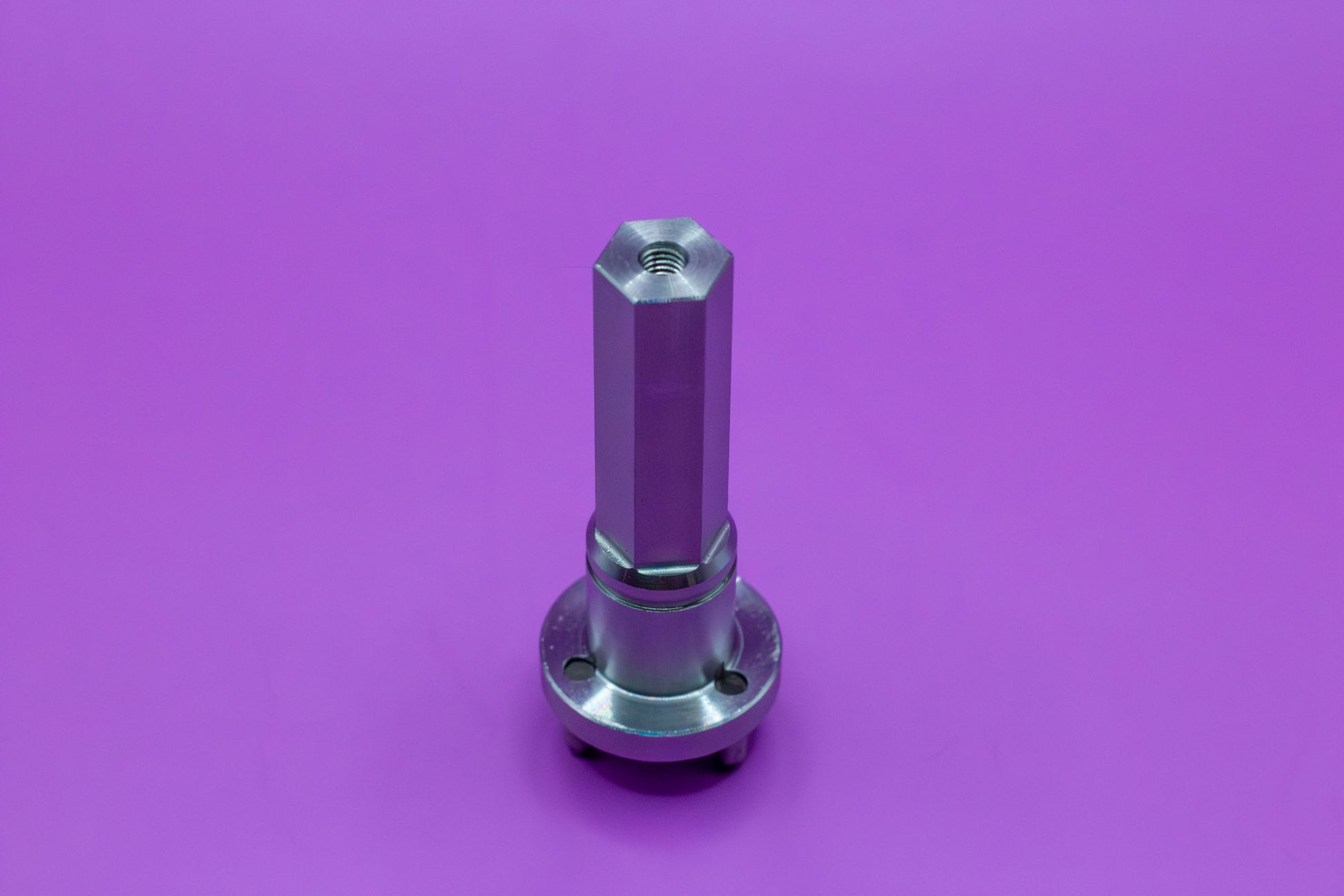

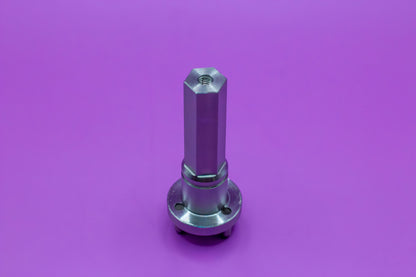

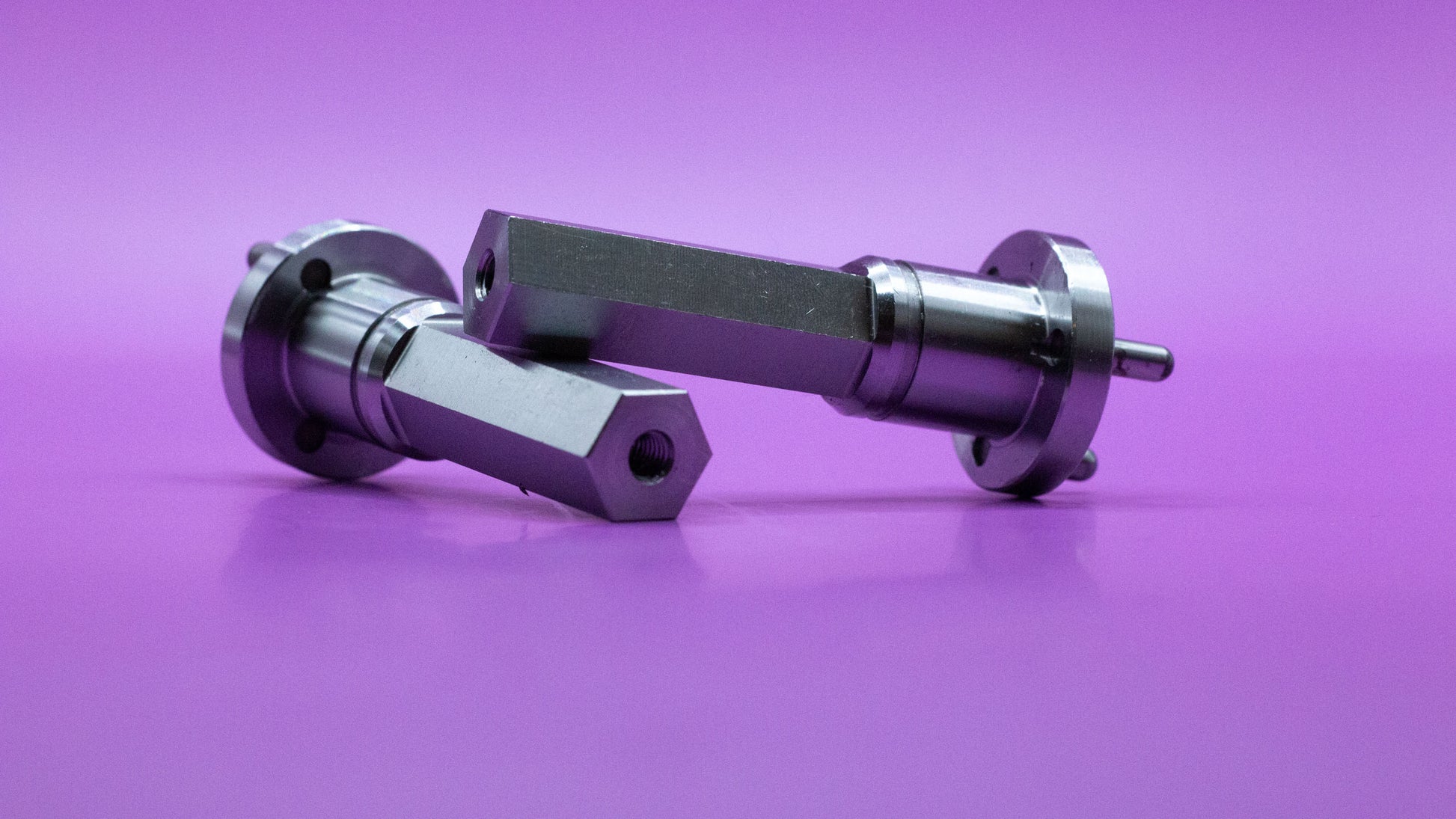

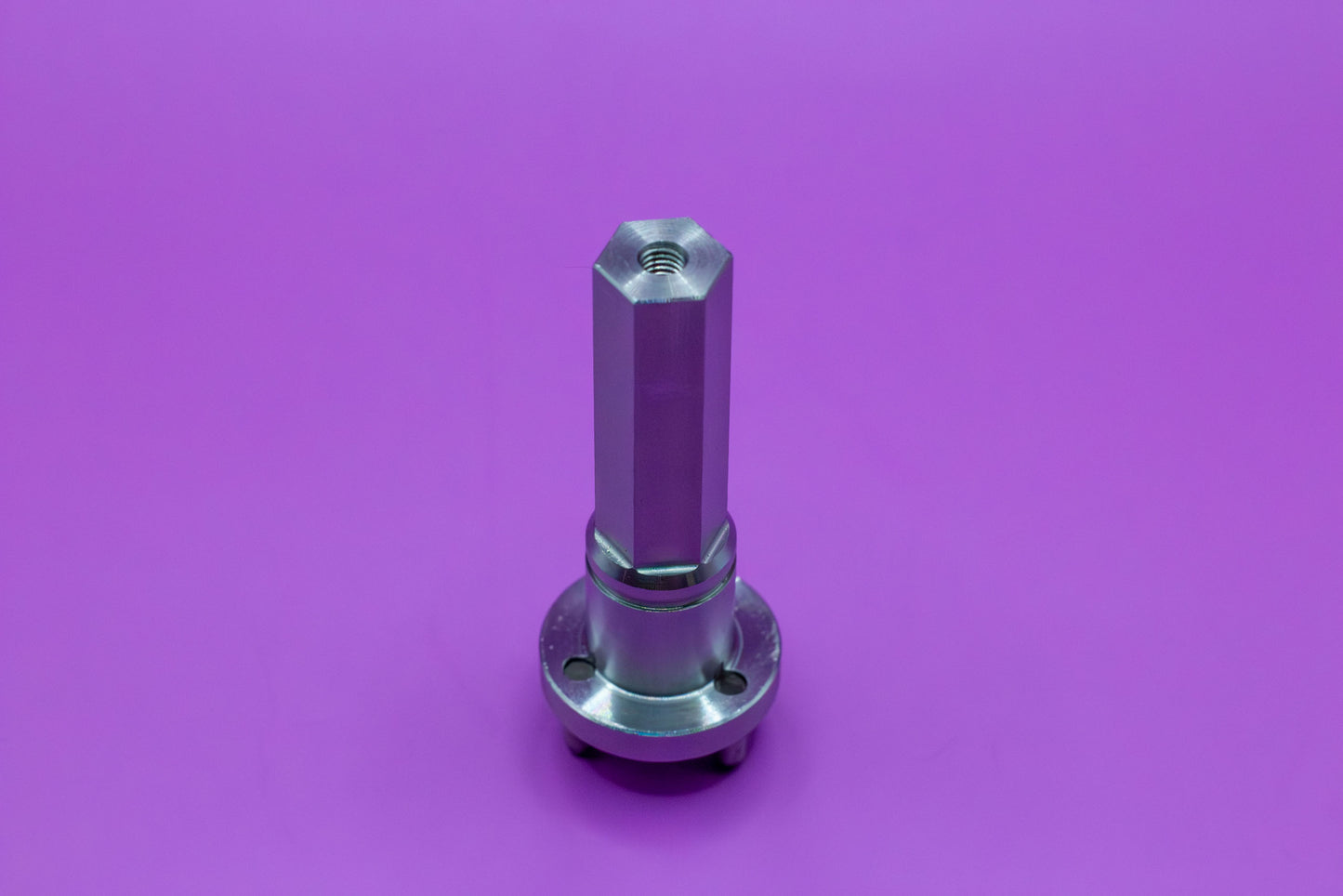

• 1/2" Hex 4140 hardened billet shaft + carrier, with 4mm pins

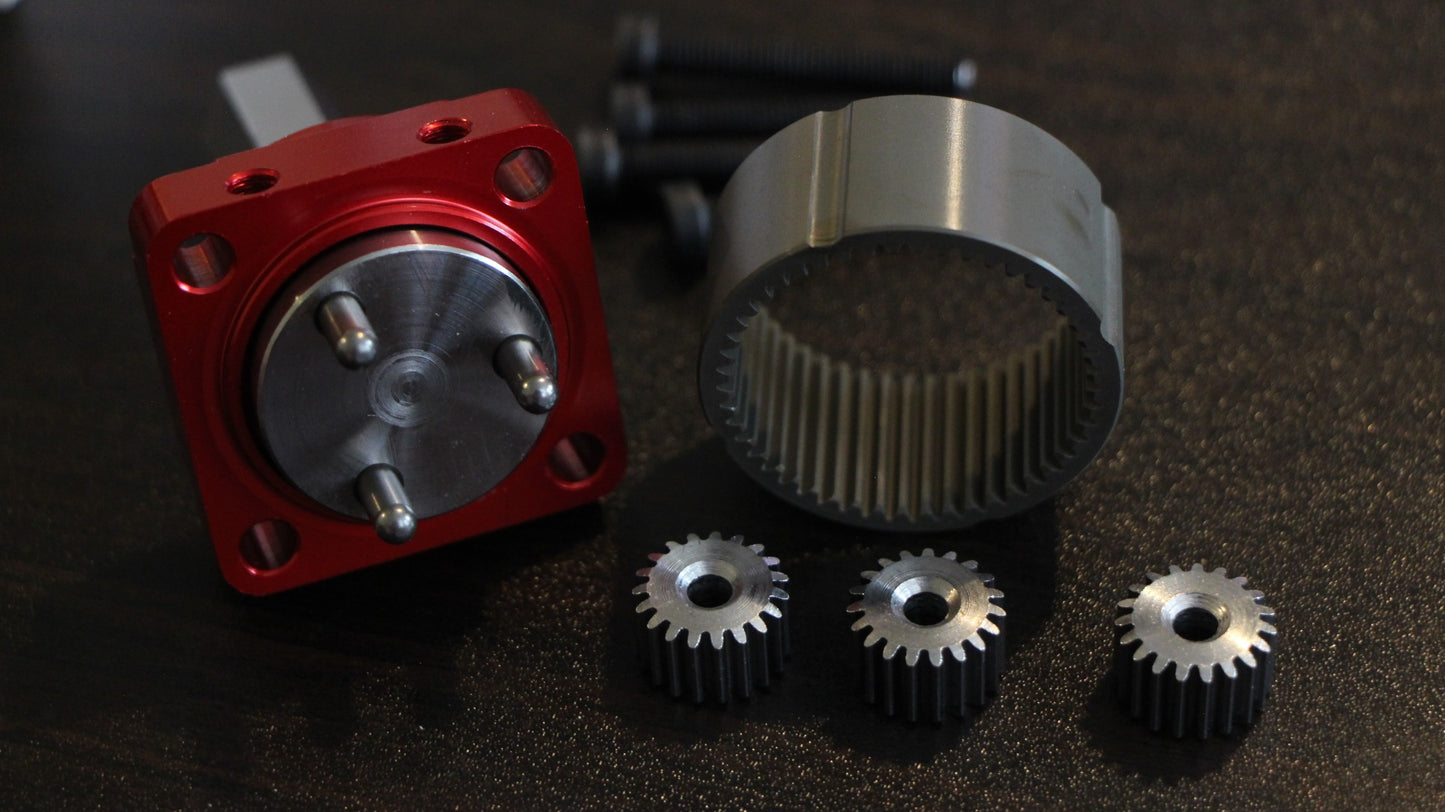

• Planet and pinion gears are hobbed steel, ring gear is 7075 aluminum, 9mm thick mod 0.7 gears

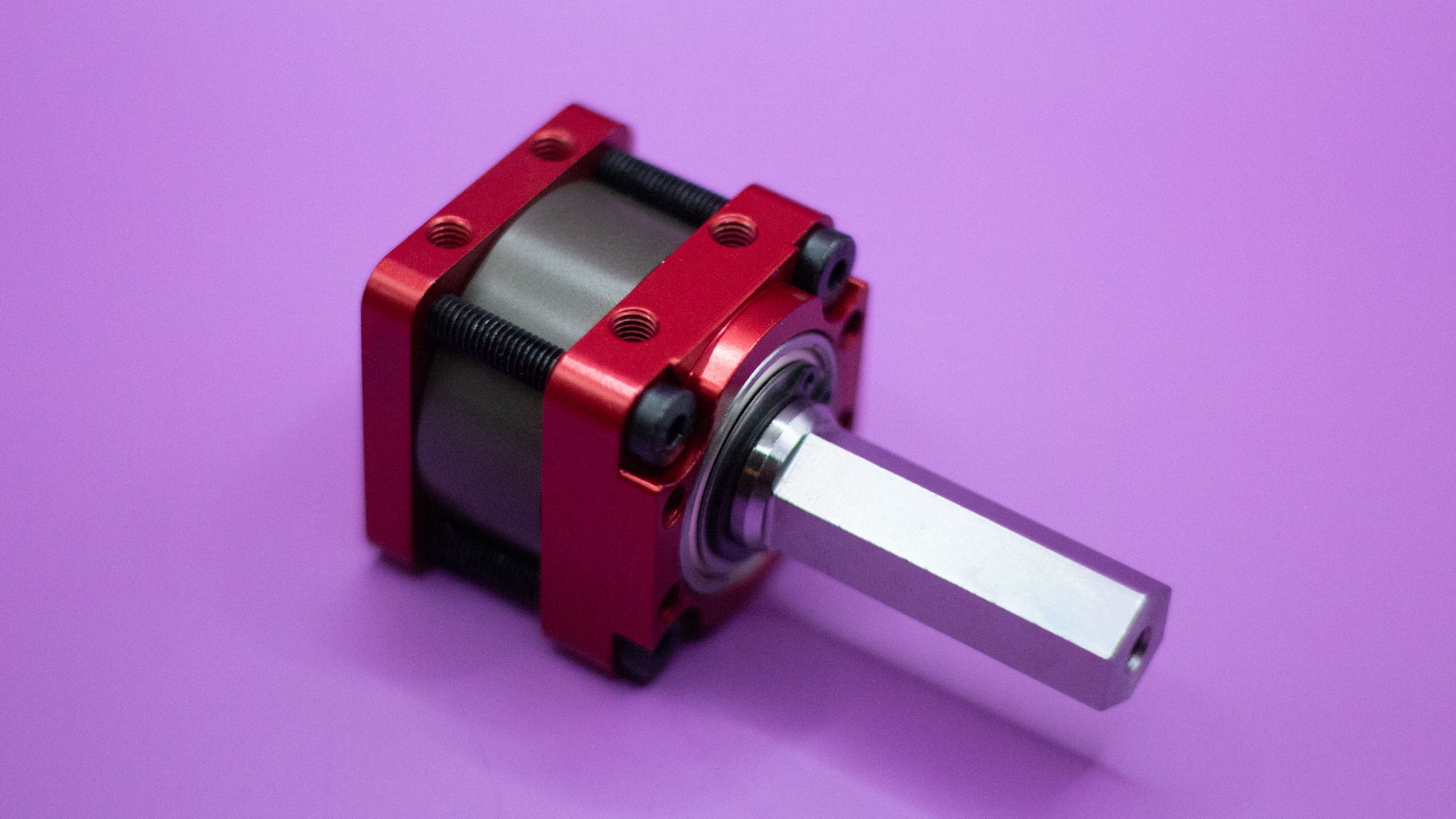

• Gearbox is 40mm square and just 37mm long, far shorter than any 2-stage competing gearbox

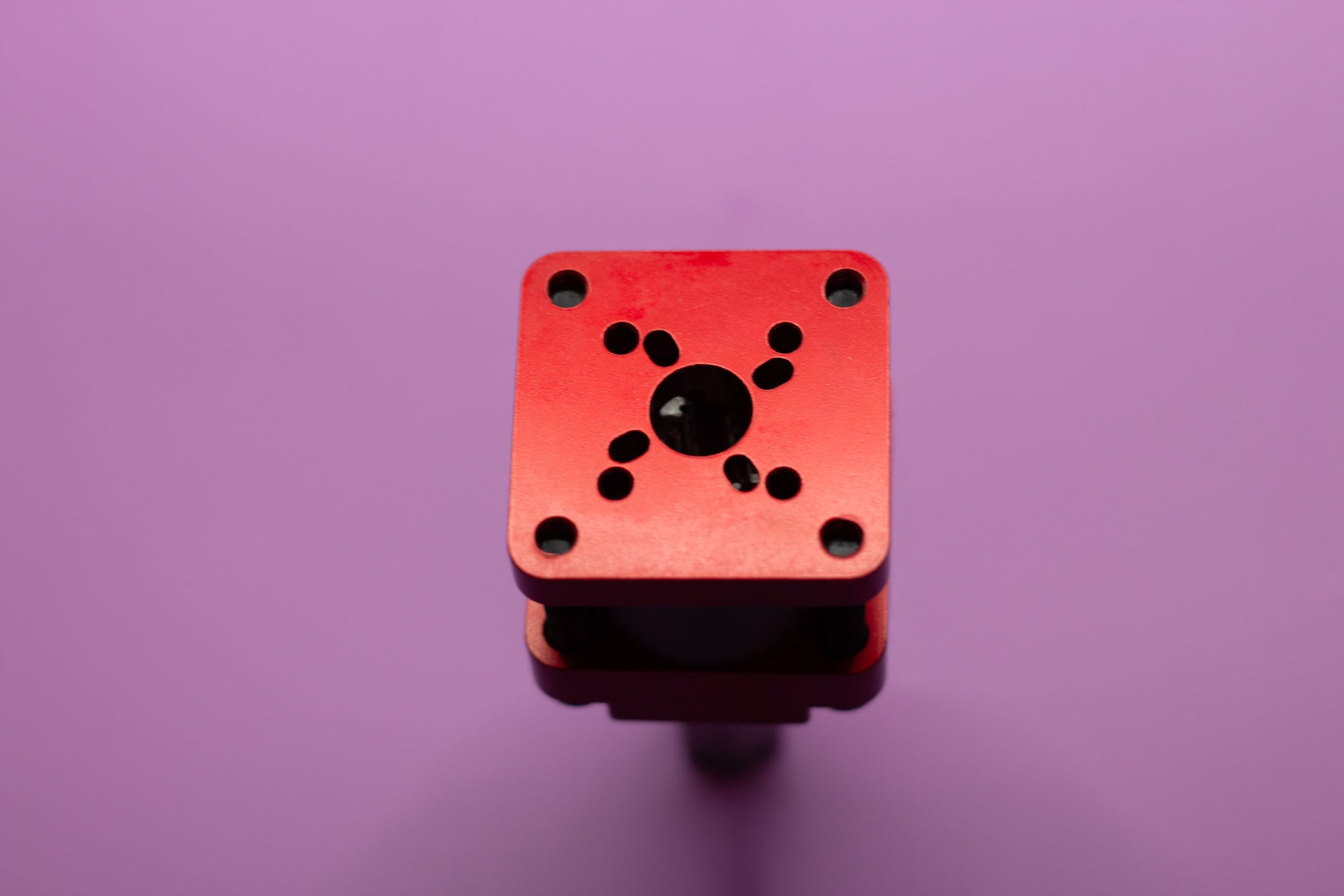

• Face mount or top/bottom mount with 4X M5, M5 end tapped shaft
• 7075 aluminum motor mount and face plate with sexy red anodize - or

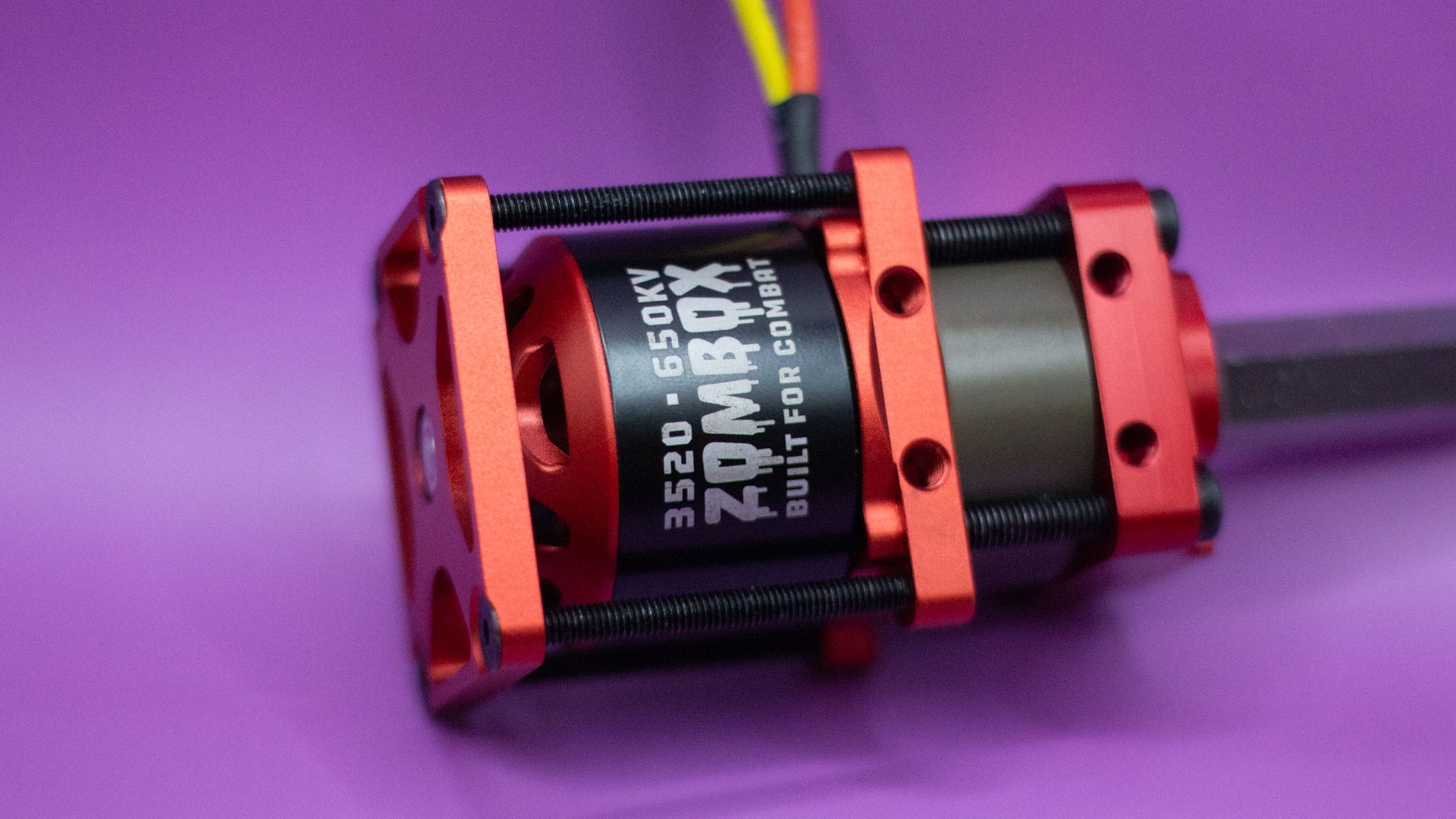

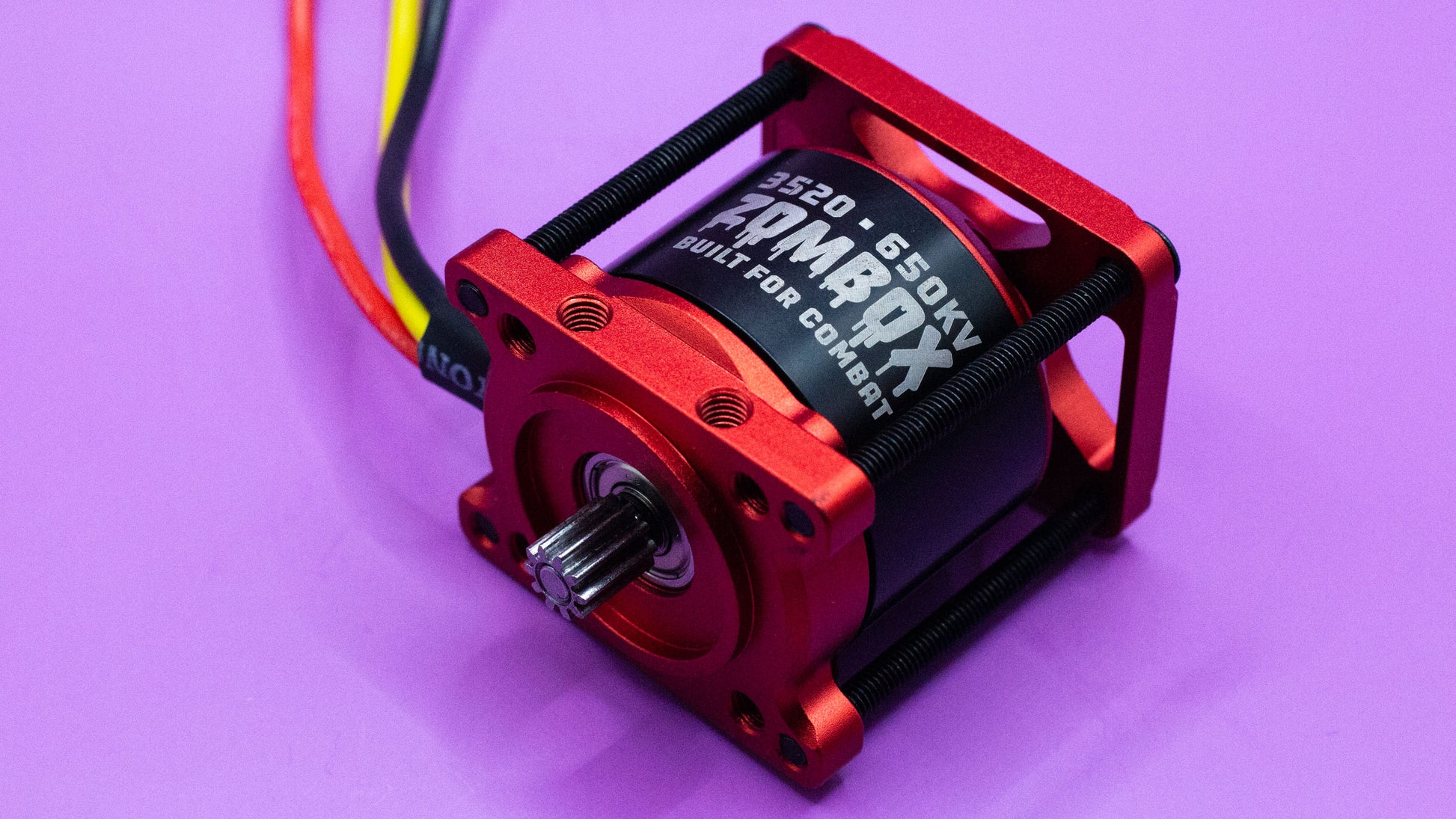

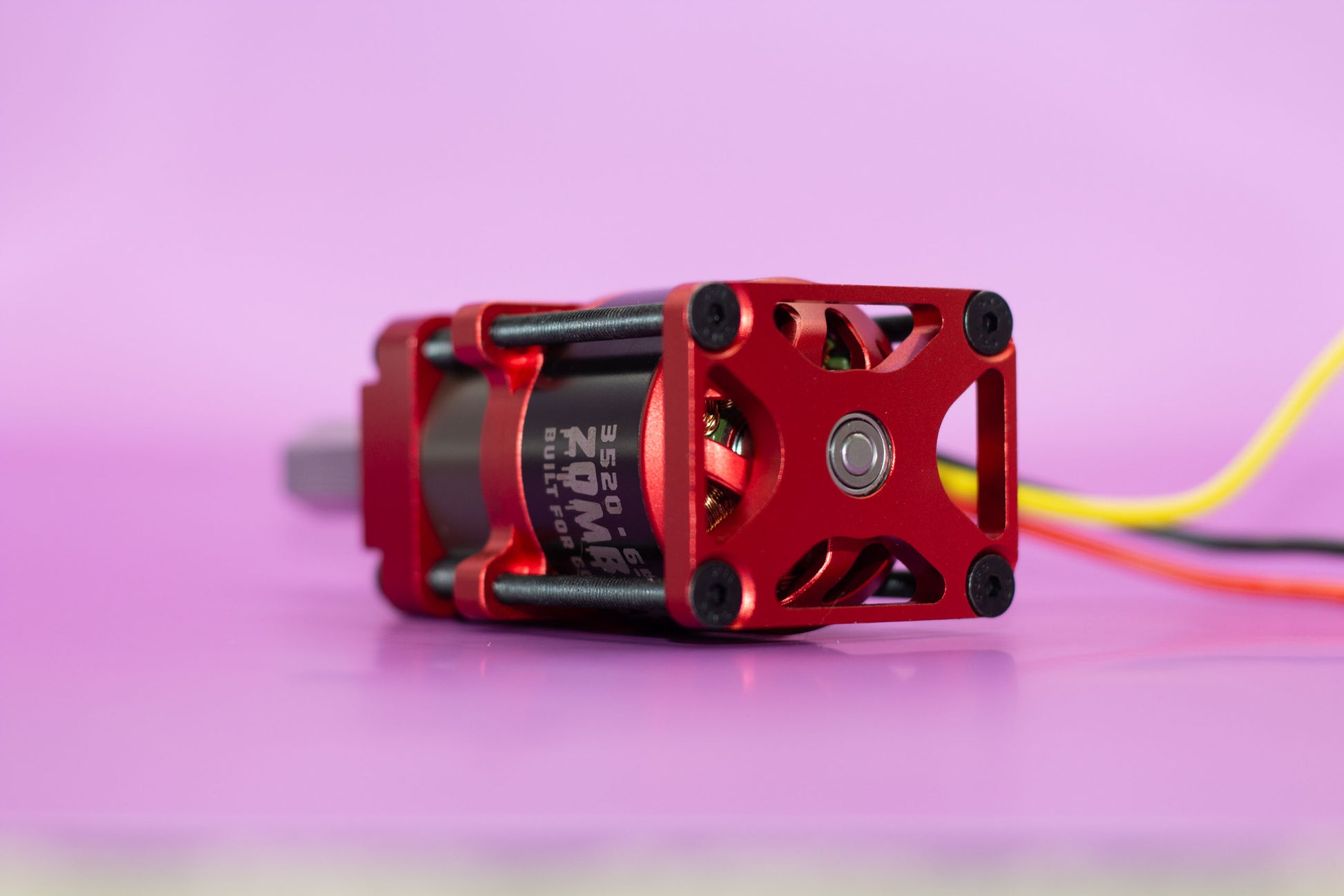

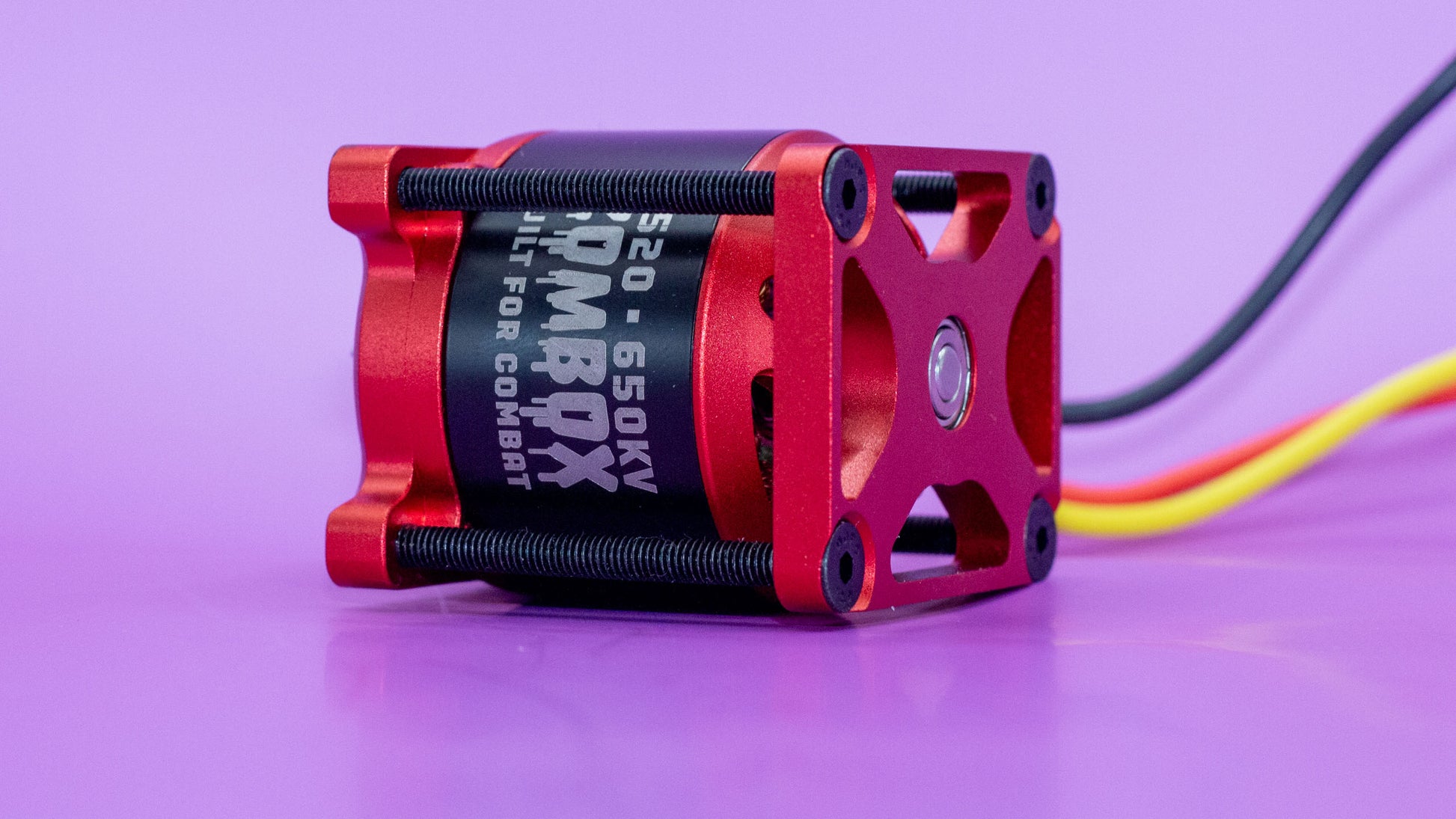

• Custom rear bearing supported 3520 650kV ZomBox motor
• Can mount standard motors with 16x19 or 25x25 M3 mounting, 1/8" or 4mm shaft pinion gears (these will NOT work on 5mm shaft motors)
• Sample motors I have are 3520 stator 4250 can size 600kV with 4mm shafts, generic outrunners
• Future versions could have a 15mm hex shaft option. The shaft is easily replaceable with snap ring pliers
• Gearboxes come ungreased; add your own grease or oil of choice with no messy cleanup!
• Gearbox weight: ~235g without grease added. 475g with 3520 motor attached

Drawings:

Motor Specs and ESC Settings

Make sure to match the motor kV to your motor of choice! Our motor is a 650kV option.

Motor specifications will be measured to the best of our ability, but as this is a custom design, there is no listed manufacturer spec. Compare to Badass 3520 650kV. Peak torque will depend on your exact ESC configuration and settings, but should be around 4.5Nm-5Nm (637-708 ozf-in).
