In-Line Servo BEC - 7.4V 4.5A Voltage Regulator

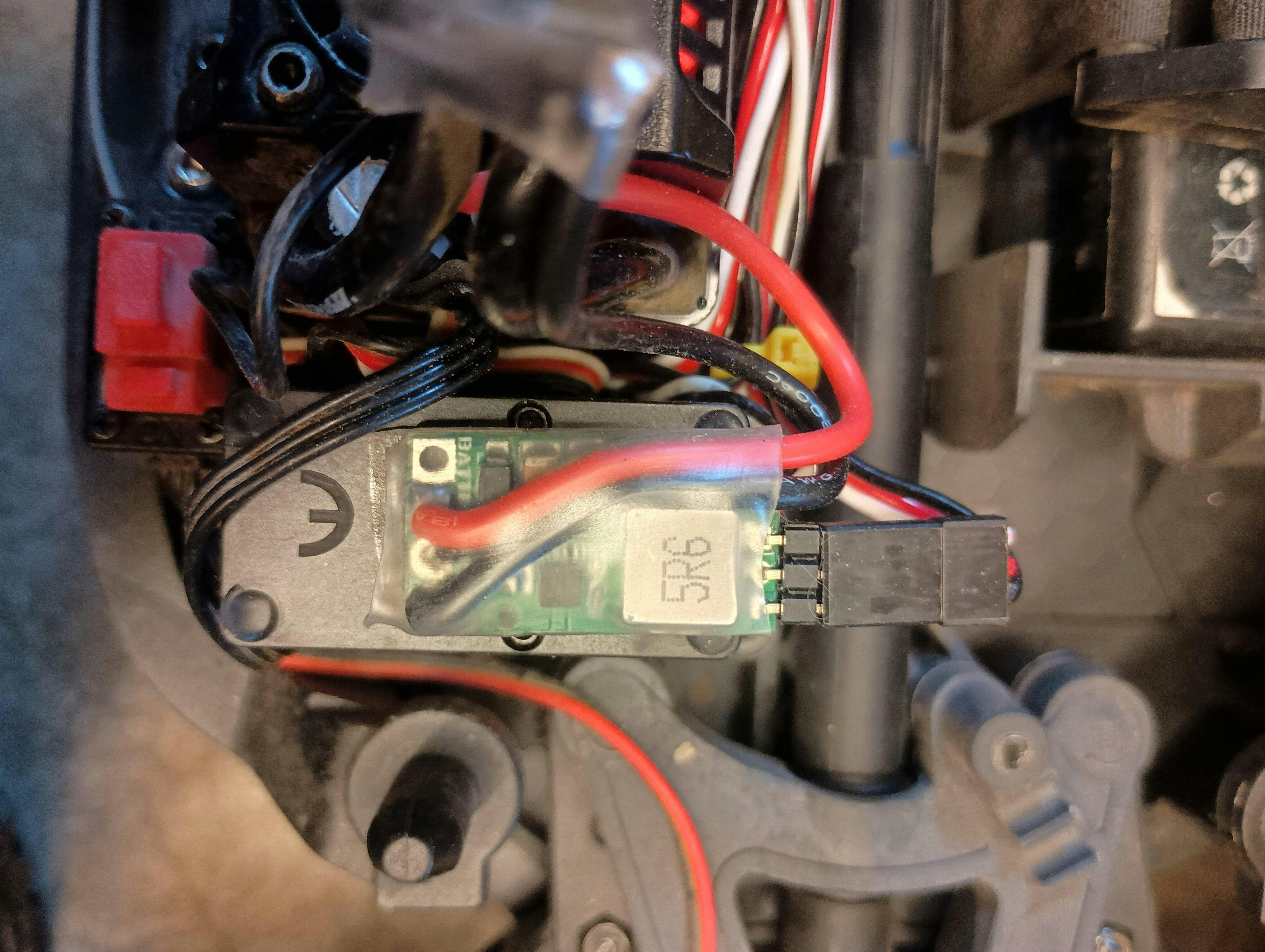

Need to add a servo to your next bot, but don't have much space or weight to spare? The In-Line Servo BEC is perfect for you! Weighing just 3.8 grams with a tiny PCB size of 27.5 x 14.5mm, and a convenient 3-pin connector to directly plug in any hobby servo, this little guy will make your next servo bot a breeze.

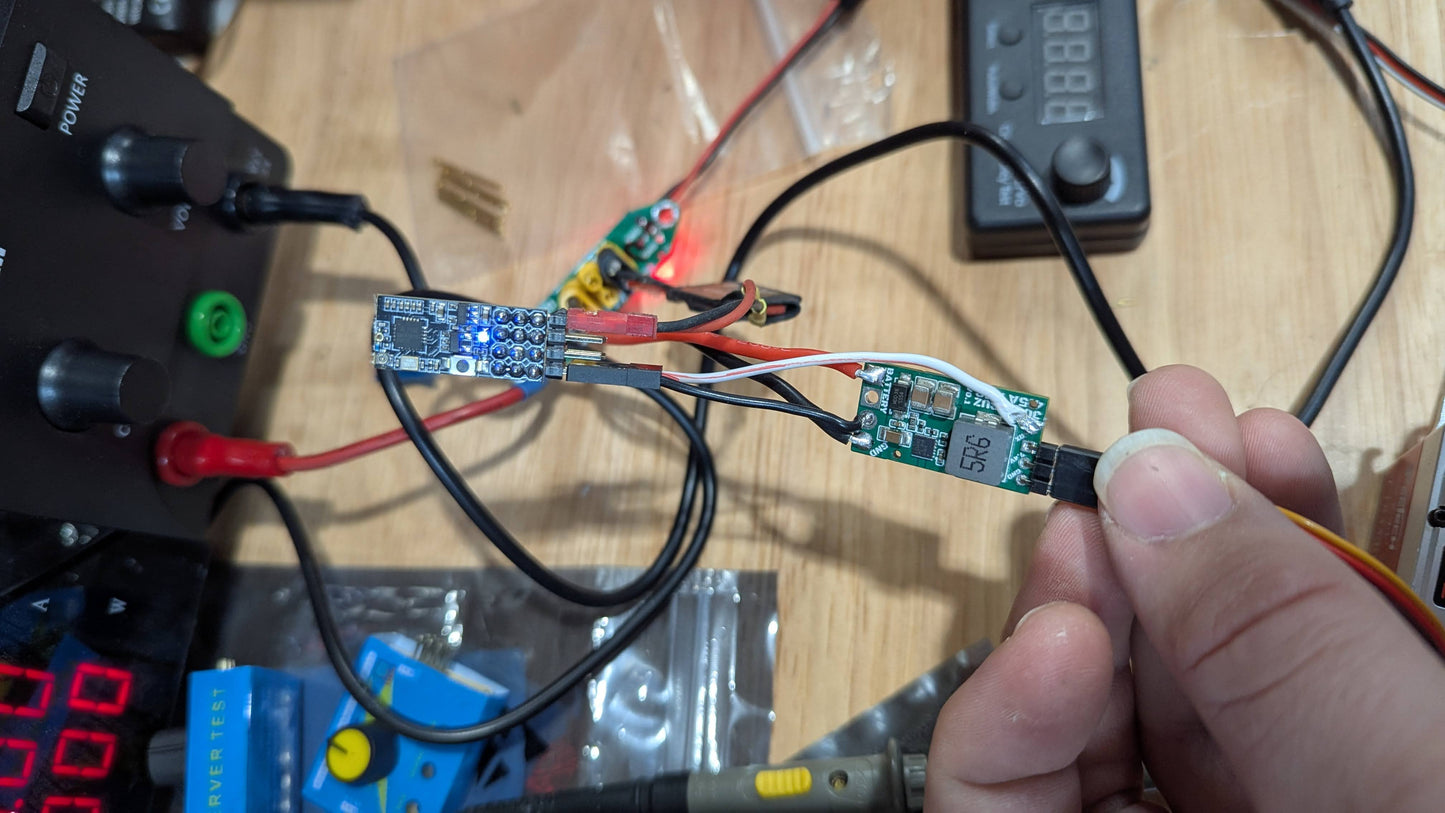

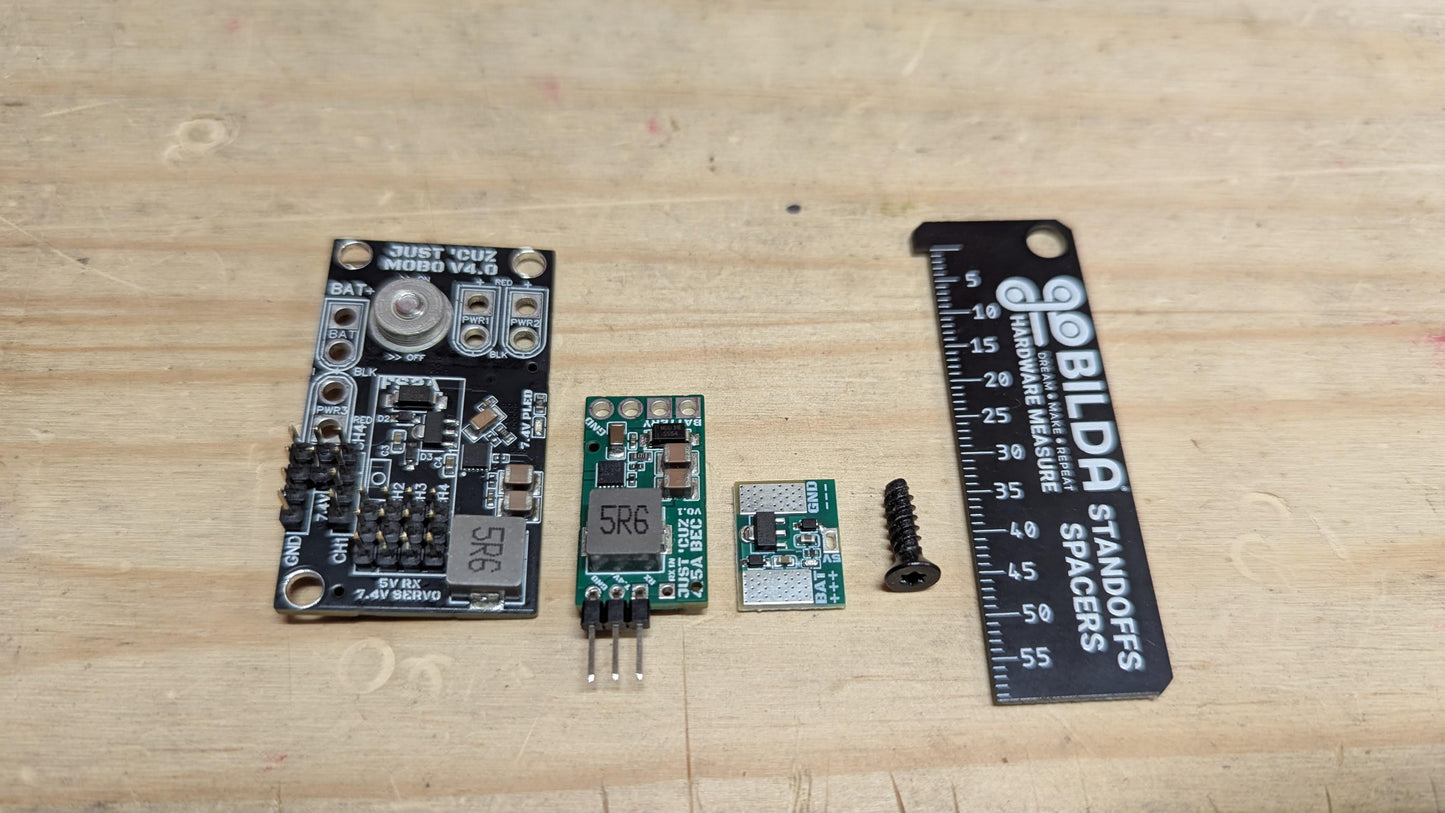

The Just 'Cuz Robotics Motherboard has provided a reliable integrated solution for bots like our SSP kit with a strong servo lifter arm or hammer saw bots using a servo and brushless weapon motor. However the Motherboard has a few limitations - it's big and bulky, and works best with an FS2A receiver. This BEC will work with any receiver, and any servo rated for 5V-8.4V or 5V-7.4V which is nearly all standard-size hobby servos. It works great to inject high current and higher voltage power into a servo while using a 5V or 3.3V receiver or microcontroller! If you are using an FS2A receiver or other receiver that can accept up to 8V or more, this can power your receiver too.

CAD Model Available Here

Specifications:

• Input Voltage: 9V-30V (3S-6S)

• Output Voltage: 7.4V

• Output Current: Up to 4.5A for 30 sec, 3.5A for 3 minutes

• Connector: 3-pin 0.1 inch (2.54mm) pitch

• Size: ~36mm x 14.5mm x 8mm

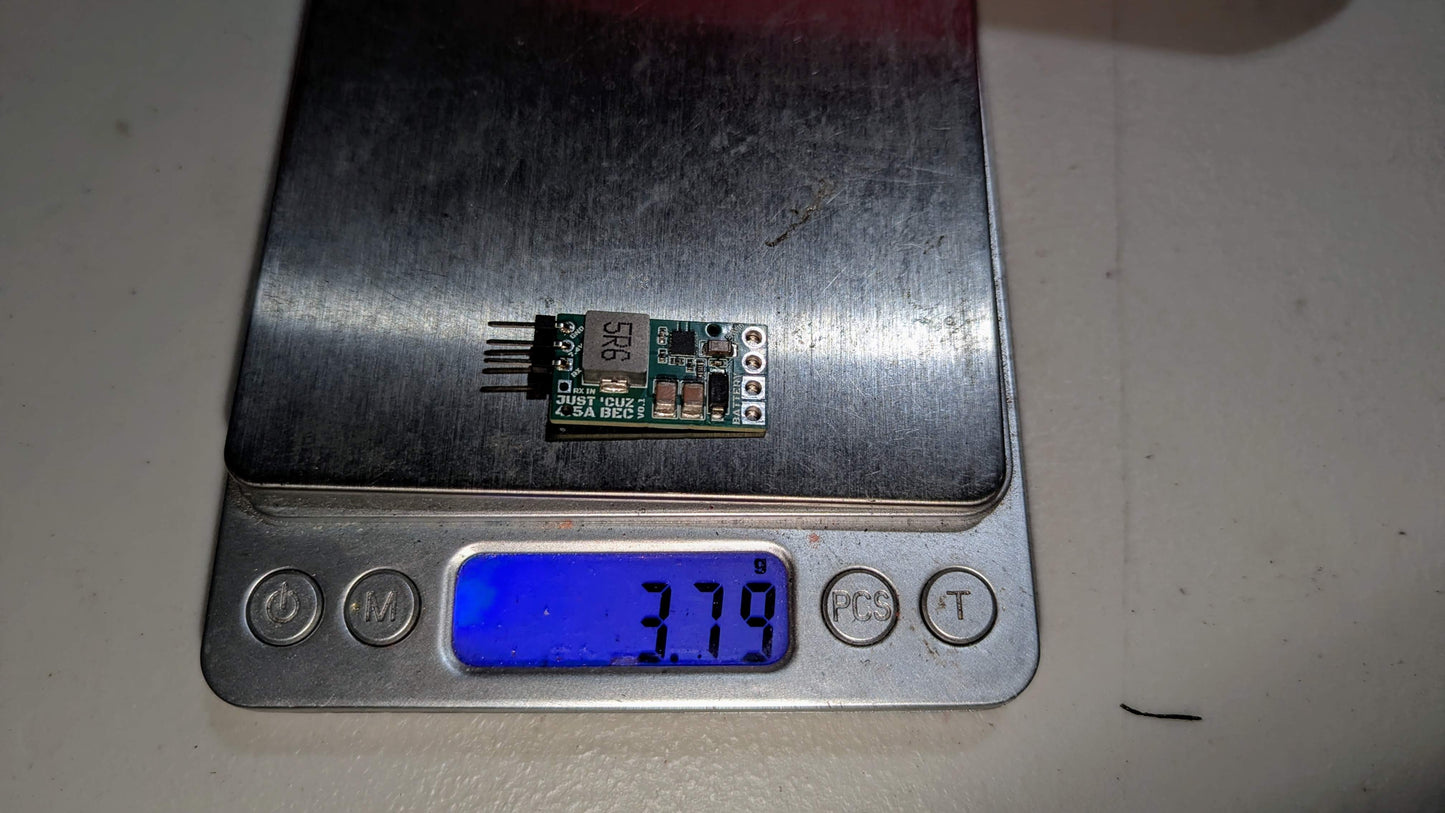

• Weight: 3.8g
