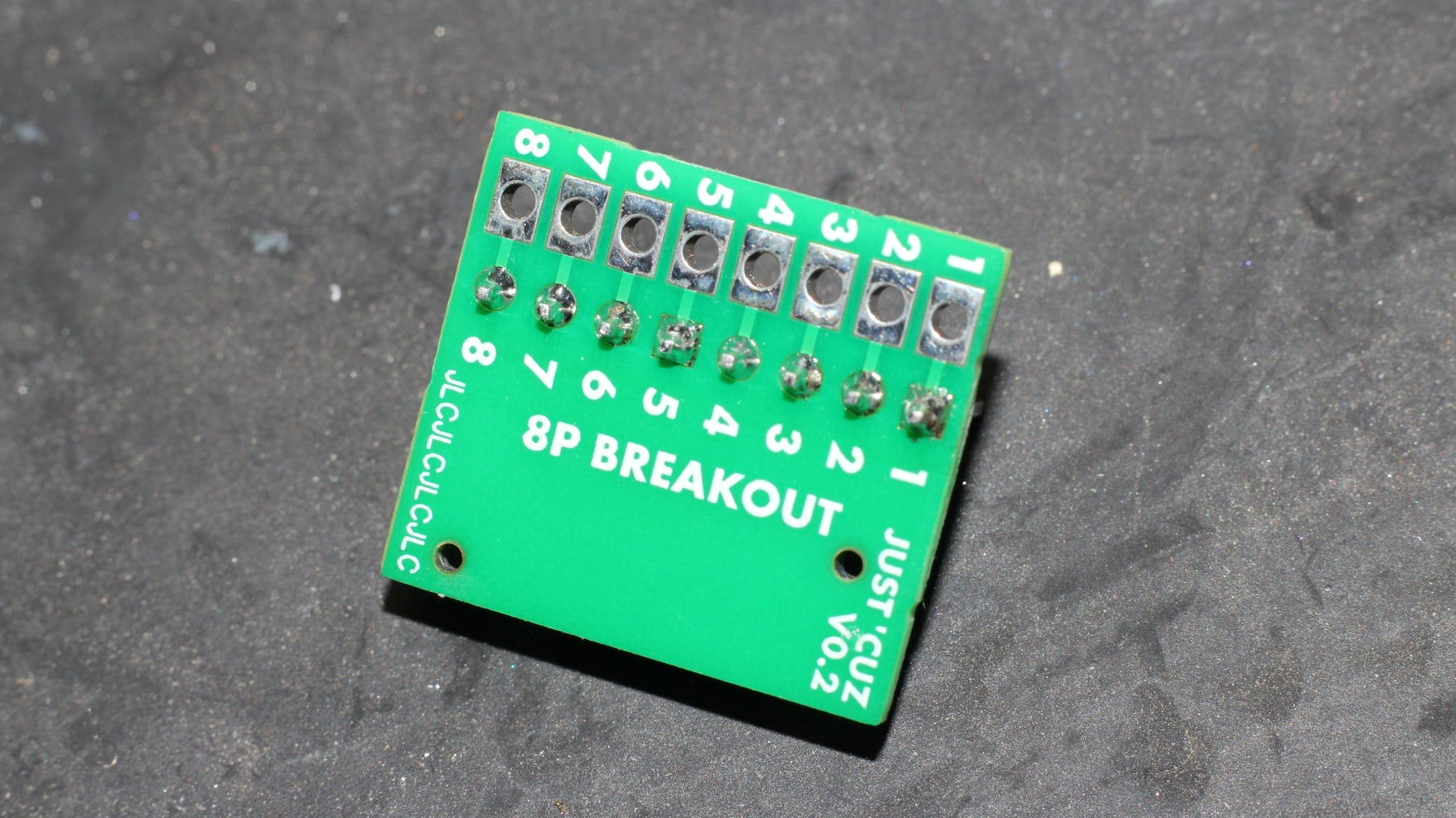

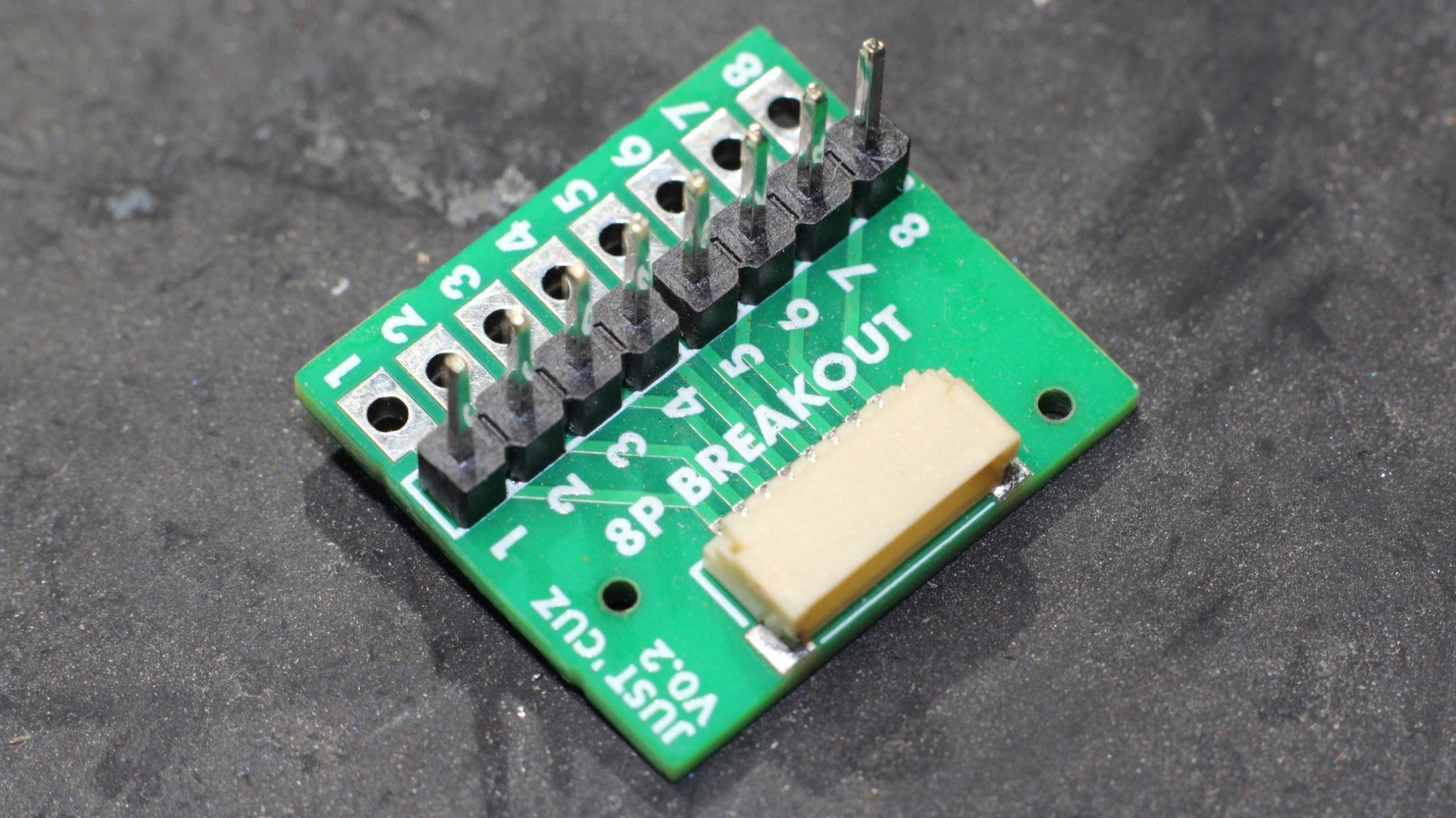

JST 8pin 1mm Pitch Breakout Board - Easy Wiring for 4-in-1 ESCs

Say Goodbye to Programming Pain!

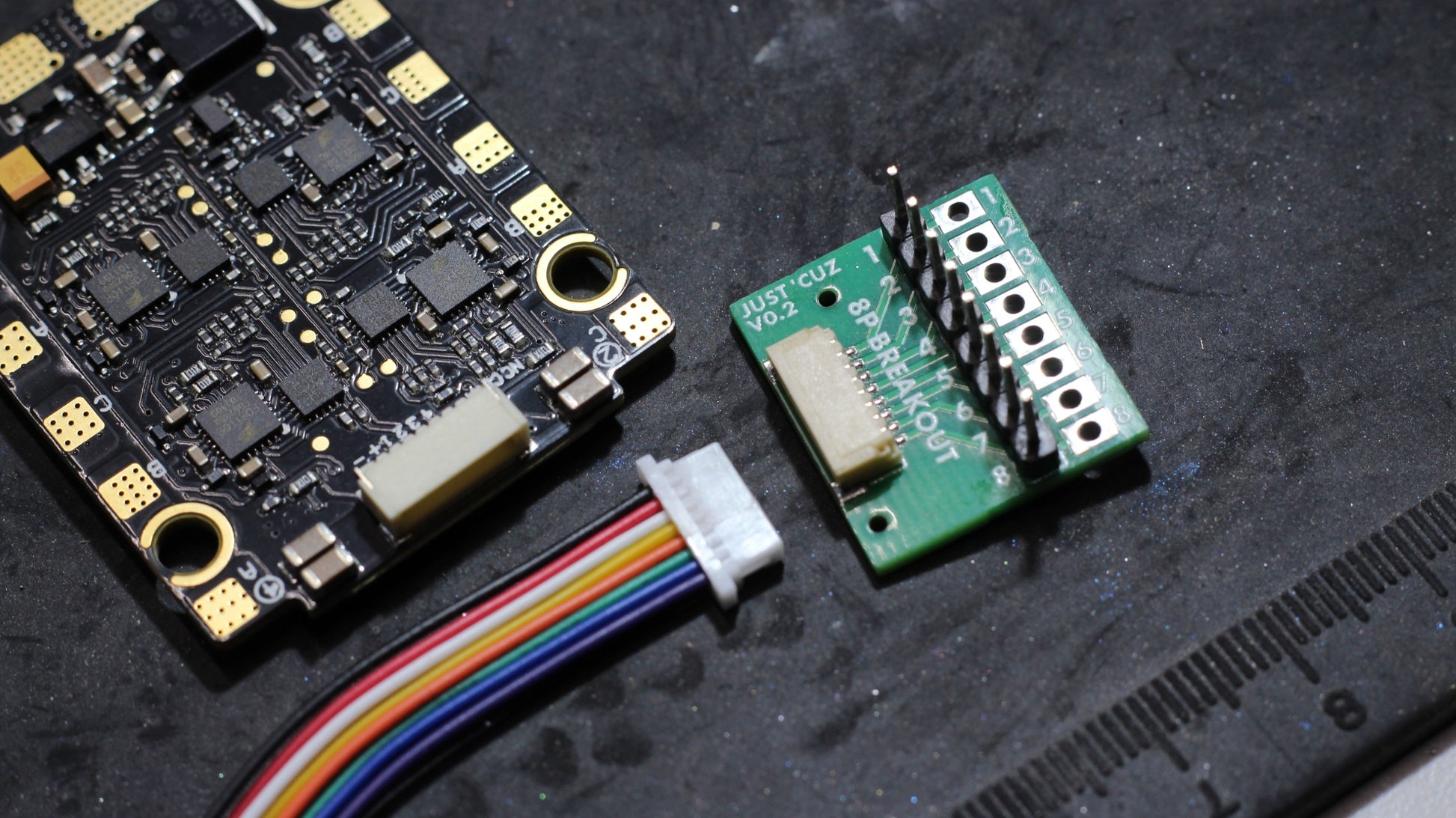

Many common 4-in-1 ESCs used for brushless antweights and beetleweight robots have a common 8 pin JST connector. Many also have no option besides using this connector to program or connect a receiver. These cables are designed to connect to flight controllers, but with these boards, you can break out all the pins to use them how you see fit! Generous-sized pads with holes for easy wiring.

Sold individually.

Connector details: JST Part #SM08B-SRSS-TB(LF)(SN)

Board Dimensions: 12mm x 24mm

Note: check compatibility with your 4-in-1 before buying! If it uses an 8-pin 1mm pitch connector it's probably going to match this board, but if it has a different number of pins or different pin spacing it will not.

Tested 4-in-1s that work (not an exhaustive list):

NeutronRC 45A Dual Hold Mini 20/30mm

TMotor V45A Lite

DYS Brushless ESC 65A 4in1 2-8S AM32 30x30
