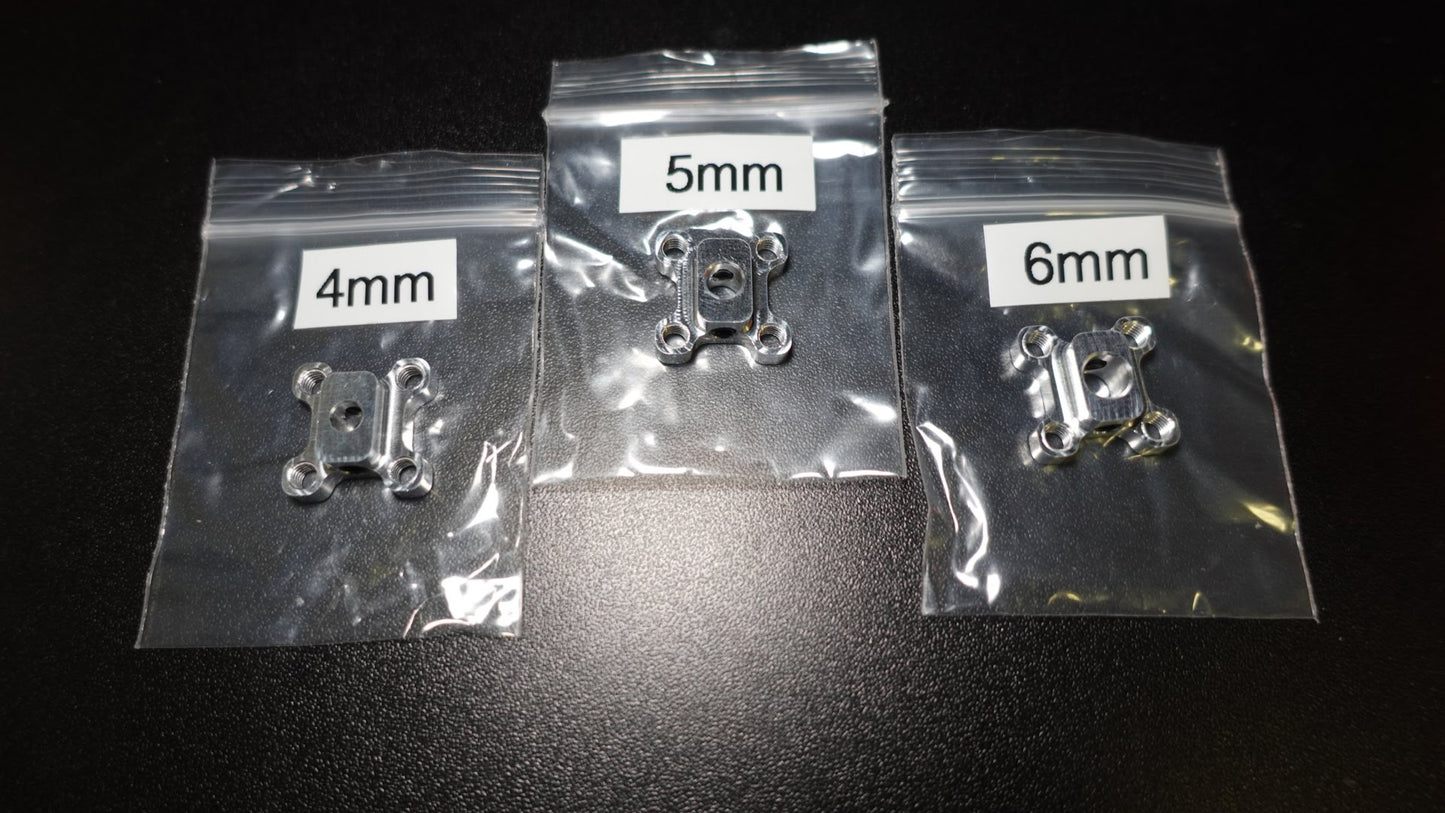

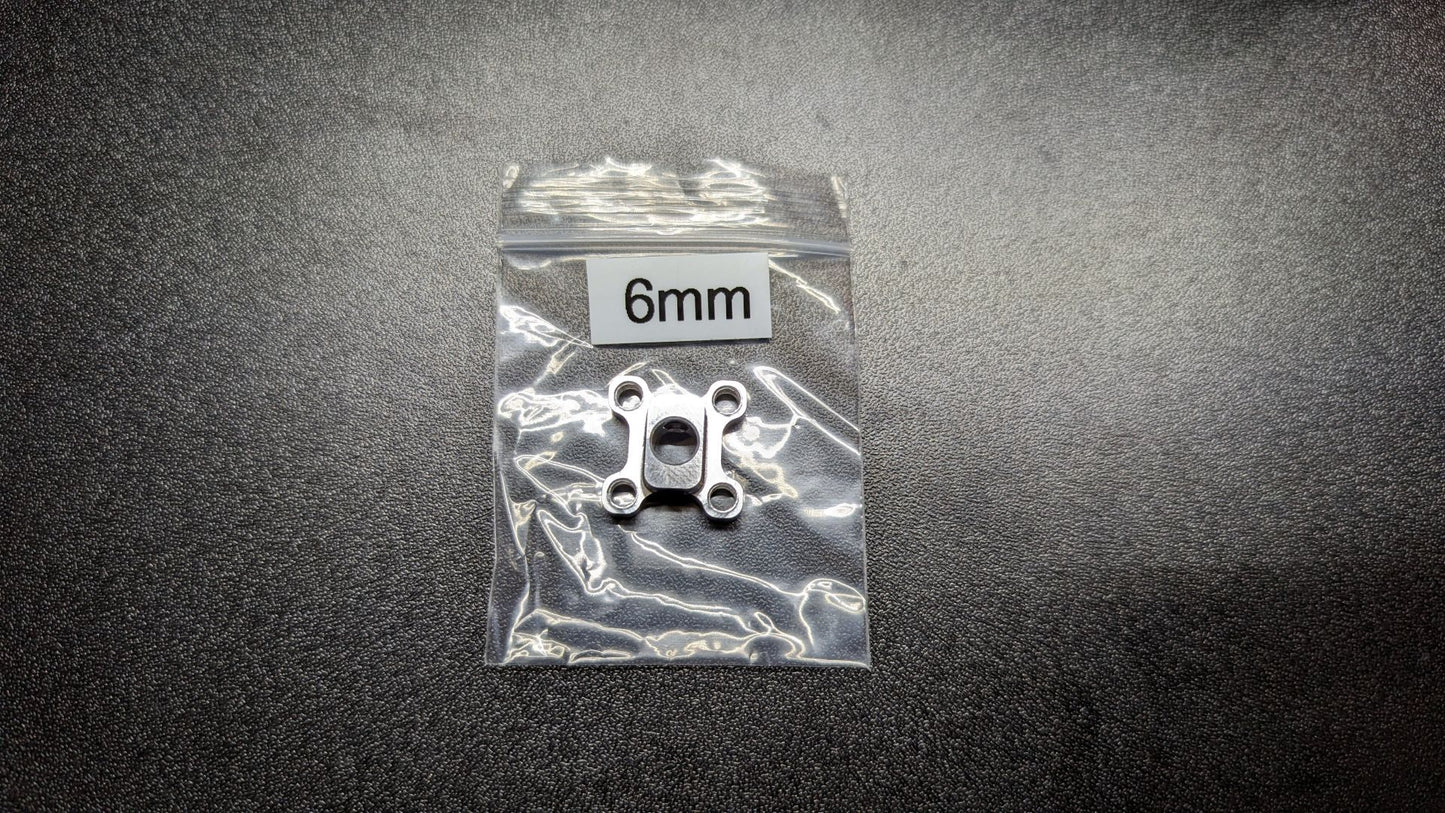

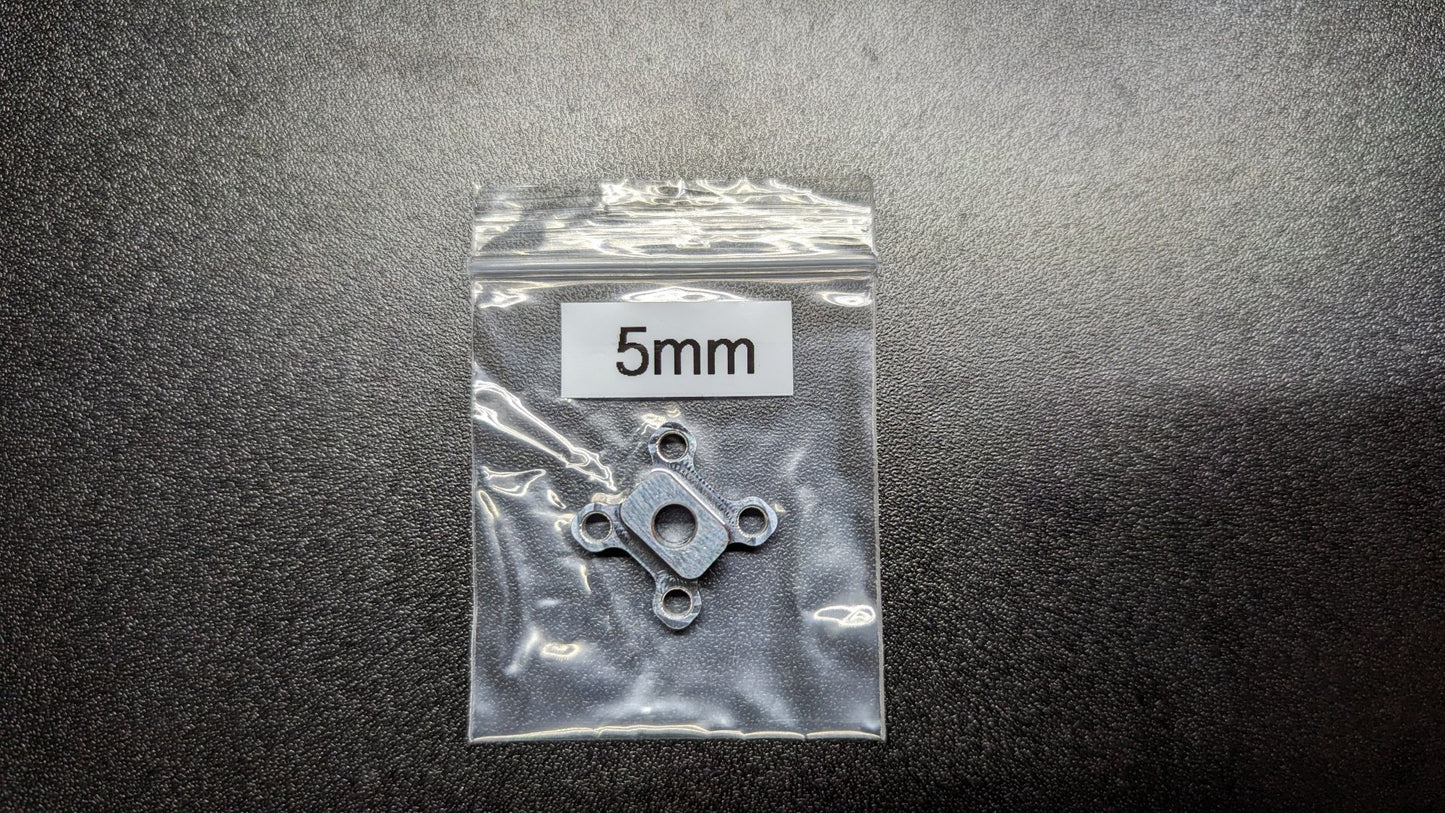

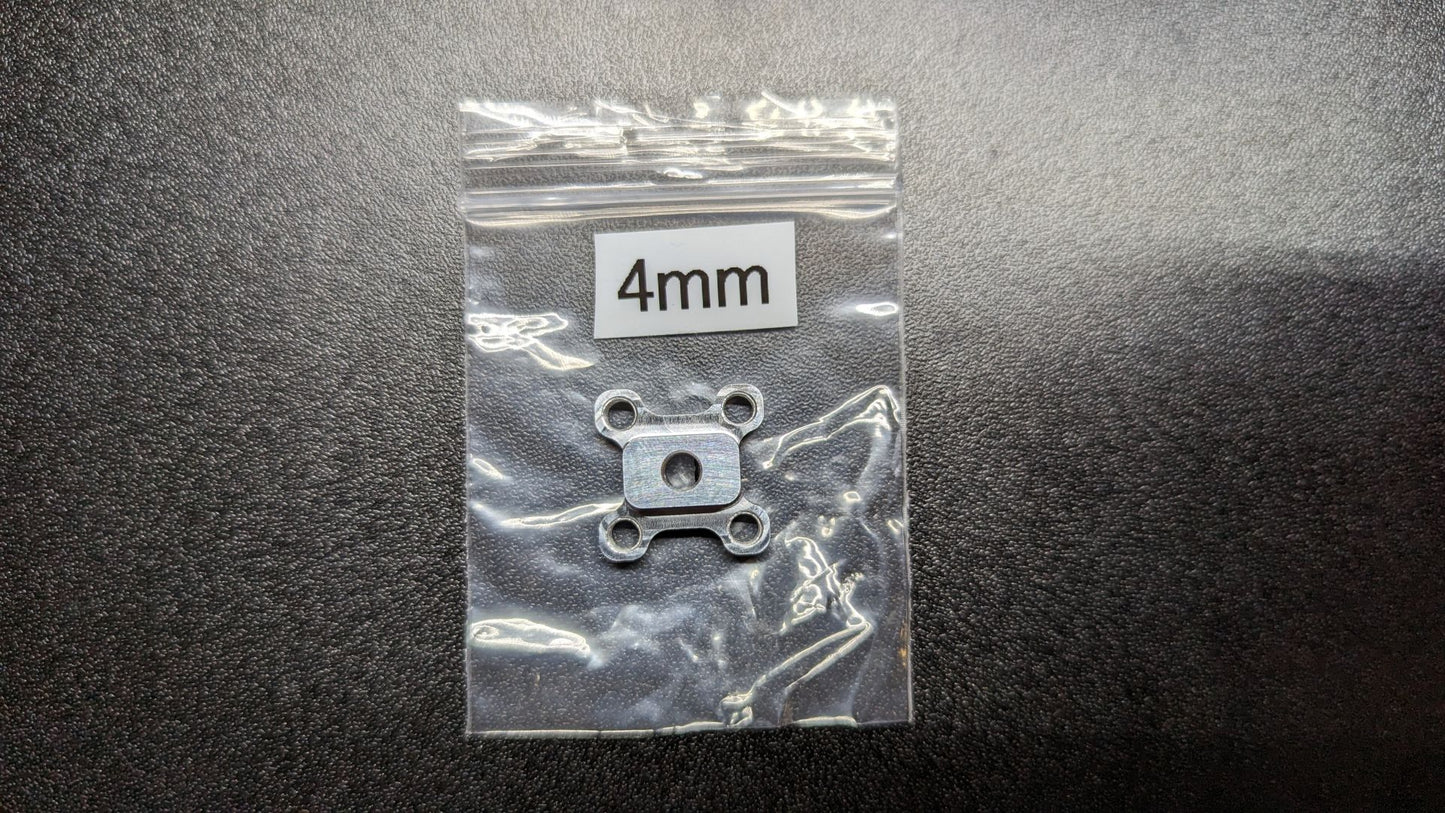

Just 'Cuz Flange Hubs (4, 5, and 6mm bore)

$7.00

Sale Sold out

Bore Size 4mm 5mm 6mm

Quantity

Three Grams of Mighty Holding Power!

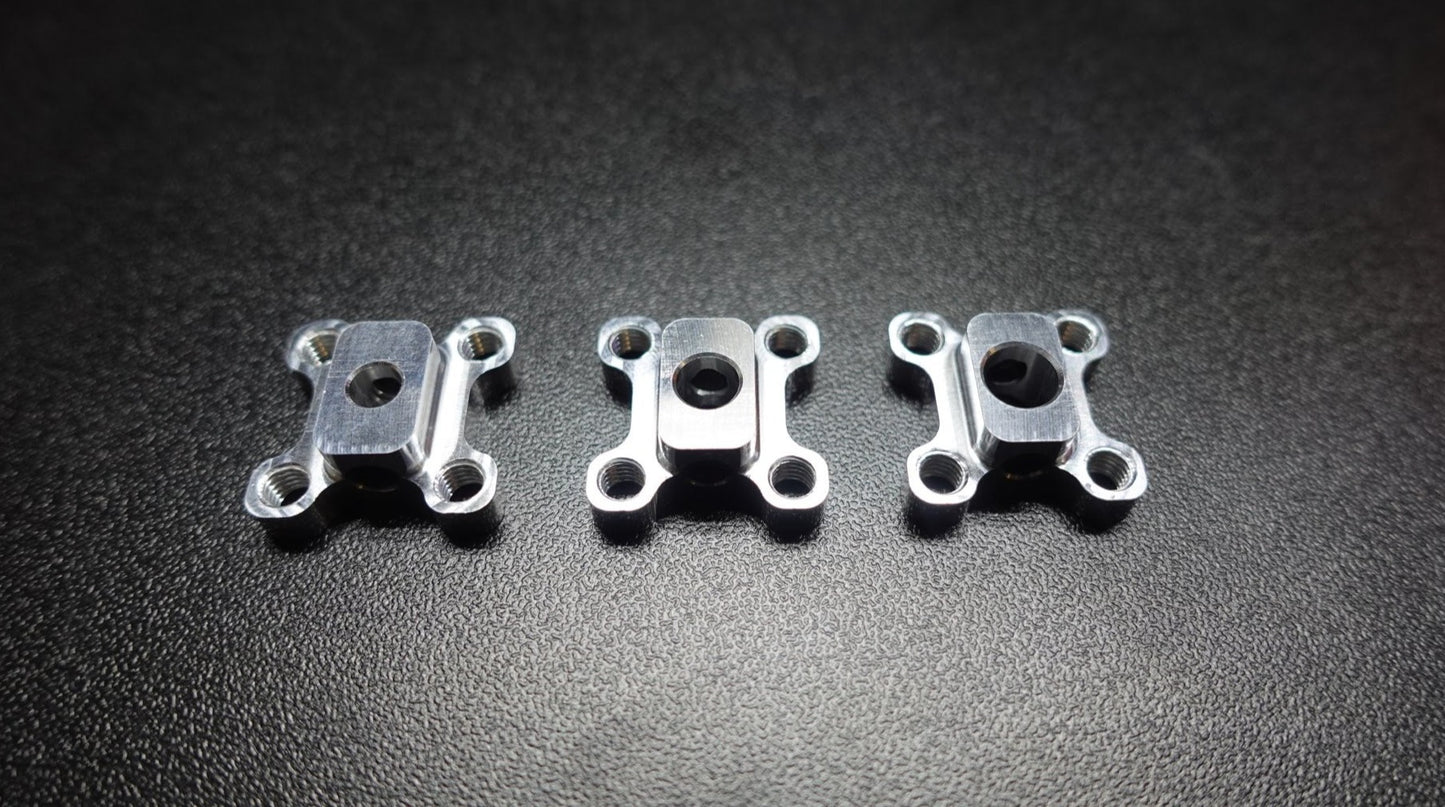

If you need maximum torque transfer from a motor to a 3D printed wheel, pulley, arm, or gear, these flange hubs are perfect for you! Designed to work with a wide range of motors including 4mm and 6mm DartBox Gearmotors as well as 5mm shaft brushless motors. Made from strong yet lightweight 6061 aluminum, at 1/3rd the weight of brass or steel, these hubs will fit in well on almost any bot! These secure to a shaft with two M4 screws, make sure to align one or both with a flat on the shaft for best results.

CAD models included here.

Each package contains one (1) hub, and two (2) M4 x 4mm set screws!

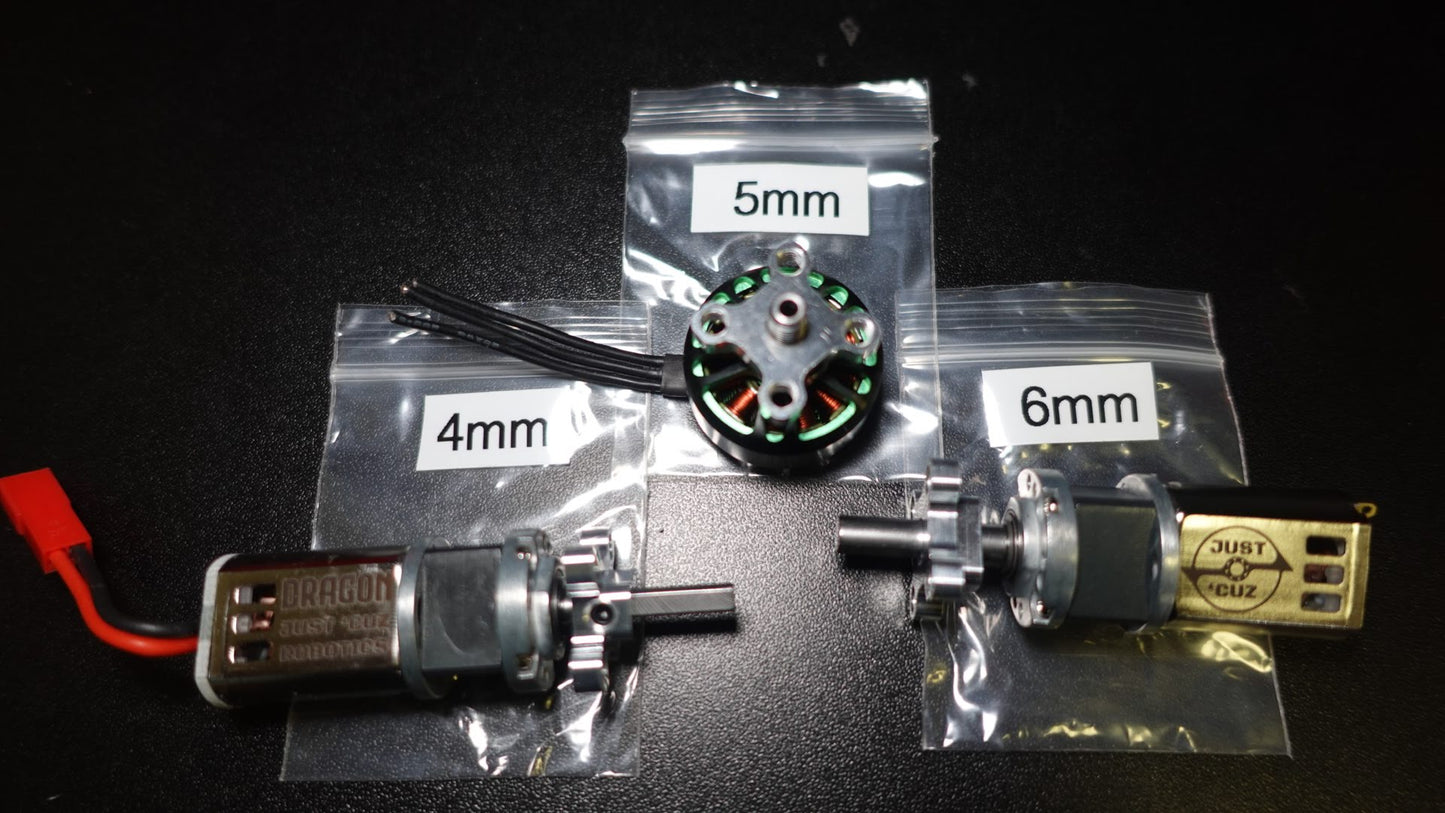

These hubs are compatible with:

DartBox Viper & Dragon Drive and HR 4mm + 6mm Gearmotors
DartBox Gecko 4mm + 6mm Gearmotors
Just 'Cuz 2306 1000kv Brushless Motors
Servocity Premium Planetary Gear Motor
Servocity Econ Spur Gear Motor
Rectified Robotics Brushless Gearmotor
Repeat Robotics Repeat Max Gearmotor
Fingertech Mega Spark Gearmotor
Botkits 22mm DC Gearmotor
Double Geared 25mm Motors
Any other 4mm, 5mm or 6mm shaft motors!

Specifications

Material: 6061 Aluminum, strong and lightweight
Length: 0.3in (7.62mm), fits inside 1 inch (25.4mm) diameter circle
4X M4 threads on a 0.75" bolt circle
Weights: 4mm ~ 3.03g, 5mm ~ 2.91g, 6mm ~ 2.75g including set screws!
Drawing below, all dimensions in inches [mm]

Motors not included.

manufacturing issues

The center hole on 5 of the 8 I purchased had to be filed down in order to fit onto the motors. Other than that they worked great.

Good

I have nothing bad to say about these, they are a low weight wheel hub with good tolerances and a good geometry for locking in place inside the custom TPU wheels I use on my beetle weight. For best results, use a Dremel to grind a second flat on the motor shaft to give the set screws something to grab onto, and leave a lip at the end so they can't slide off the shaft, then dump a bunch of blue loctite on the set screws so they don't vibrate loose.
