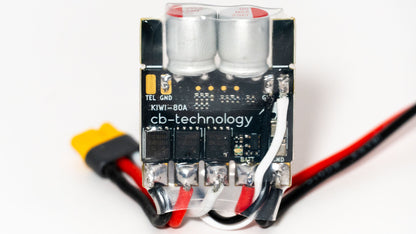

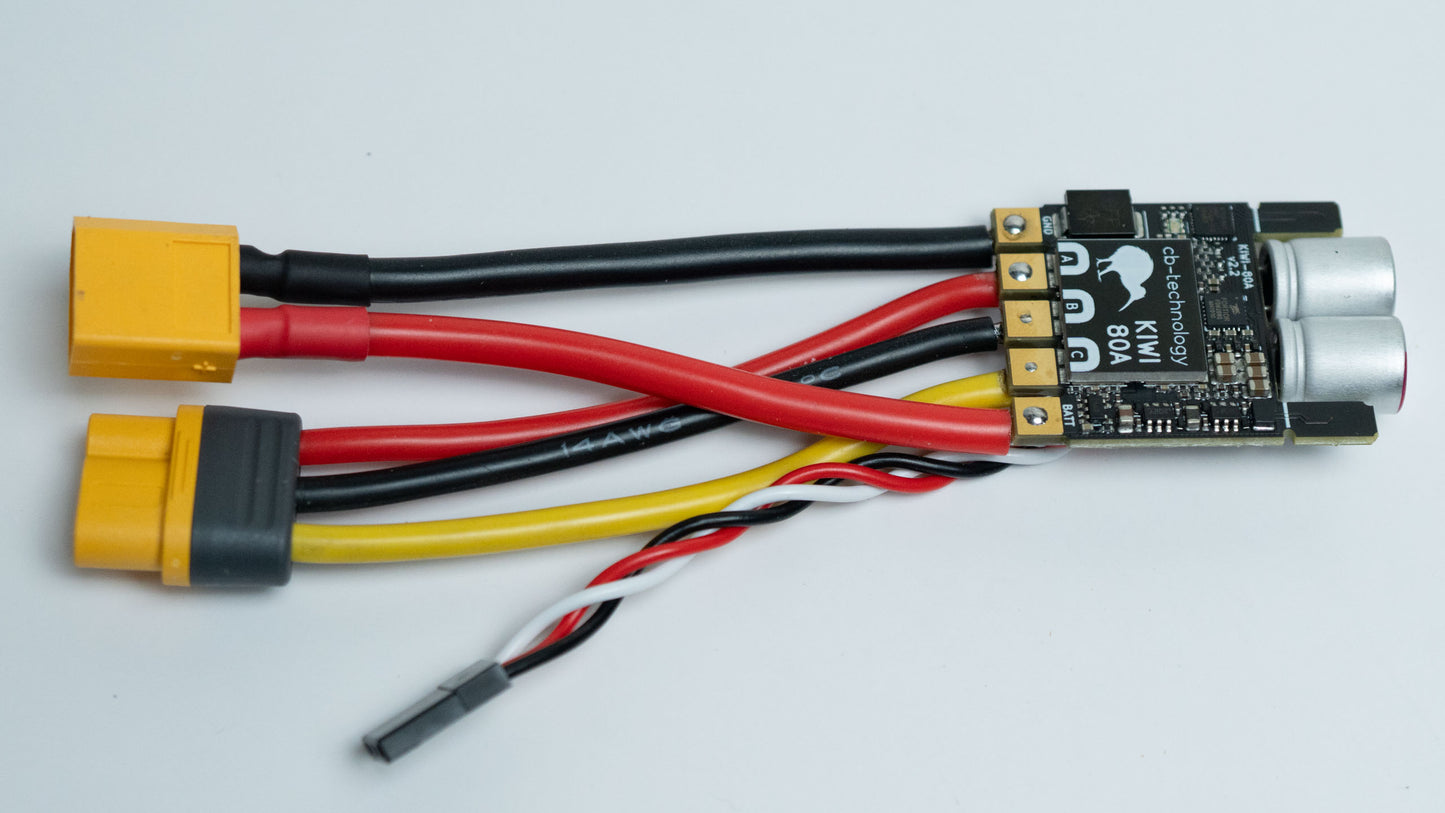

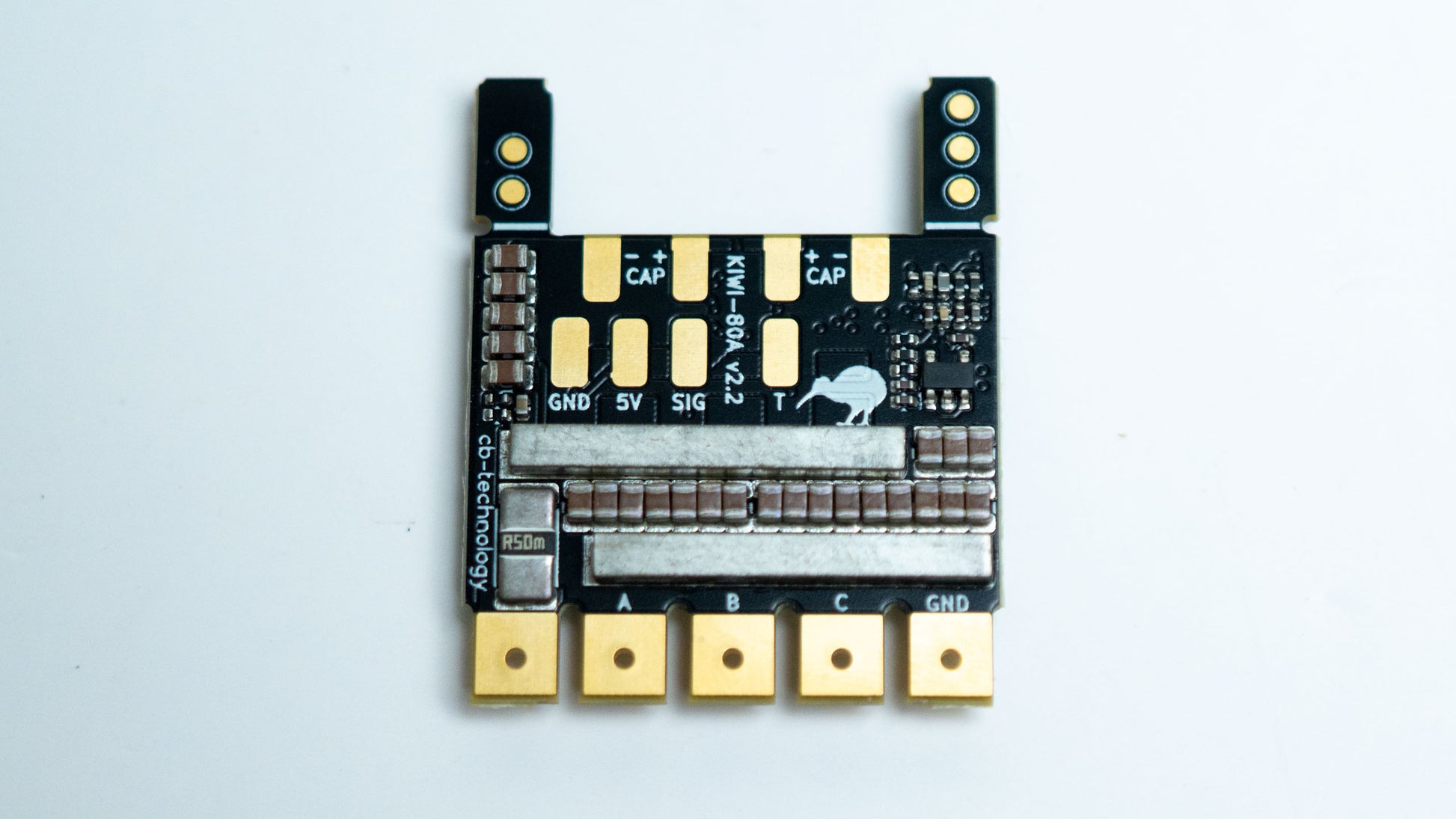

KIWI 80A AM32 Brushless ESC - Built for Combat (V1.0)

KIWI 80A AM32 Brushless ESC - Built for Combat (V1.0)

Regular price $60.00
Regular price $72.00 Sale price $60.00
Sale Sold out

Perfect for 3lb Weapon Motors, 12-30lb Drive and More!

Introducing the KIWI 80A AM32 ESC, a best-in-class combat robot speed controller. Running on cutting-edge AM32 firmware, this electronic speed controller redefines the game with its incredible responsiveness and low-end torque, tailored for sensorless brushless motors. Pairs perfectly with our Battle Ready RDY Hubmotors and ZomBox Drive motors!

Manufacturer documentation available here

The default setting is for single-direction operation; see the "Settings" tab for more info.

Key Features:

  • Continuous Current: 80A (Great for heavy beetle weapons and 12-30lb drivetrains)
  • Voltage Range: 2-8S (6 - 33.6V)

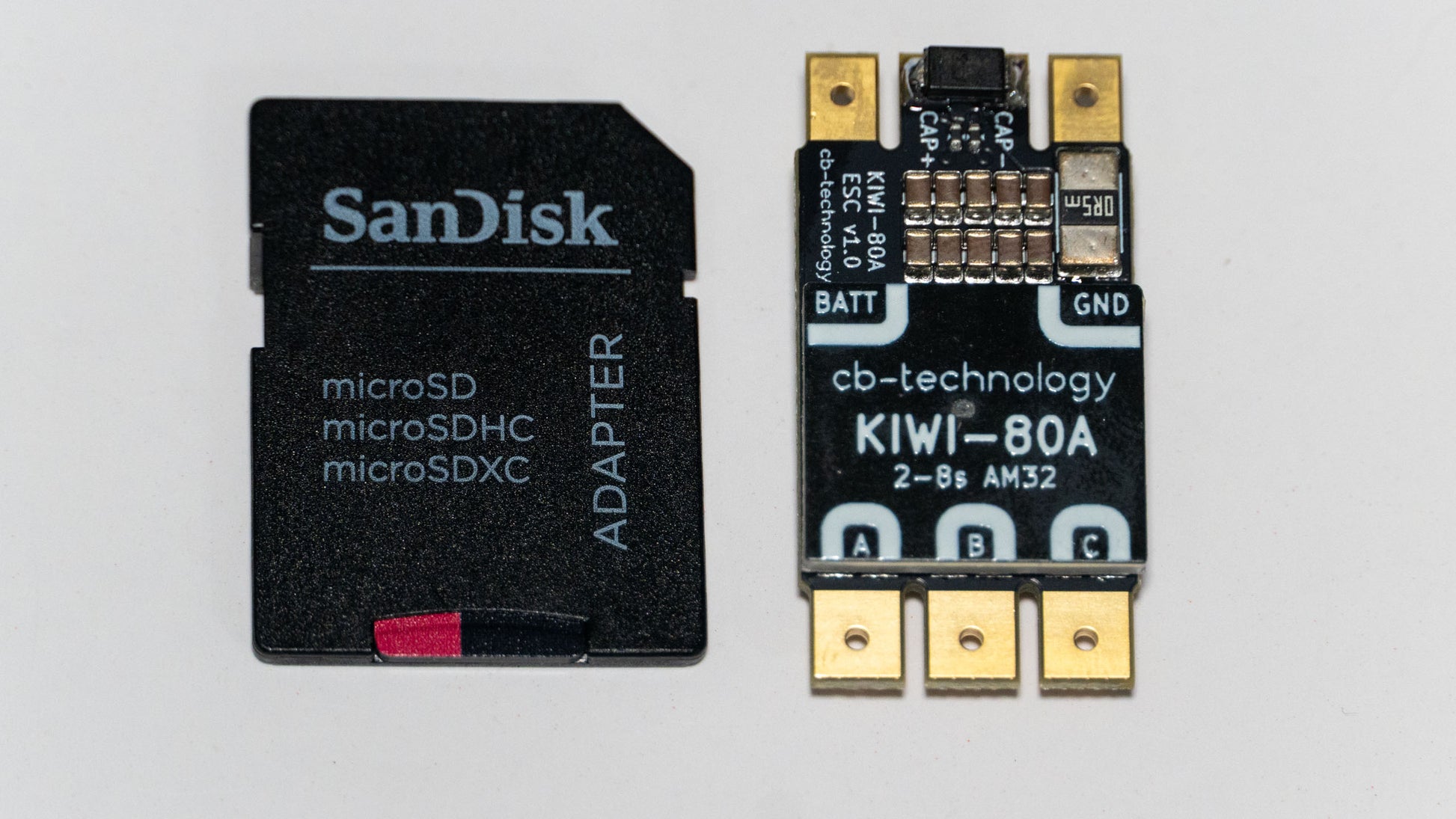

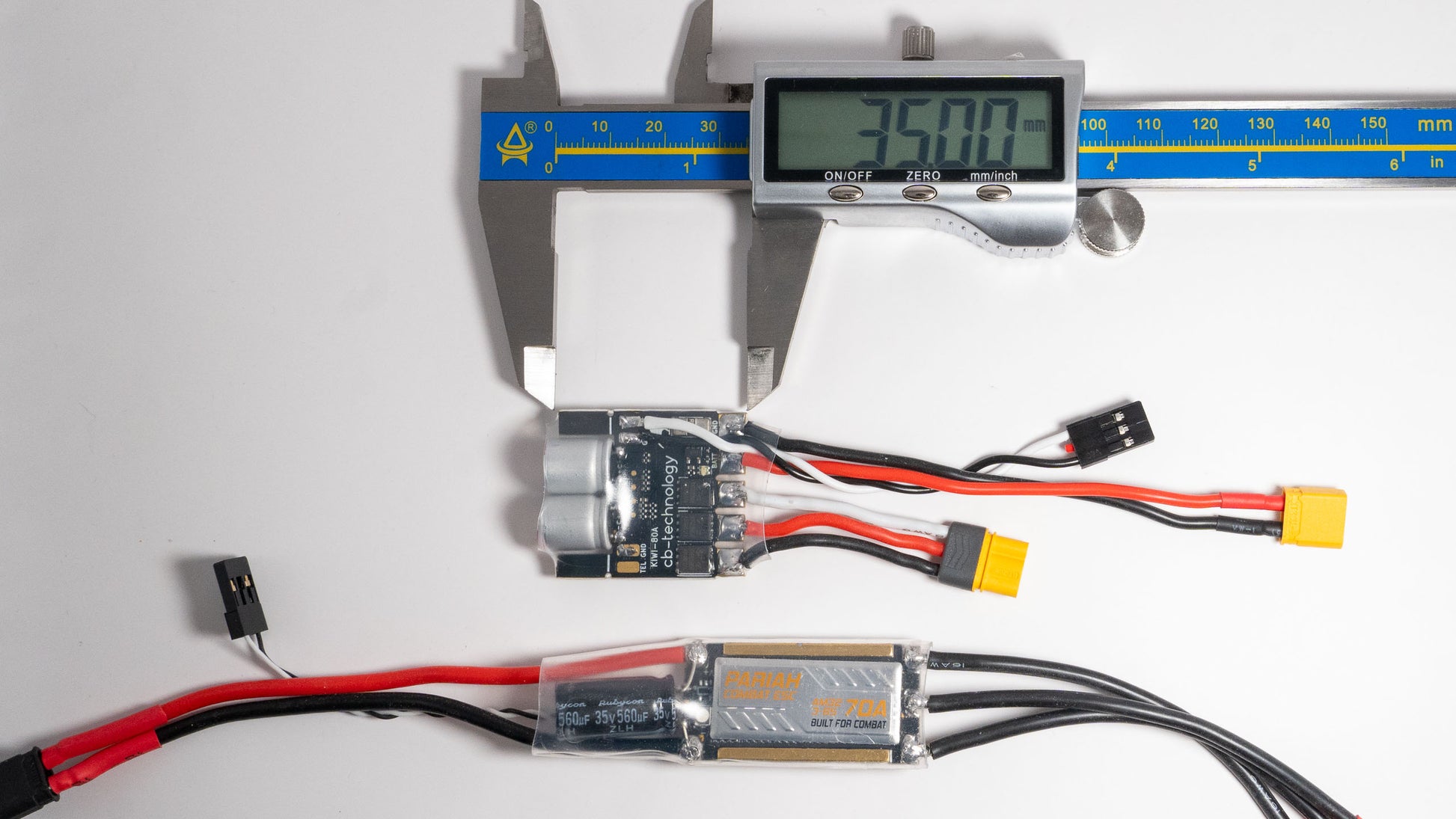

  • Size: 35x18x9mm incl heatsink
  • Weight: ~9g without wires, 14g with all included wires

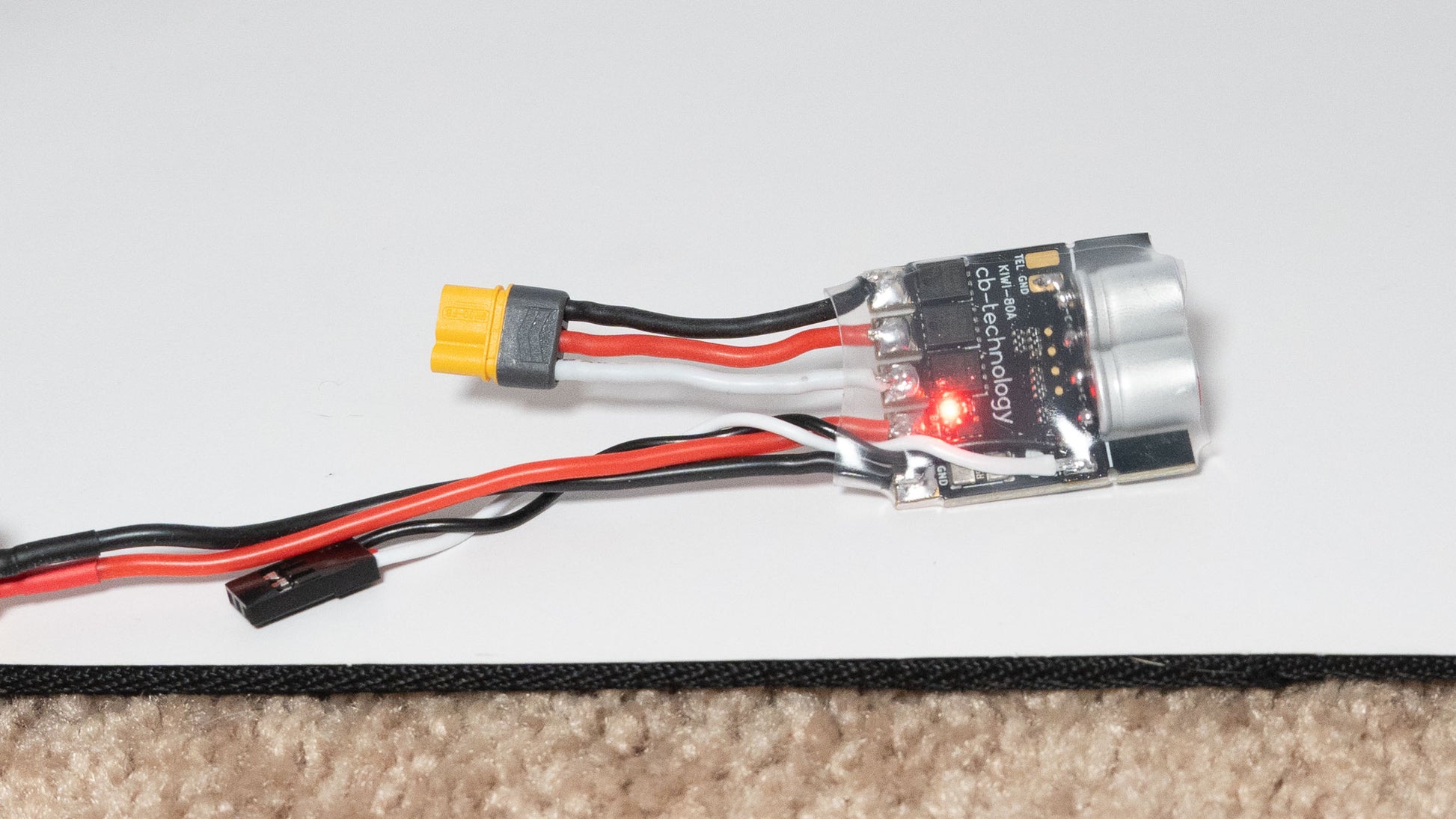

  • RGB LED shows the ESC status and any fault conditions
  • Properly calibrated and user-configurable stall protection, overcurrent, undervoltage, and over-temperature protection
  • KISS standard telemetry output to allow real-time monitoring during usage

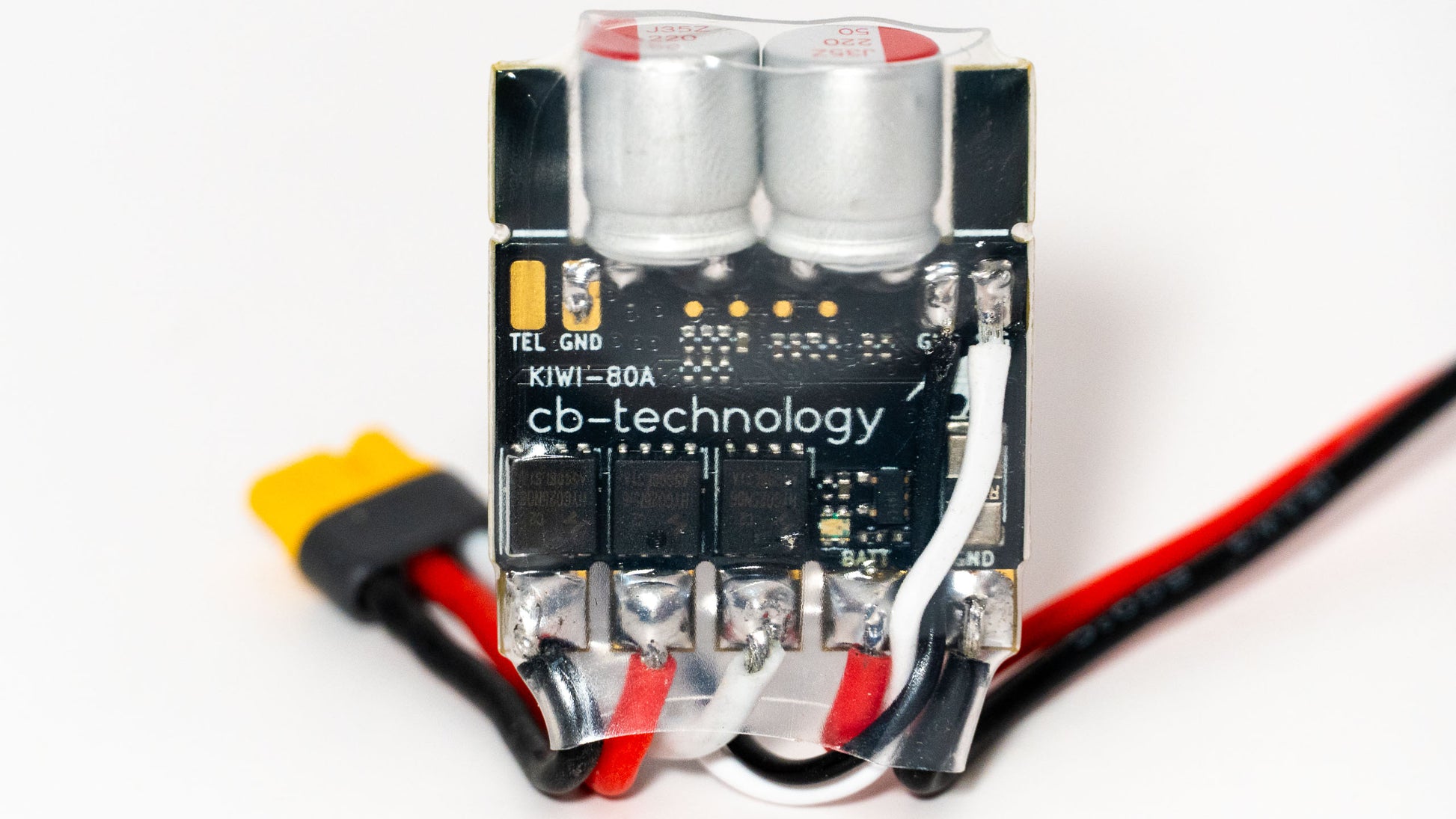

  • Easy-to-solder bulk decoupling capacitor pads

Default Configuration:
- Brushless Weapon (single direction mode, braking disabled)

Need an easy way to wire your bot? Don't fret—pair our ESCs seamlessly with our AIO PD Boards for your drive and weapon needs. This brings a power switch, BEC, and power distribution into one comprehensive solution.

Settings

Changing Settings

In order to change firmware settings, or switch between brushed and brushless operation, you need a USB Programmer (one is included that works with USB-C). Note that to program the ESCs or flash them you must connect the ESC to a battery for power
The screenshot below shows the settings page that you will see if you want to alter the settings.
An explanation of what these settings do can be found here. Note that the motor poles and KV values do not need to match your motor for this ESC to function, the defaults will work fine for most motors. Furthermore, I strongly recommend watching this video before messing with these settings.

If you experience issues where your motor is not reaching full speed or spinning up correctly, especially for inrunners (which have a lot fewer poles) and higher KV motors, you will just need to change the pole and KV settings to more closely match your motor.



Default Firmware Config - Brushless Weapon, AM32 V2.19
