Pro 24mm Gearbox Mount Plate (Pair)

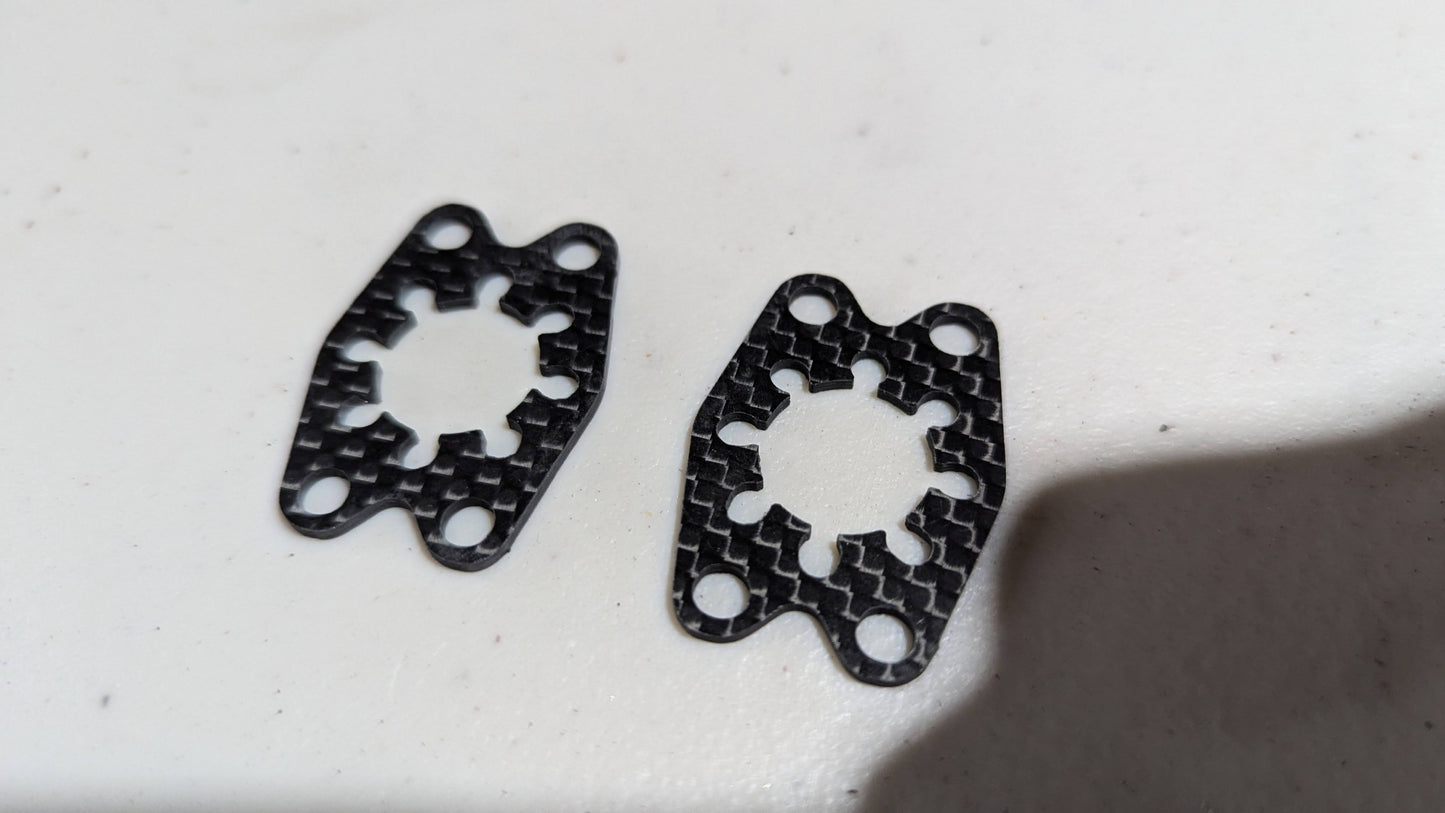

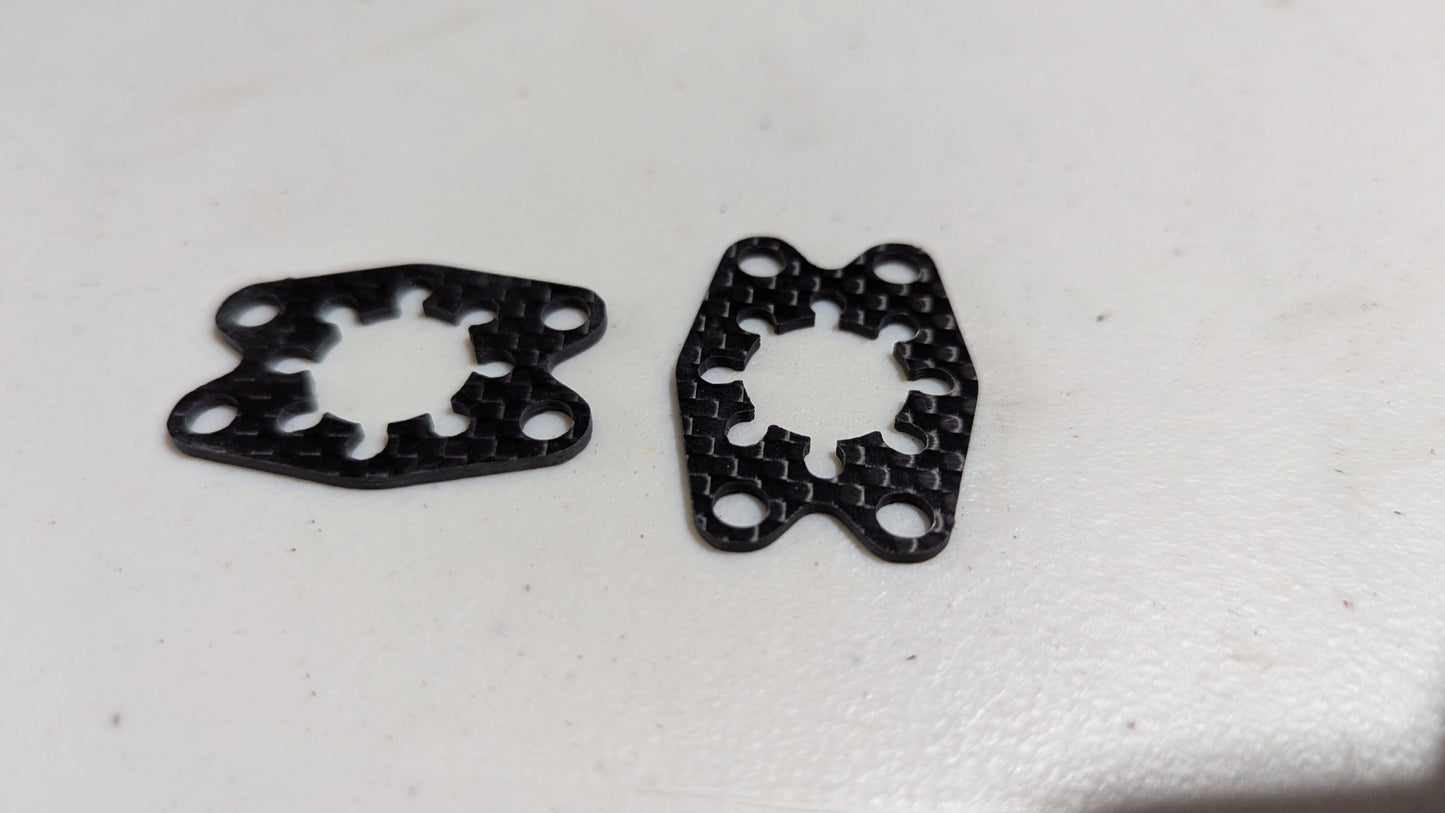

Looking for a way to mount your Blitz Pro or DartBox Pro motors? These lightweight and strong carbon fiber mounting plates will be just what you need!
CNC routed from 1.5mm CF, these mounts are perfect to secure the face of our standard 24mm planetary gearboxes! These work with M3 screws on an 18mm bolt circle or 19mm bolt circle. NOT for M2 screw mounting.

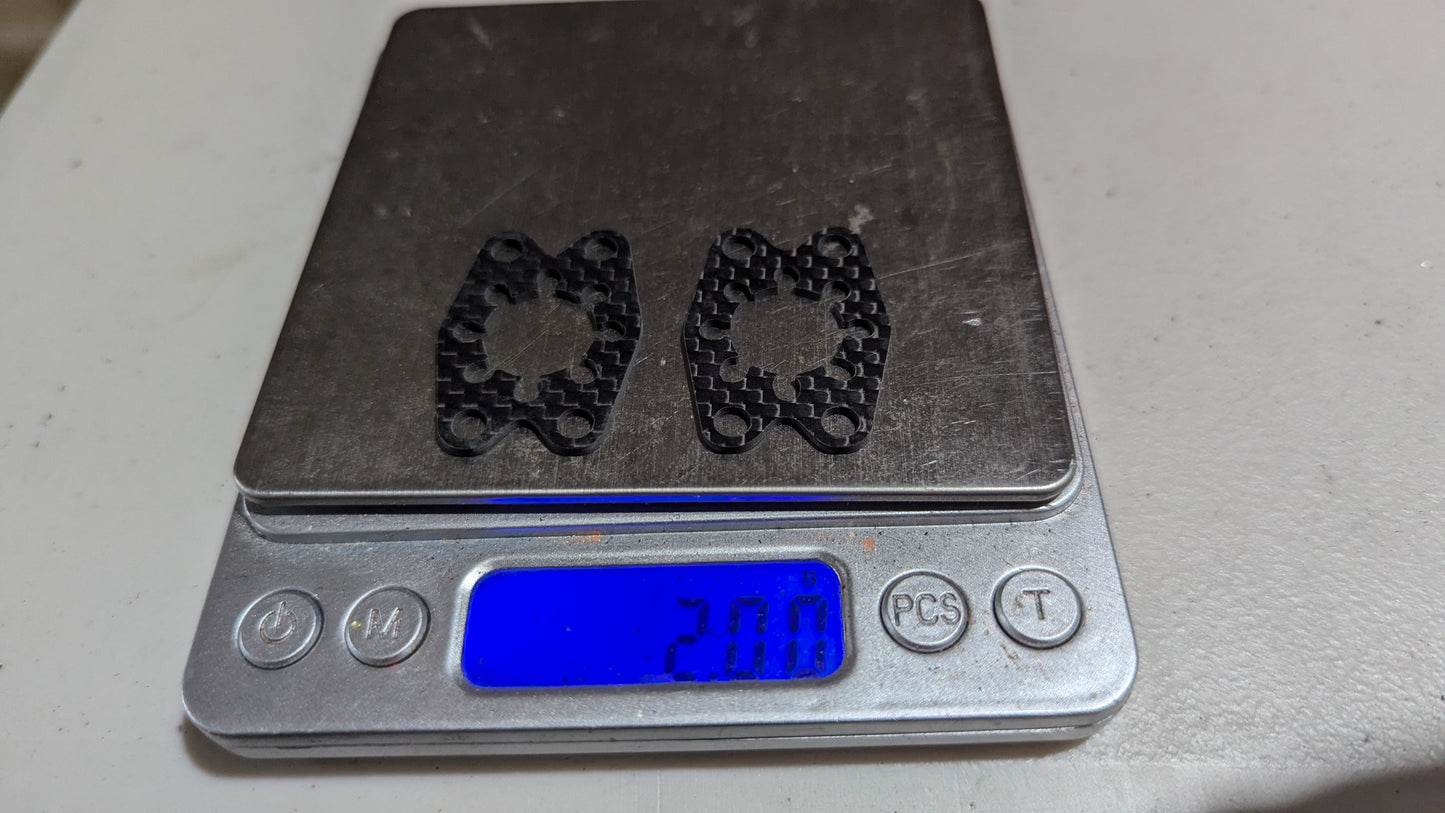

Weight is just 2 grams for Two (2) plates!

CAD model coming soon!

Included in each purchase: Two (2) CF mount plates.

You will need 4X M3 x 6mm thread length screws to mount a motor and 2X or 4X mounting screws. Flanged button head screws work great for motor mounting.

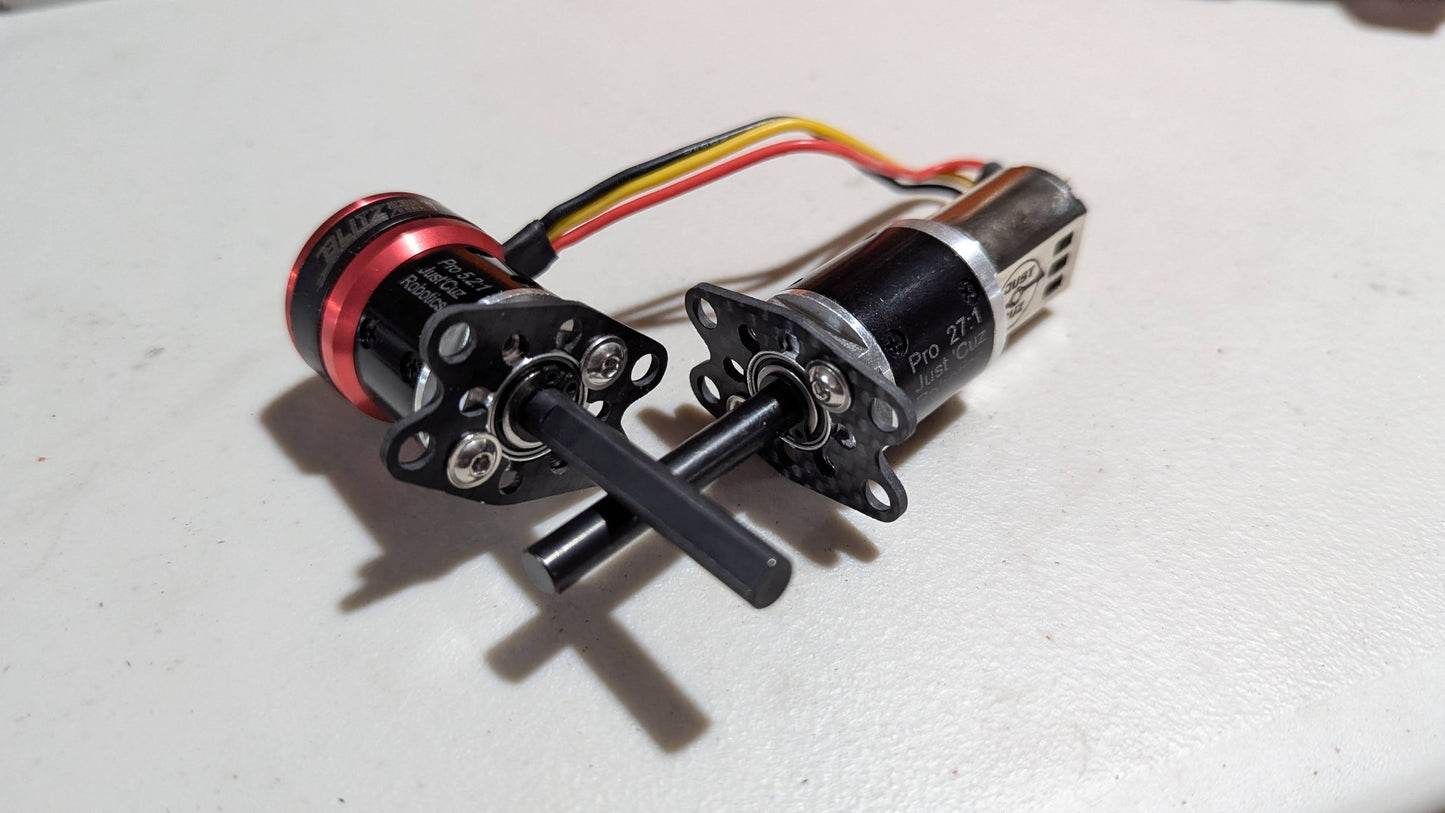

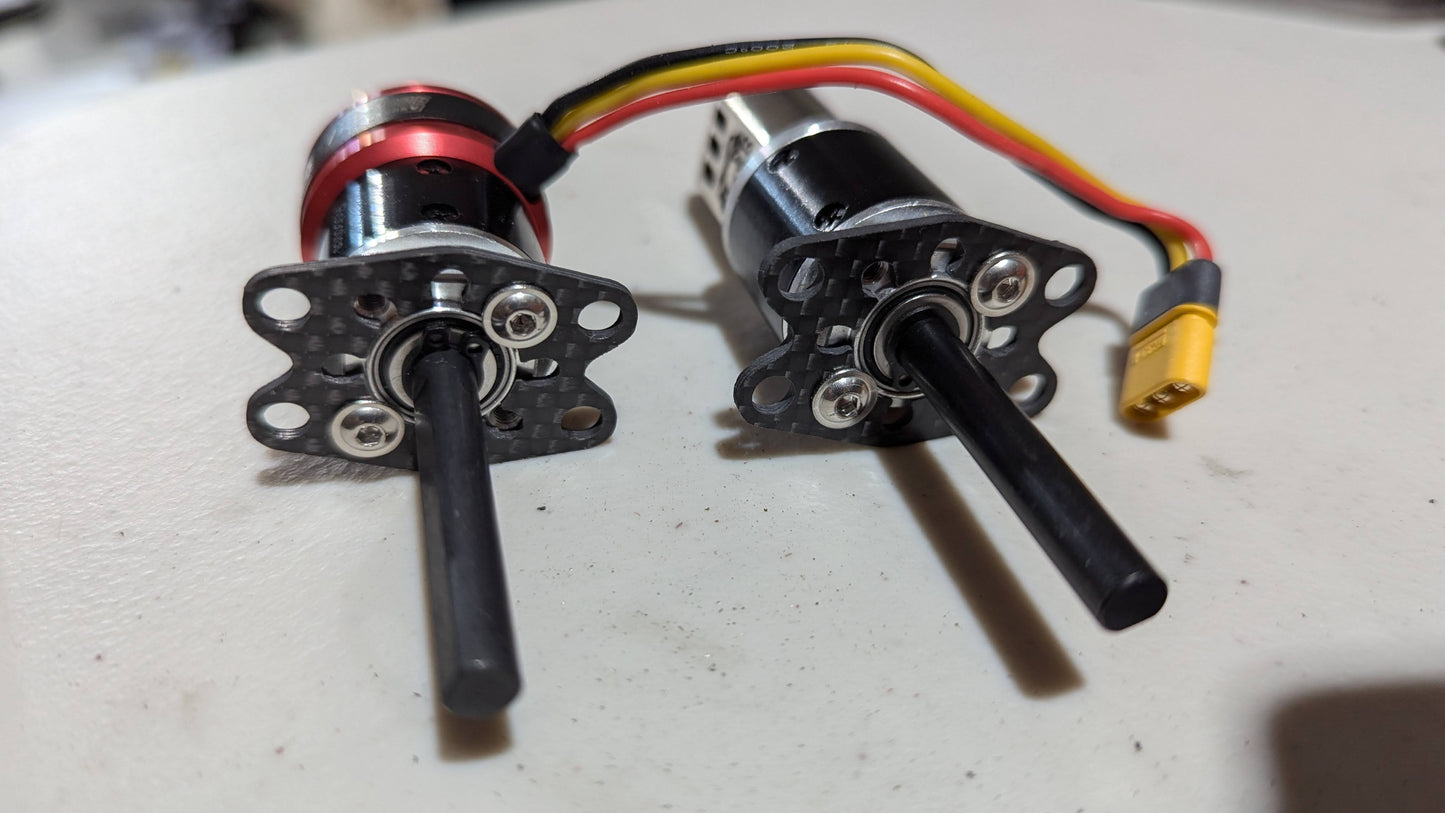

These mounts are compatible with:

• DartBox Pro gear motors
• Blitz Pro gear motors
• Pro 24mm gearboxes sold here (5.2:1, 27:1, and 139:1)
• Repeat Max with M3 tapped face plates (not the older M2 ones)

WILL NOT work for Mega Sparks as these use M2 face screws.

Usage

Chassis Attachment Options:

• #6-19 Plastite screws recommended for mounting to most 3D printed parts, UHMW, or HDPE chassis

• Plates can be countersunk easily to work with flathead screws as well, but this may weaken the carbon fiber so button heads are preferred.
