Puppy Power Switch - Fail On Screw Switch

Reliable Power for Combat Robots 3 pounds and up!

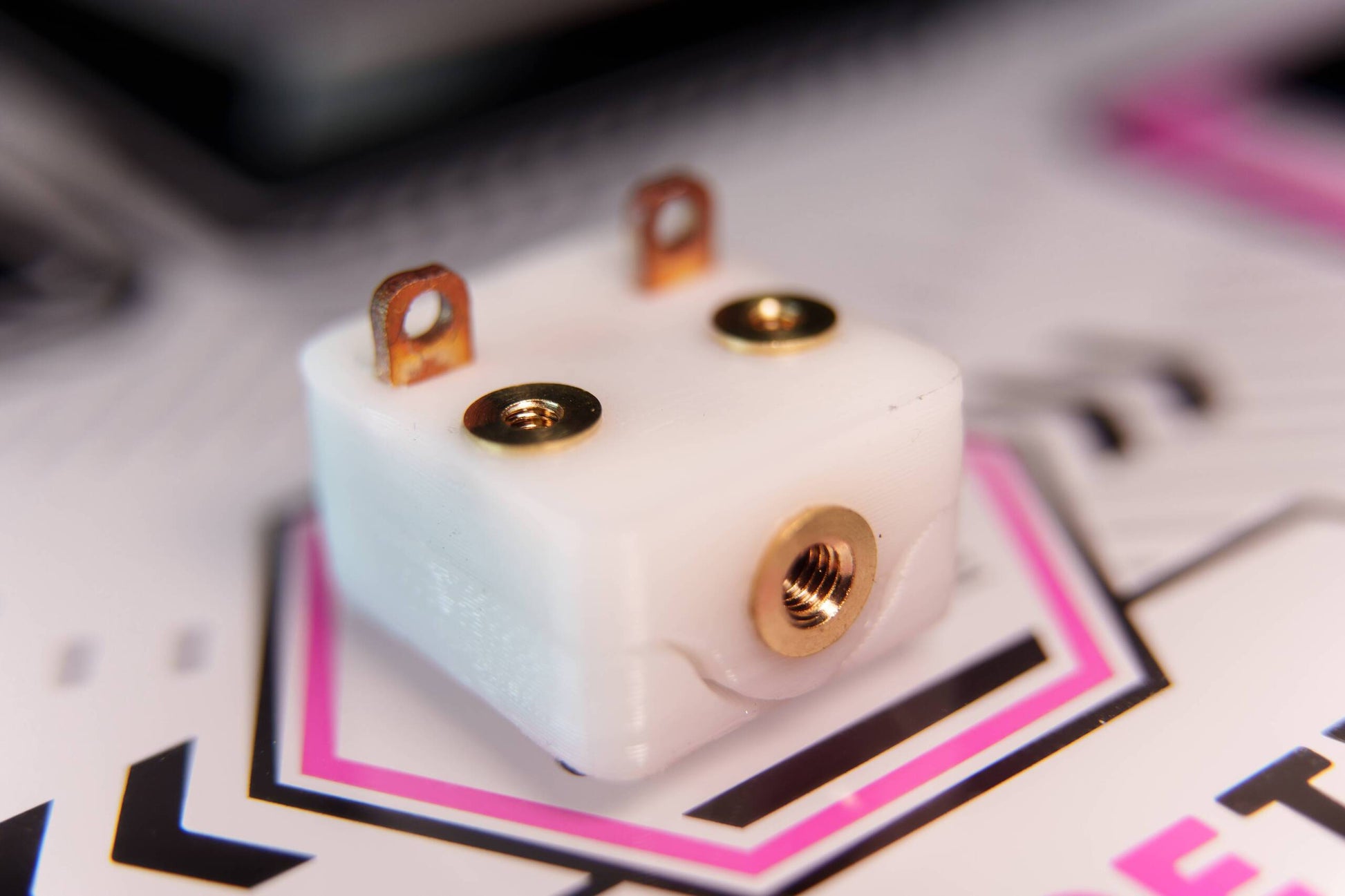

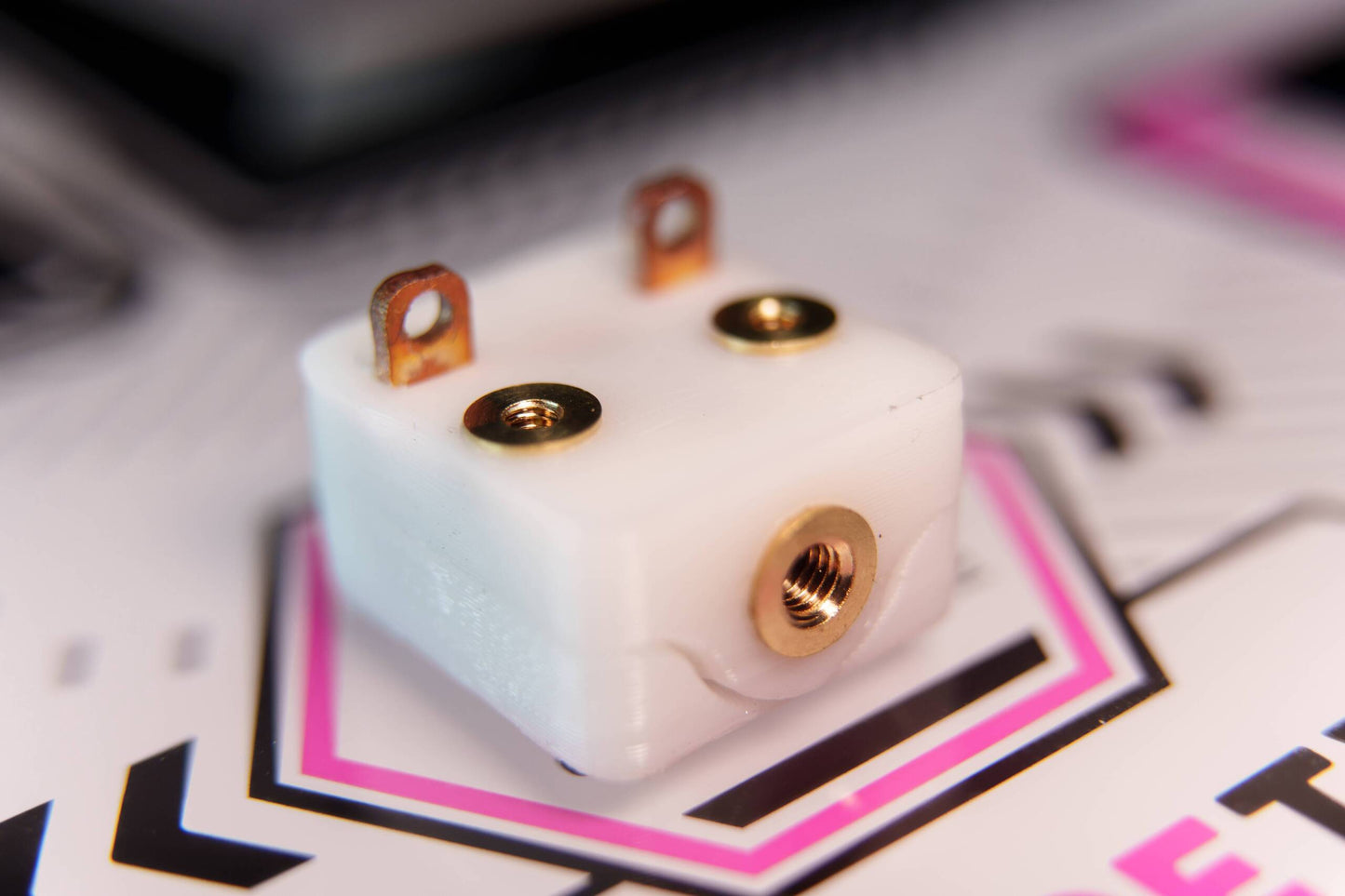

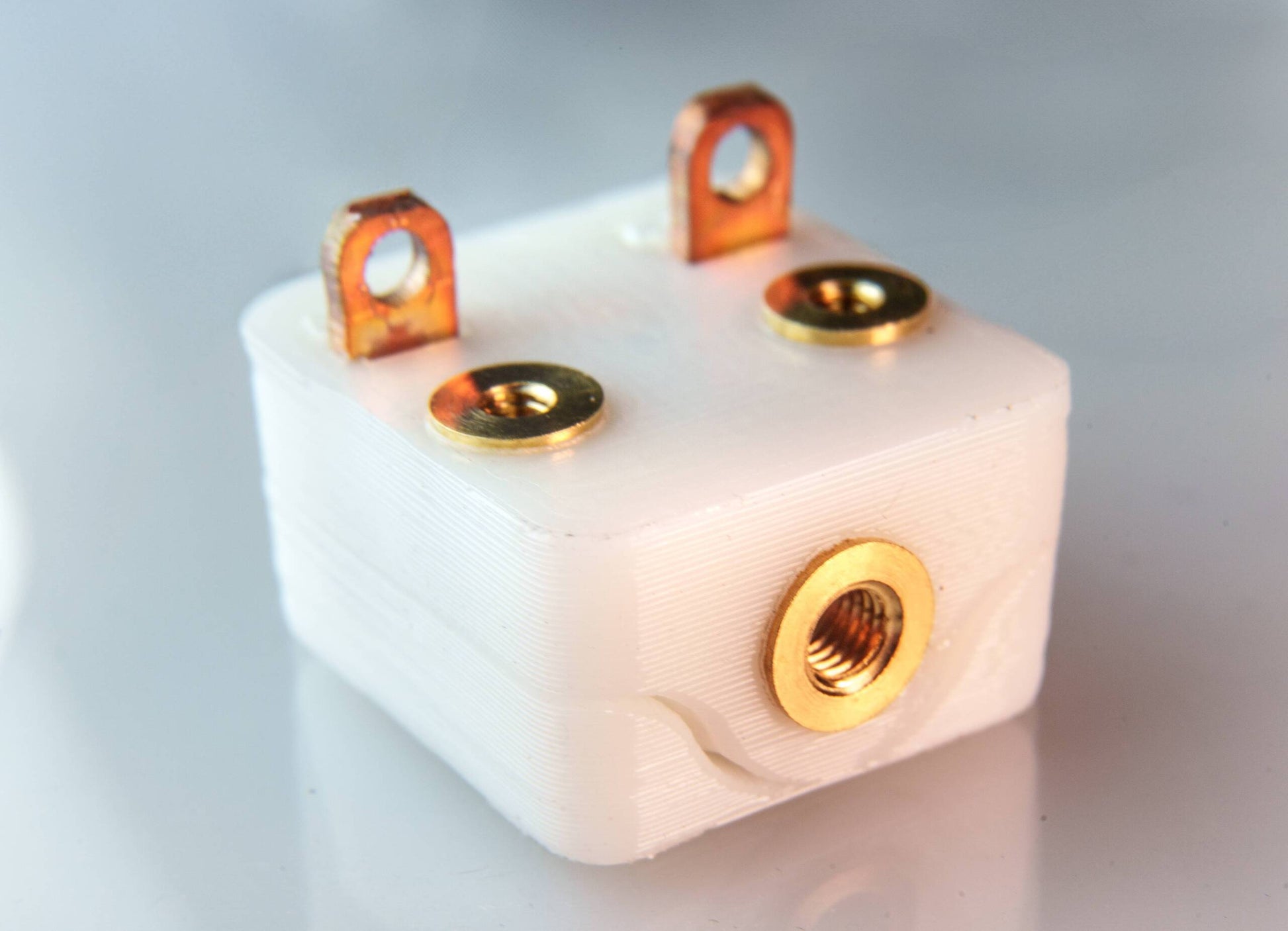

Designed by SAGC, the team behind Golden Dumpster-winning bot Chainsaw Kitty, the Puppy is a unique style of screw switch with reliability as the main priority.
The electrical connection is maintained entirely by springs compressing copper contacts rather than screw threads. The screw is only used to pull the contacts apart to turn the switch OFF, but even if the threads strip, the switch can stay powered ON, significantly reducing the chances of a fight lost due to a faulty switch.

Photos by Dakota Rogers (kema)

Never solder to the switch while assembled!

Please read the setup guide before use.

The reference CAD and user guide are here: https://github.com/shrine-priestess/puppy-switch

Key specs:

• Weight: 6.5 grams (0.23oz)
• Size: 18mm x 20mm x 10mm (plus 3.75mm copper stick-out)
• Drive: 2.5mm hex, screw is captive and cannot escape the casing
• Mounting: 2x threaded M2 inserts in case, 11mm center-to-center distance
• Wiring: Copper tabs accept up to 16 AWG through-hole, larger gauges can lay flat or be partially through-hole
• Voltage: Tested up to 6s LiHV (26.1v)
• For Use In: Any beetleweight robot!
• Switch disassembles easily for service!
