12mm Bearing Pair (for 12mm Hex Hubs)

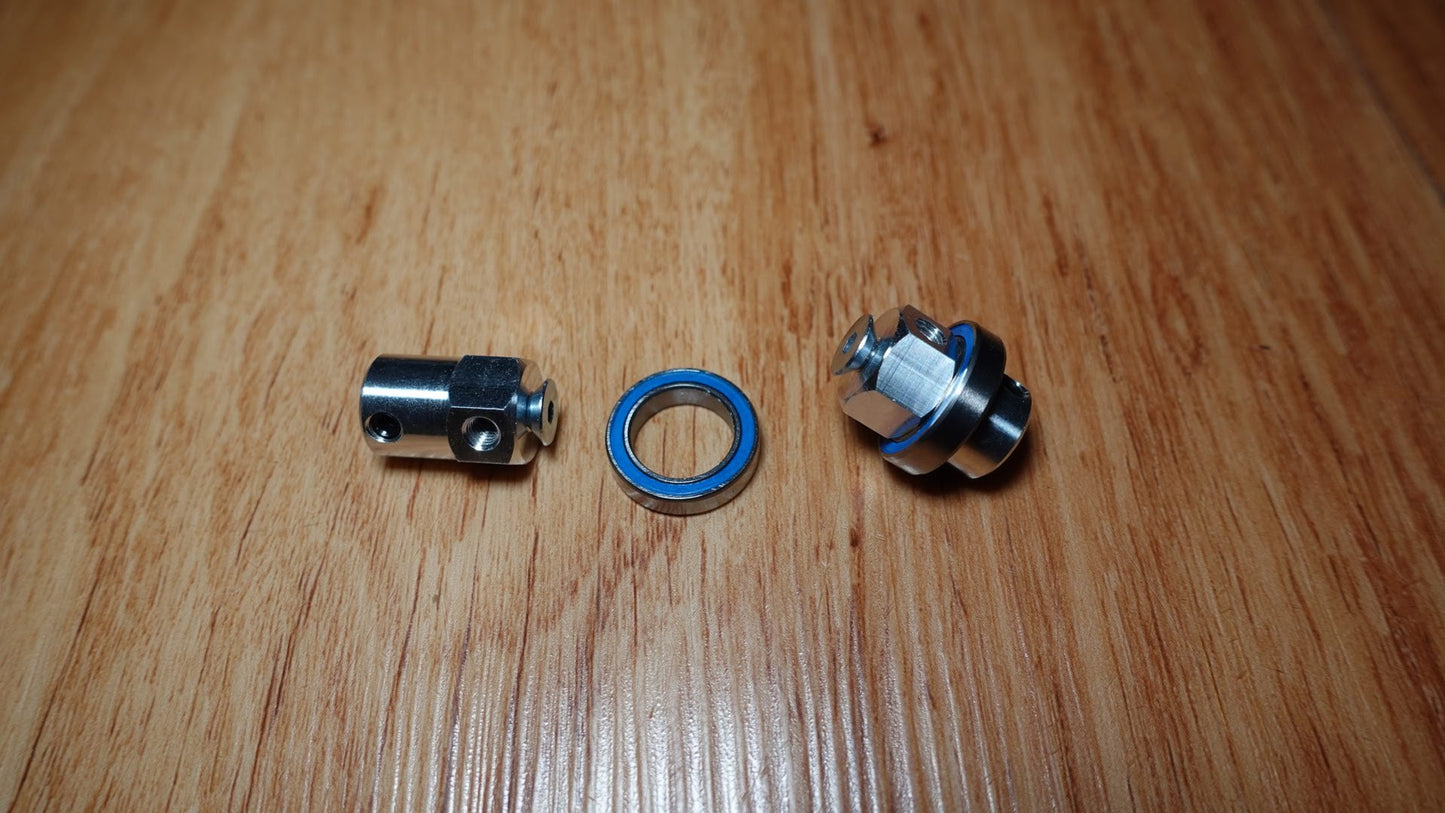

These bearings are perfect to pair with our 12mm Hex Hubs, allowing your wheels or mechanical systems to take a serious beating. Support high-load shafts or exposed drive wheel hubs with these bearings set into your frame to ensure your gearbox and motor shaft can survive massive impacts!

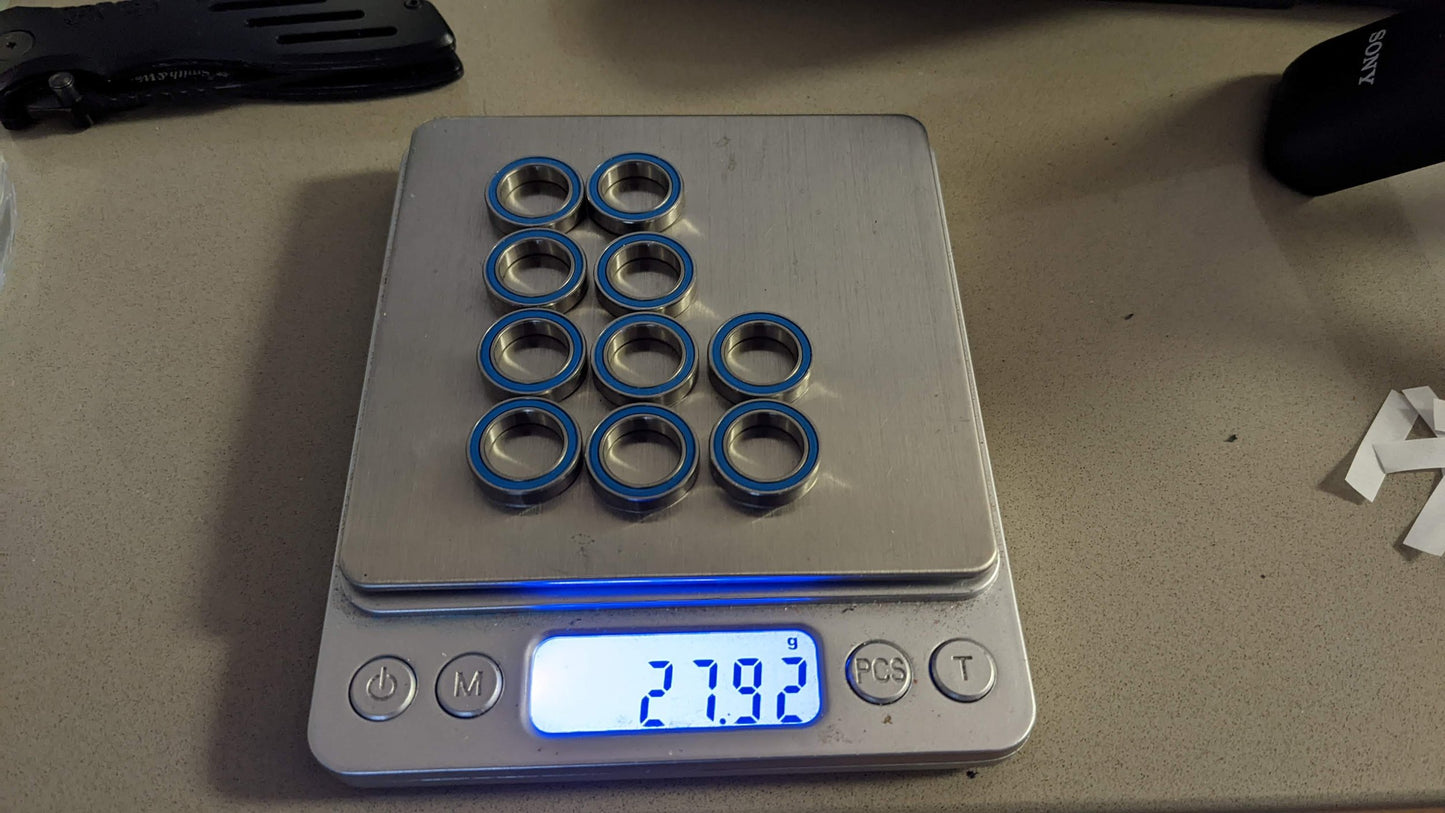

12mm ID x 18mm OD x 4mm Width. Under 3 grams each!

Each package contains two (2) bearings! Hubs sold separately.

CAD model available here.

Specifications

• Weight: 2.8 grams (0.098 oz) each, 5.6 grams (0.196 oz) per pair
• 12mm Inner Diameter x 18mm Outer Diameter x 4mm Width
• ABEC 3 Rating, P6 Precision, Chromium Steel races
• Rubber seals to keep out dirt and debris
• Permanently lubricated for the lifetime of the bearing
• CAD Model Download Here

DartBox gearmotors and hubs are not included.
