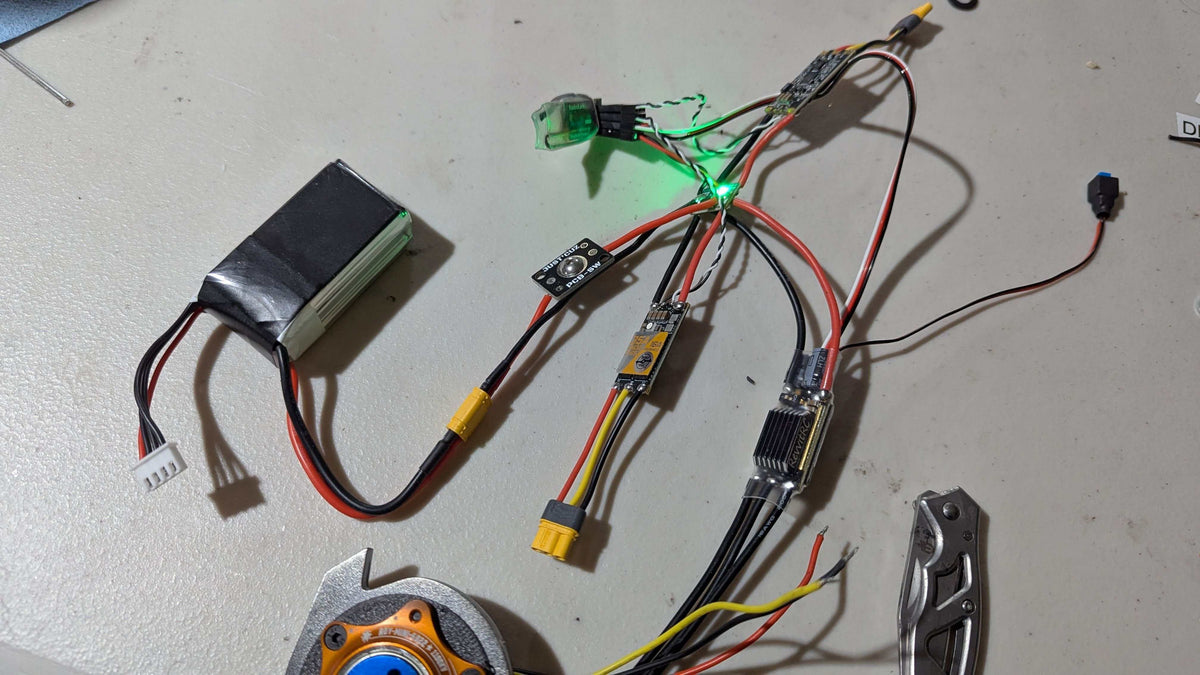

Micro PD Board - Ultra Compact Wiring Made Easy!

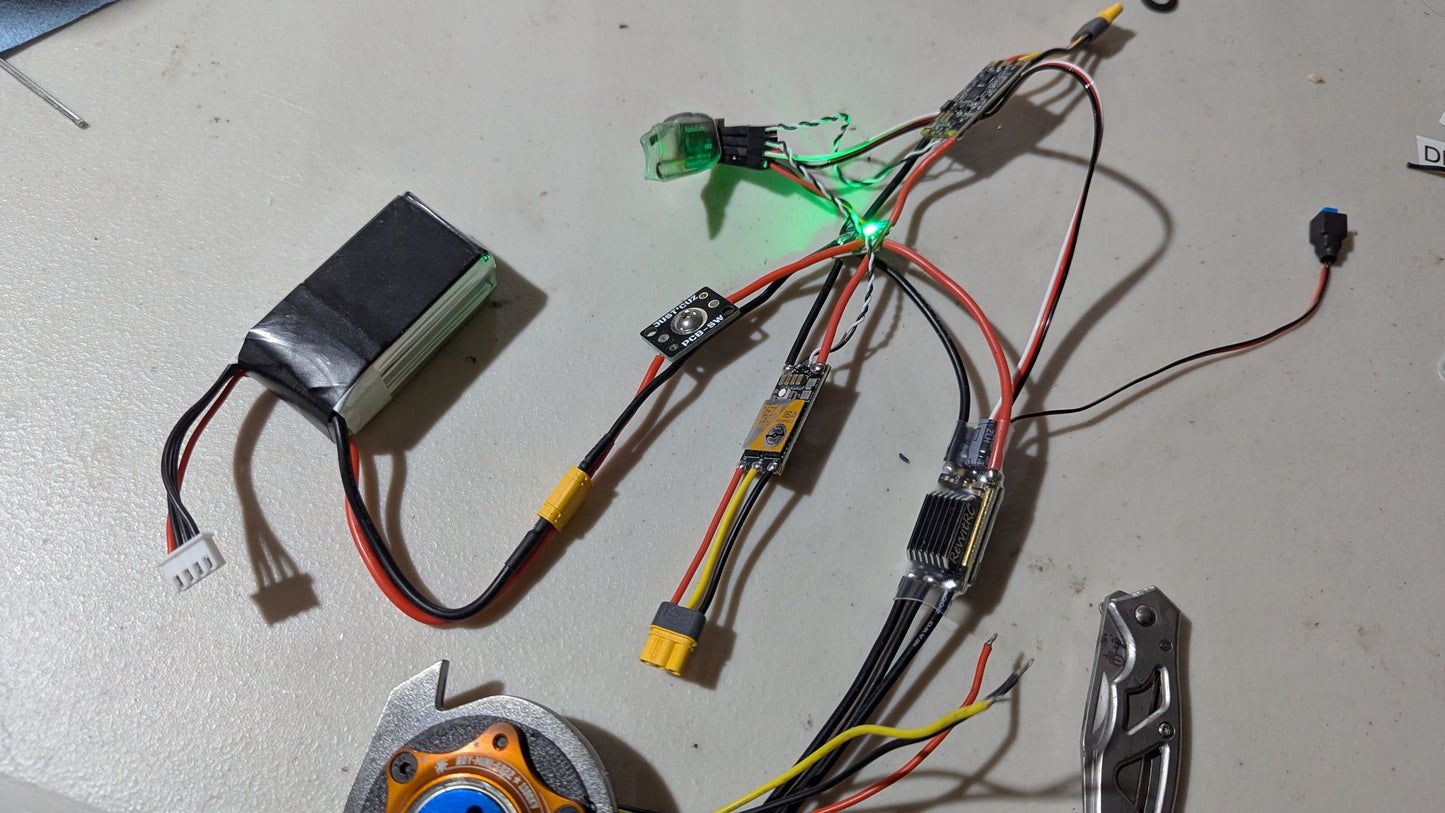

Super Compact Wiring for Brushless Bots!

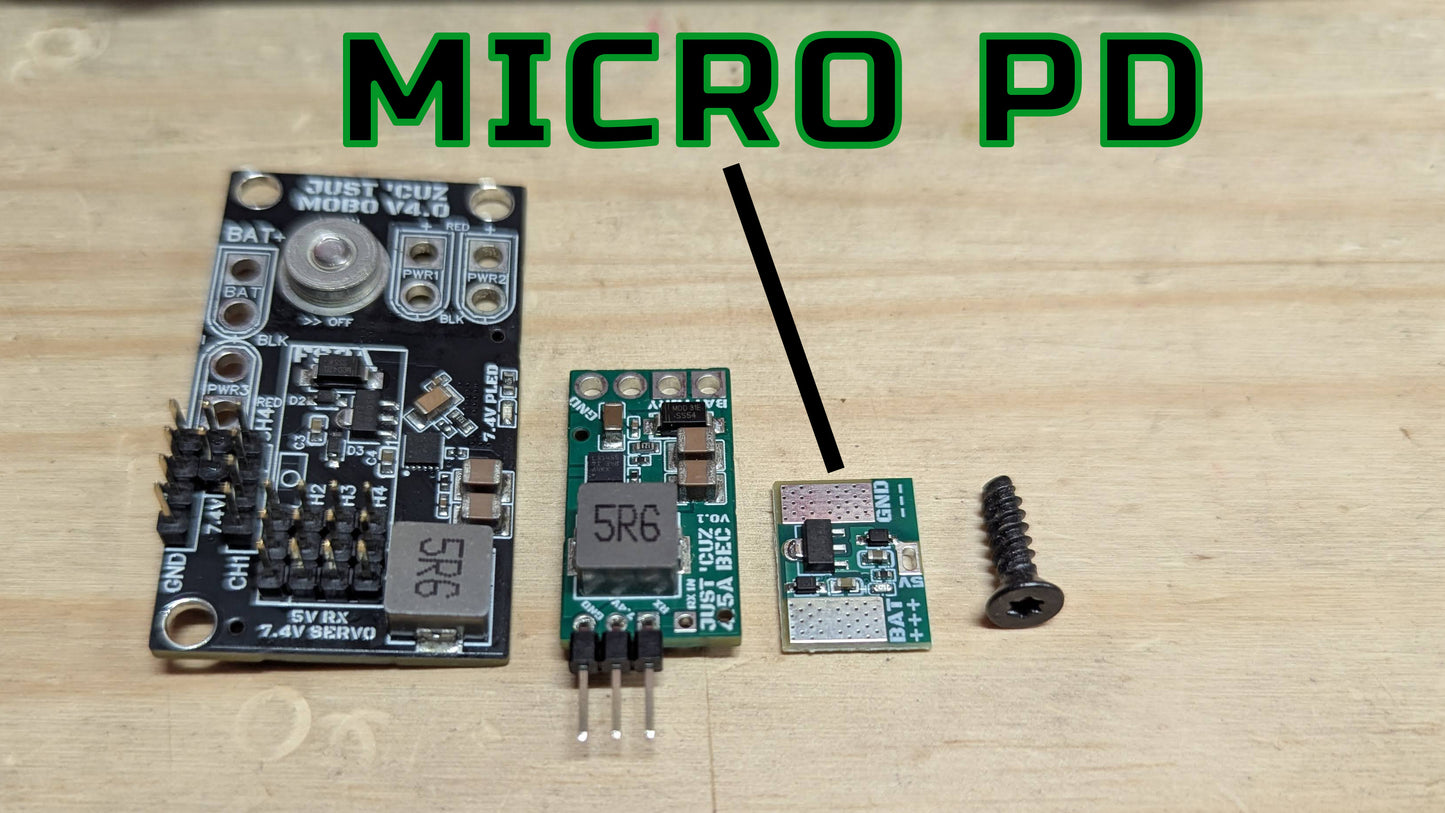

Does your bot have no room for a big bulky AIO PD board or connectors? For years now Just 'Cuz Robotics has been the go-to for builders new to wiring their bots, with our fantastic and versatile AIO and Switch PD boards allowing easy use of XT30U connectors. However, some advanced users think connectors are a waste of space and weight. If you're of that mindset, this is the perfect board for you! This 15.5mm x 12mm minuscule PD board has an onboard BEC, and power LED, and large pads to solder all your power wires to! Just add wires to the components you need, then use the BEC 5V output to power your receiver, and add a power cutoff like our PCB Switch.

3D Model Available Here

What's included per purchase:

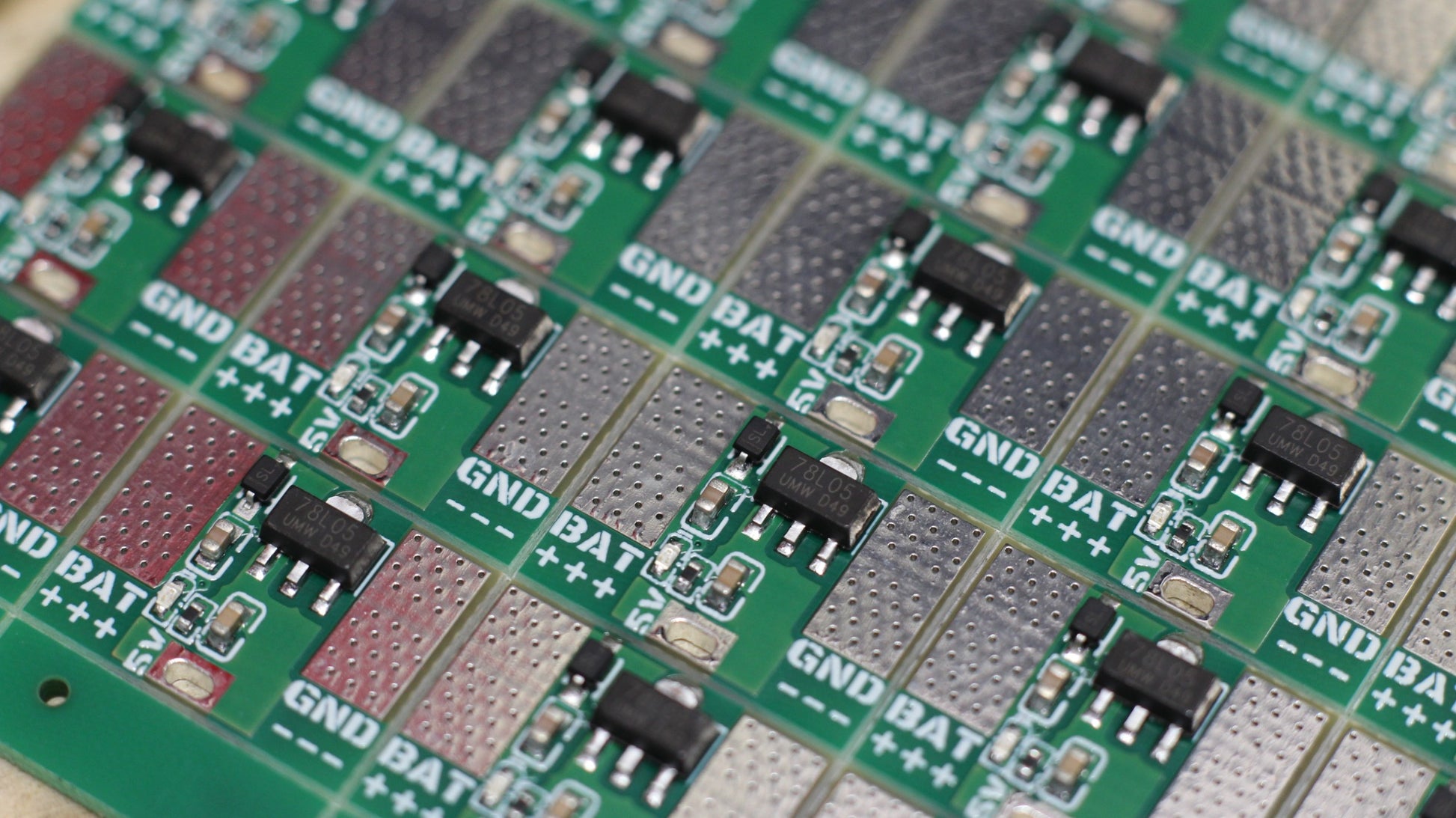

1. One (1) board with 5V regulator, LED, and related SMD components preassembled

Recommended Addons: Servo Jumper Cable and PCB Switch.

Features

Features:

• 5V BEC capable of handling input voltages of 6.5V to 36V (2S to 6S LiPo recommended) to power a receiver or other 5V devices up to 100mA

• Convenient bright green power LED for power indication
• Big copper pads for increased current-carrying and heat dissipation
• Can connect as many other devices as you wish to the copper pads on the board

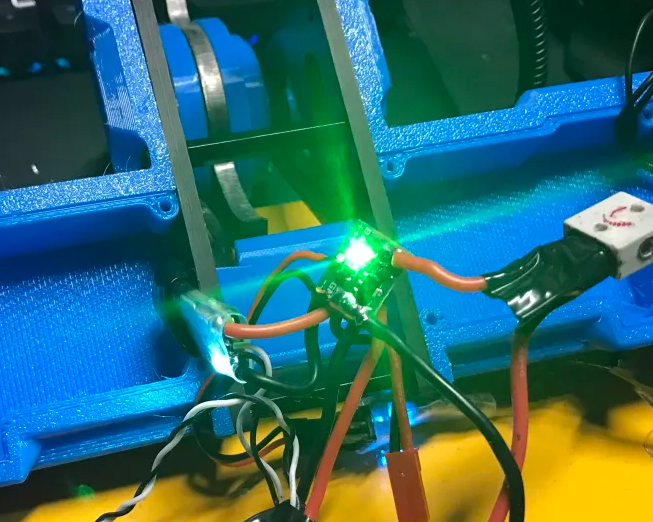

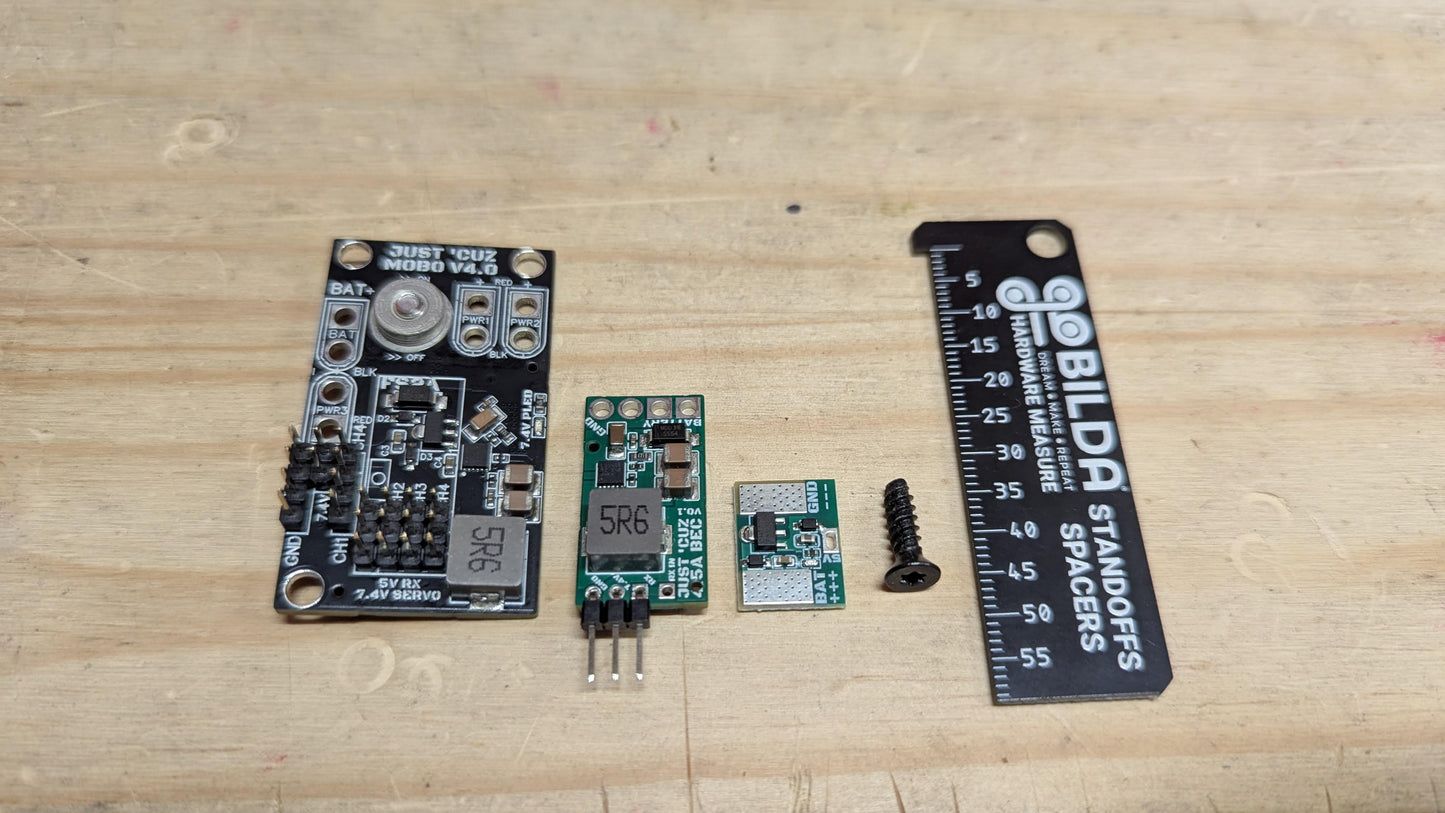

• Size is just 15.5mm by 12 mm

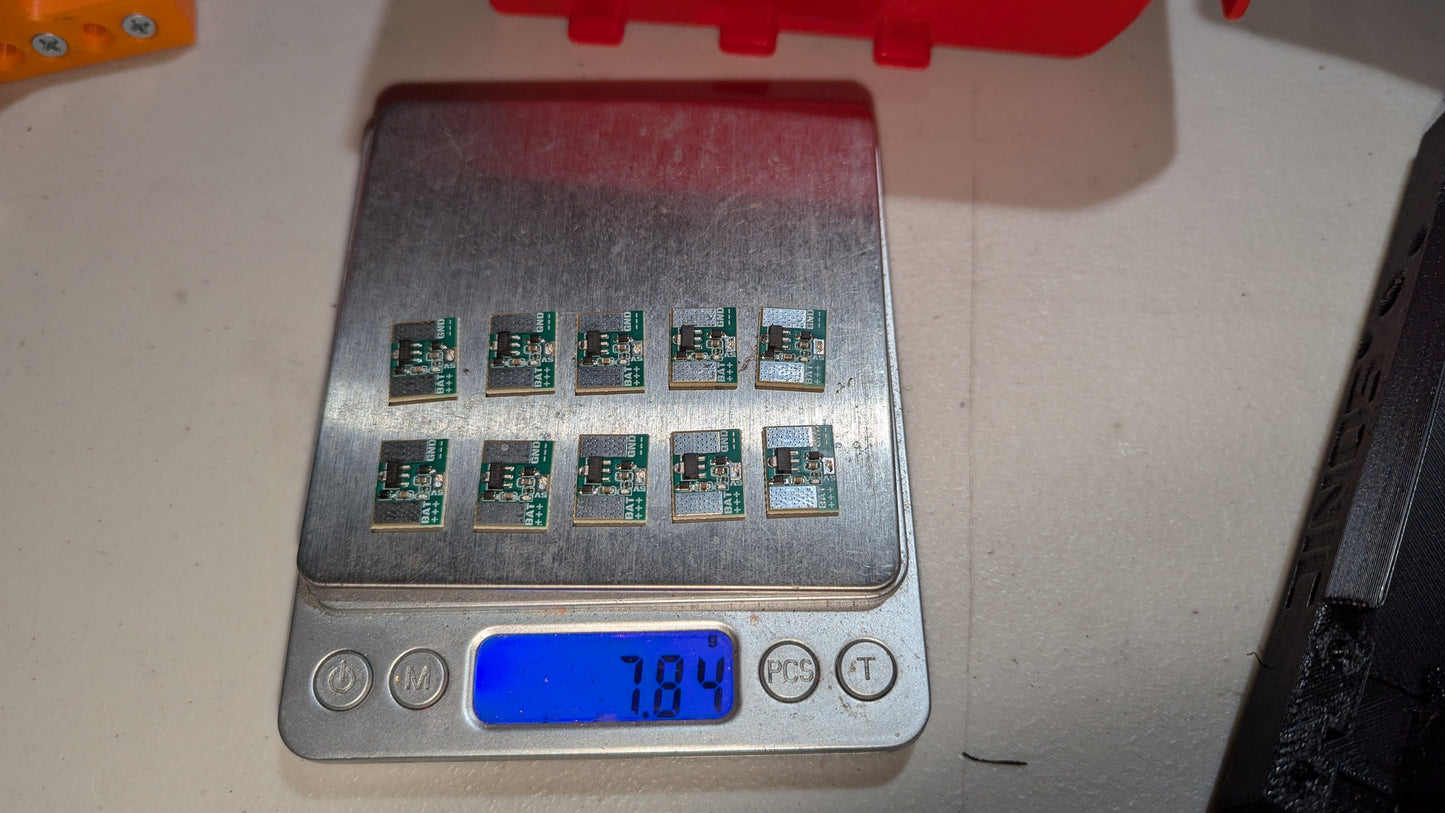

• Weight of just 0.8 grams
• Protection diodes on power input and 5V output reduce the risk of voltage spike brownouts
• Clear labels for all wires for easy assembly and troubleshooting
• Perfect for experienced builders, soldering experts, and those whose robots contain no free space!

Safety

Warning: combat robots are not toys! They are extremely dangerous. Click here for a safety video.

Operation with a battery at a higher voltage than 6S, or drawing too much current from the BEC without added cooling, may result in damage to the 5V regulator. It can be replaced by an off-the-shelf part, Contact Us for more info.

While this PCB is designed to safely operate inside a combat robot, it may get very hot. Touching it during, or shortly after operation, can result in serious burns.

Testing a robot with an active spinning weapon should never be done while maintaining a line of sight with the robot. Ideally, you should be testing inside an enclosed box or arena with at least 1/4" thick polycarbonate windows or top to see through, and 1/2” or thicker plywood or MDF construction. Operation (Including testing) outside of a suitable arena or test box could cause serious injury. By purchasing this product you acknowledge that you are responsible for the safe use of this product and that Team Just ‘Cuz Robotics or its employees are not liable for any injuries or damages.
