COMPETITIVE OUT OF THE BOX

Unlike our SSP kit, this bot doesn't pull its punches. Weapon first, aggressive, hard hitting, and fast. The DRV kit is easy to repair, but a challenge to master. Soldering skills are a must, and common sense safety is paramount. This is no toy, it can cause serious injury if mishandled.

Support our small business, and American manufacturing!

DRV kit frames are CNC Machined in-house in New Hampshire using U.S. sourced materials, and American machines. We use an AvidCNC Router from Washington and Airweights vacuum table from Colorado. 100% of all design work is done right here in the USA.

Derive Victory with DRV

New Kit Just 'Cuz Robotics
DRVDrum Spinner Combat Kit

A podium-ready drum spinner kit.

A complete, battle-ready drum spinner built around the SCARAB hubmotor drum. Bolt it together, charge up, and put weapon-class energy on the field.

Interested? Click Here!
260MPH
Drum Tip Speed
>950JOULES
Peak Weapon Energy
19FT/S
Drive Speed
UHMW
CNC Machined Frame
DRV Kit drum spinner combat robot, full 3/4 view
[ WATCH ]
See It Run
[ 01 ]
The SCARAB Drum
S7 Tool Steel Teeth

Hardened S7 tool steel teeth take the hits and keep biting. Built to survive impact after impact.

Aerospace Aluminum Hub

A machined aerospace-grade aluminum hub keeps the drum light and rigid.

Integrated 2222 Brushless

A powerful 2222 brushless motor lives inside the drum itself. Direct drive, maximum spinning energy, no belts.

260 MPH Tip Speed
260 mph

All that energy spun up to weapon-class velocity for the concussive hits that decide matches.

Peak Weapon Energy
>950 Joules

Roughly equal to a 10-pound bowling ball thrown at 46 mph, or a 256 mph baseball pitch.

Drum Dimensions
65 × 100 mm

65 mm diameter (2.6 in) and 100 mm wide (3.9 in) for a wide, hard-hitting contact face.

SCARAB hubmotor drum close-up showing S7 tool steel teeth
[ 02 ]

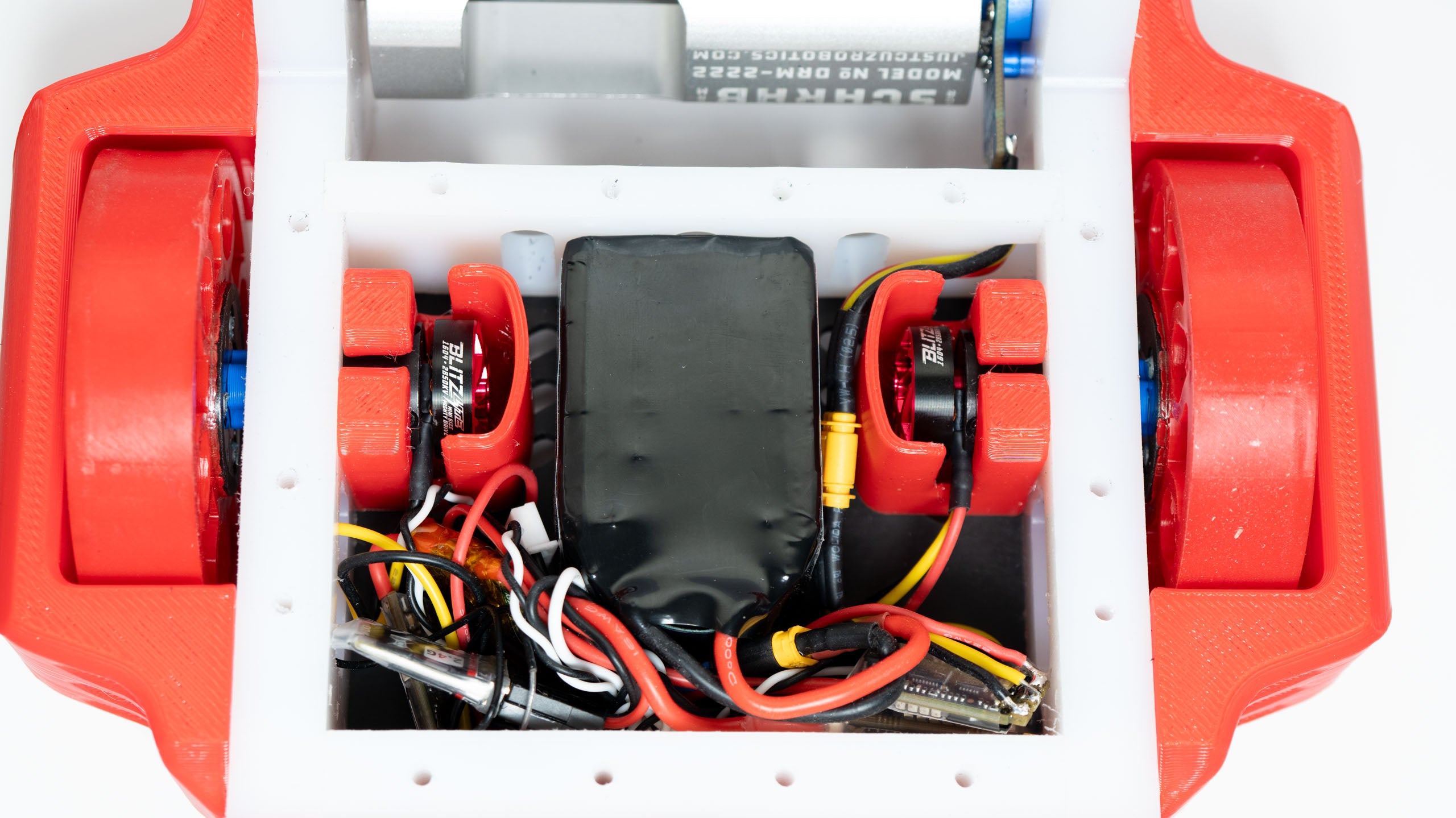

Drive & Power
Blitz Lite 2850kv
19 ft/s

Twin Blitz Lite 2850kv drive motors deliver quick, controllable acceleration and a 19 ft/s top speed.

Precise Low-Speed Control

AM32 ESC firmware on drive gives smooth, precise control at low speeds, so you can line up the perfect hit instead of fighting the throttle.

4S Power System
4S

A 4S (14.8V nominal) architecture feeds both the weapon and drive with the headroom to push hard, match after match.

Custom 1200mAh LiPo
1200 mAh

A custom 4S 1200mAh LiPo pack tuned for this kit. Compact, balanced, and ready to fight.

[ 03 ]
Ribbed Urethane Wheels

70mm wheels with a molded 50A urethane tire and a molded nylon hub, built with a unique ribbed design to maximize durability and keep grip on the box when hits start landing.

Diameter 70 mm
Tire Molded 50A Urethane
Hub Molded Nylon
Tread Unique Ribbed Profile
Built For Durability + Grip
70mm ribbed urethane wheel close-up
[ 04 ]
Built To Take A Hit

The DRV is built to survive the worst the box can throw at it. Tough where it absorbs impact, stiff in the frame.

CNC Machined UHMW Frame

The frame is machined from solid UHMW for maximum toughness. It flexes, absorbs impact, and shrugs off hits that crack rigid materials.

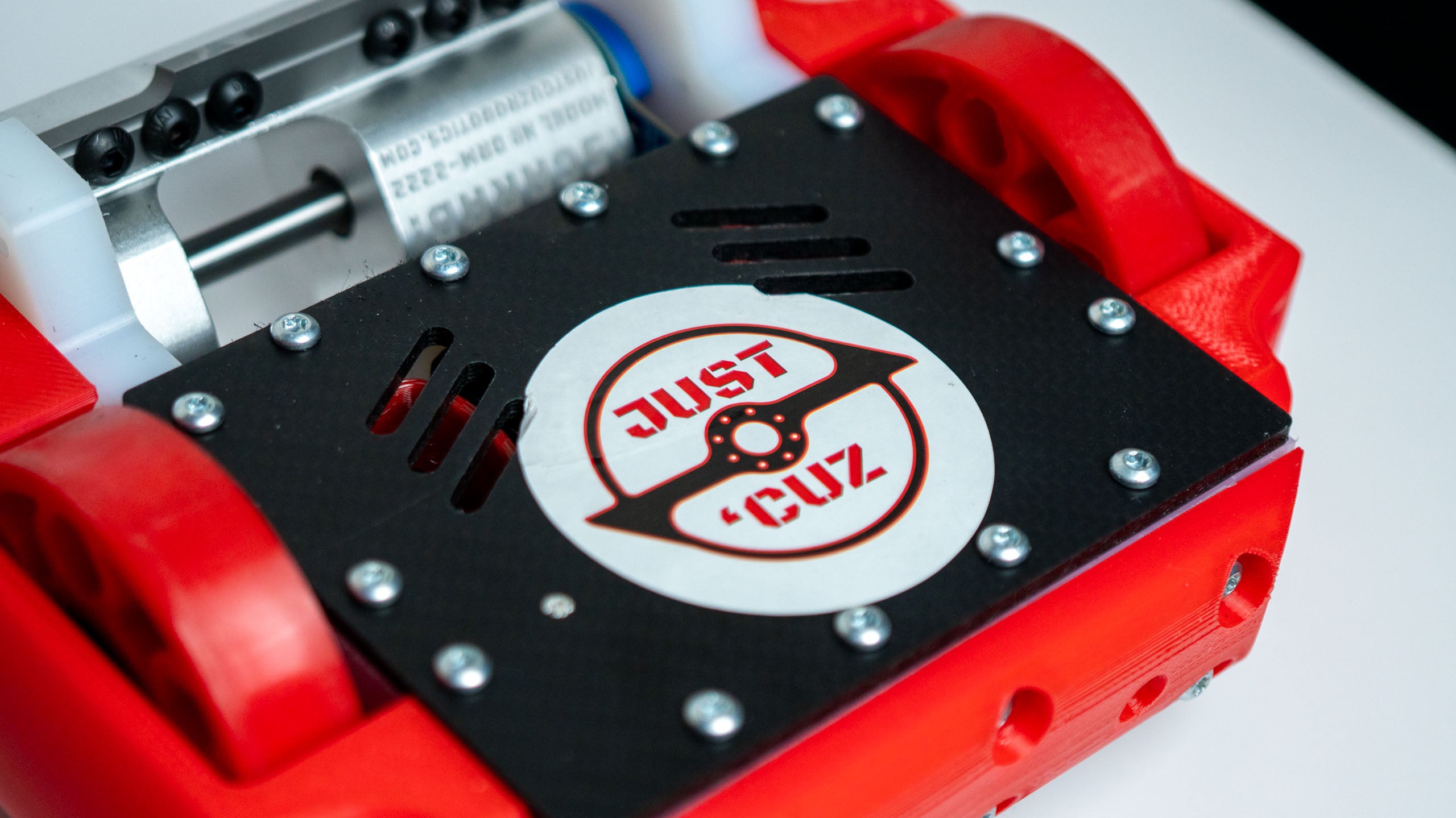

SRPP Composite Plates

The lid and base plates are high-strength SRPP composite, better known as Tegris, for an exceptional strength-to-weight ratio and serious impact resistance.

DRV Kit UHMW frame and SRPP Tegris composite plates
[ 05 ]
Full Spec Sheet
Weapon SCARAB Hubmotor Drum
Drum Dimensions 65 mm dia. (2.6 in) × 100 mm wide (3.9 in)
Drum Tip Speed Up to 260 mph
Peak Weapon Energy >950 Joules
Drive Speed 19 ft/sec
Drive Motors Blitz Lite 2850kv (×2)
Drive ESC Firmware AM32
Power System 4S (14.8V nominal)
Battery Custom 4S 1200mAh LiPo
Frame CNC Machined UHMW
Lid & Base Plates SRPP Composite (Tegris)
Wheels 70mm, Molded 50A Urethane Tire / Nylon Hub
Podium-Ready, Right Out Of The Box.

The DRV kit launches soon. Be first in line when it drops.

Interested? Click Here!

Our Products are Built For Combat

For years, Just ‘Cuz Robotics has provided the technical know-how needed to design, construct and safely test combat robots. Now we aim to be a leading combat robotic parts supplier. Take a look at all our battle-tested components!
